1-794231-0

点击放大查看

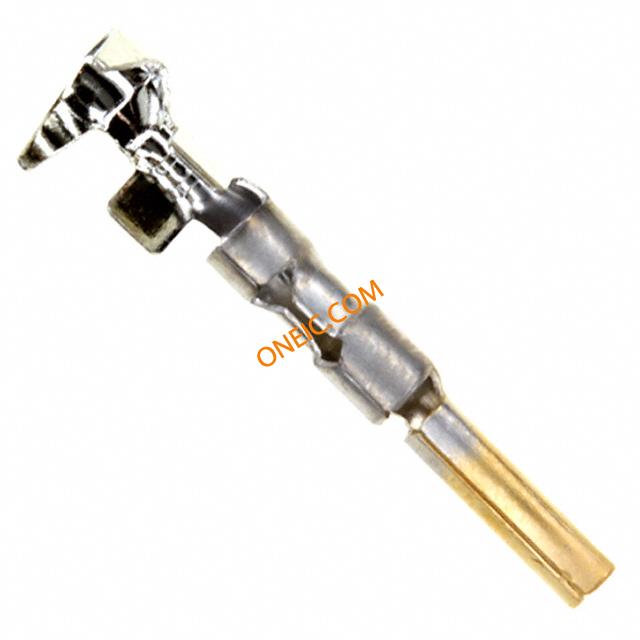

1-794231-0

制造商
TE Connectivity Ltd.
描述Contact SKT Crimp ST Cable Mount Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN SOCKET 16-20AWG GOLD CRIMP Pin & Socket Connectors SOCKET CON 20-16AWG Gold Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactMini-Universal MATE-N-LOK 2SocketPackaging Method = Loose PieceWire Range = 0.50-1.40² [20-16] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP MINIUMNL2LP,MINIUMNL2SCKT20-16AWGLPA MINI UMNL2 SCKT 20-16AWG LP A
分类
连接器解决方案接触件接触件（通用）
对参数有疑问？问 AI 助手

商业参数

产品类别Pin & Socket Connectors标准包装数量Bulk
工厂包装数量1000

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
UL档案号E28476CSA档案号LR 7189
标准编号CSA, ULCSA认证Certified
认证机构标志是

电气参数

额定电压600 V供电电压600
最大额定电流9.5 A

机械参数

镀层锡包装方式Bulk
电缆类型分离式导线导线线规16-20 AWG
端接方式Crimp触头类型Power
插针或插孔Socket连接器类型Connector Headers and PCB Receptacles
接触镀层Gold Over Nickel壳体镀层Nickel
插入件材料黄铜触头材料Brass
包装数量1000端接样式Crimp
第一触头极性Socket (Female)适用端子尺寸No
接触件端接Crimp绝缘直径2.01 – 3.2 mm [ .079 – .126 in ]
兼容外壳尺寸（如TM-700等）插头护套触点镀层亮光
接触件表面处理 - 配合锡法兰上方插针尺寸1 mm [ .039 in ]
接触镀层厚度30µin (0.76µm)线规或范围 - AWG20-16
护套（绝缘）厚度1.27 µm [ 50 µin ]

产品信息

备注这些端子仅可用于小型通用 MATE-N-LOK 2 插头或帽护套。连接器性别SKT
系列Mate-N-Lok II产品子类型Contacts
应用细节Power

环境参数

测试温度标准件 - 非灼热丝工作温度-55 – 105 °C [ -67 – 221 °F ]

文档与媒体

在线文档
1-794231-0?RQPN=1-794231-0

相关型号

794215-1

794215-1

te connectivity / amp

Conn Housing RCP 24 POS 4.14mm Crimp ST Individual .163" Centerline, 600 V, 9.5 A max. CONN CAP 24POS MINI UNIV-MATE 2 Pin & Socket Connectors CONN CAP 24 POS Conn Housing RCP 24 POS 4.14mm Crimp ST Individual Product Highlights:HousingHousing Type = Receptacle (Cap)Mini-Universal MATE-N-LOK 24.14 mm CenterlineDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP 24P MINI UMNL2 CAP HSG UL94V0

¥7.2760
详情
794205-1

794205-1

te connectivity / amp

Conn Housing RCP 15 POS 4.14mm Crimp ST Individual .163" Centerline, 600 V, 9.5 A max. CONN CAP 15POS MINI UNIV-MATE 2 Pin & Socket Connectors CONN CAP 15 POS Conn Housing RCP 15 POS 4.14mm Crimp ST Individual Product Highlights:HousingMini-Universal MATE-N-LOK 2Number of Circuits = 154.14 mm Centerline, MatrixMatrix Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP Crimp housing Pitch4.14 mm Poles 3 x 5 MATE-N-LOK II Mini Universal, 794205-1, TE Connectivity 15P MINI UMNL2 CAP HSG UL94V0

¥3.8080
详情
794241-1

794241-1

te connectivity / amp

Conn Housing PL 4 POS 4.14mm Crimp ST .163" Centerline, 600 V, 9.5 A max. CONN HOUS PLUG MATE-N-LOK 4CIRC Power to the Board 04P MINI PLUG UL94V2 Conn Housing PL 4 POS 4.14mm Crimp ST Product Highlights:HousingMini-Universal MATE-N-LOK 2Number of Circuits = 44.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP 04P MINI UMNL2 PLUG HSG UL94V2

¥4.2160
详情
794209-1

794209-1

te connectivity / amp

Conn Housing RCP 18 POS 4.14mm Crimp ST Individual .163" Centerline, 600 V, 9.5 A max. CONN CAP 18POS MINI UNIV-MATE 2 Pin & Socket Connectors CONN CAP 18 POS Conn Housing RCP 18 POS 4.14mm Crimp ST Individual Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP Crimp housing Pitch4.14 mm Poles 2 x 9 MATE-N-LOK II Mini Universal, 794209-1, TE Connectivity 18P MINI UMNL2 CAP HSG UL94V0

¥5.1680
详情
91594-1

91594-1

te connectivity / amp

General Hand Tool Used In The Aircraft And Military Industries Crimpers SDE SAHT 20-16 UMNL TOOL SAHT 16-20 AWG MINI UMNL CERTICRIMP 2 20-16 UMNL

¥4127.0560
详情
794239-1

794239-1

te connectivity / amp

Conn Housing PL 3 POS 4.14mm Crimp ST Cable Mount .163" Centerline, 600 V, 9.5 A max. CONN PLUG HOUSING 3POS IN-LING Pin & Socket Connectors 03P MINI UMNL2 PLUG HSG UL94V2 03P MINI UMNL2 PLUG HSG UL94V2 03P MINI UMNL2 PLUG HSG UL94V2 Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP MINI-UNIVERSALMATE-N-LOK03PMINIUMNL2PLUGHSGUL94V2

¥1.9040
详情
794211-1

794211-1

te connectivity / amp

Conn Housing RCP 20 POS 4.14mm Crimp ST Individual Pin & Socket Connectors CONN CAP 20 POS .163" Centerline, 600 V, 9.5 A max. CONN CAP 20POS MINI UNIV-MATE 2 Conn Housing RCP 20 POS 4.14mm Crimp ST Individual Product Highlights:HousingMini-Universal MATE-N-LOK 2Number of Circuits = 204.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP PLUG & SOCKET HOUSING, RECEPTACLE, NYLON Crimp housing Pitch4.14 mm Poles 2 x 10 MATE-N-LOK II Mini Universal, 794211-1, TE Connectivity 20P MINI UMNL2 CAP HSG UL94V0

¥5.8480
详情
794192-1

794192-1

te connectivity / amp

Conn Housing PL 8 POS 4.14mm ST Individual .163" Centerline, 600 V, 9.5 A max. CONN PLUG 8POS MINI UNIV-MATE 2 Housing,plug,mini Mate-n-lok,2 row,8 Way Pin & Socket Connectors 08P MINI UMNL2 PLUG Conn Housing PL 8 POS 4.14mm ST Individual Product Highlights:HousingMini-Universal MATE-N-LOK 2Number of Circuits = 84.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP Seri MINIUMNL2HOUSINGS,08PMINIUMNL2PLUGHSGUL94V0 TE Connectivity Mini-Universal MATE-N-LOK II 系列 2 行 4.14mm 节距 8 路 直 公 压接连接器外壳 08P MINI UMNL2 PLUG HSG UL94V0

¥3.6040
详情
90760-2

90760-2

te connectivity / amp

Specialty Hand Tools Easier On The Hand And Precise On The Crimp Punches & Dies PROCRIMP DIE MINI UNIV MNL PROCRIMP DIE MINI UNIV MNL DIE, MINI U/MNL, MINI CPC

¥1025.7120
详情
794186-1

794186-1

te connectivity / amp

Conn Housing PL 3 POS 4.14mm Crimp ST Individual .163" Centerline, 600 V, 9.5 A max. CONN PLUG 3POS MINI UNIV-MATE 2 Housing,plug,mini Mate-n-lok,1 row,3 Way Pin & Socket Connectors 3P MINI PLUG HSG Conn Housing PL 3 POS 4.14mm Crimp ST Individual Product Highlights:HousingMini-Universal MATE-N-LOK 2Number of Circuits = 34.14 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP PLUG & SOCKET HOUSING, PLUG, NYLON HOUSING,PLUG,MINI-UNIVERSALMATE-N-LOK2,3POSITION,FREEHANGING,IN-LINE Crimp housing Pitch4.14 mm Poles 1 x 3 MATE-N-LOK II Mini Universal, 794186-1, TE Connectivity TE Connectivity Mini-Universal MATE-N-LOK II 系列 4.14mm 节距 3 路 直 公 压接连接器外壳 03P MINI UMNL2 PLUG HSG UL94V0

¥2.0196
详情
90760-1

90760-1

te connectivity / amp

Connector Accessories Socket/Pin Die Set Tool Crimpers PROCRIMP TL W/DIE MI PROCRIMPER III W/DIE 16, 18-20 Service crimp tool,20-16 awg Receptacle/Tab Die Set Tool With Sde Die Set Crimper;Ratchet;20-16AWG;MiniUniversalMate-N-Lok;90760-2Die;PRO-CRIMPERIII TE Connectivity Pro-Crimper III 系列 Mini-Universal MATE-N-LOK Contacts 压接工具 , 适用于20 → 16 AWG 线规格 PROCRIMP TL W/DIE MIN UNIV MNL

¥1515.5840
详情
794184-1

794184-1

te connectivity / amp

Conn Housing PL 2 POS 4.14mm Crimp ST Individual .163" Centerline, 600 V, 9.5 A max. CONN PLUG 2POS MINI UNIV-MATE 2 Housing,plug,mini Mate-n-lok,1 row,2 Way Pin & Socket Connectors CONN PLUG 2 POS Conn Housing PL 2 POS 4.14mm Crimp ST Individual Product Highlights:HousingMini-Universal MATE-N-LOK 2Number of Circuits = 24.14 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP HOUSING IN-LINE, 2WAY HOUSING,PLUG,MINI-UNIVERSALMATE-N-LOK2,2POSITION,FREEHANGING,IN-LINE Crimp housing Pitch4.14 mm Poles 1 x 2 MATE-N-LOK II Mini Universal, 794184-1, TE Connectivity TE Connectivity Mini-Universal MATE-N-LOK II 系列 4.14mm 节距 2 路 直 公 压接连接器外壳 02P MINI UMNL2 PLUG HSG UL94V0

¥3.0736
详情
794185-1

794185-1

te connectivity / amp

Conn Housing RCP 2 POS 4.14mm Crimp ST Individual CONN CAP 2POS MINI UNIV-MATE 2 Housing,cap,mini Mate-n-lok,1 row,2 Way Pin & Socket Connectors CONN CAP 2 POS Conn Housing RCP 2 POS 4.14mm Crimp ST Individual Product Highlights:HousingMini-Universal MATE-N-LOK 2Number of Circuits = 24.14 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP PLUG AND SOCKET CONNECTOR HOUSING Housing,cap,miniMate-n-lok,1row,2Way Crimp housing Pitch4.14 mm Poles 1 x 2 MATE-N-LOK II Mini Universal, 794185-1, TE Connectivity TE Connectivity Mini-Universal MATE-N-LOK II 系列 4.14mm 节距 2 路 直 母 压接连接器外壳 02P MINI UMNL2 CAP HSG UL94V0

¥3.4680
详情
794201-1

794201-1

te connectivity / amp

Conn Housing RCP 12 POS 4.14mm Crimp ST Individual .163" Centerline, 600 V, 9.5 A max. CONN CAP 12POS MINI UNIV-MATE 2 Pin & Socket Connectors CONN CAP 12 POS 794201-1 Conn Housing RCP 12 POS 4.14mm Crimp ST Individual Product Highlights:HousingMini-Universal MATE-N-LOK 2Number of Circuits = 124.14 mm Centerline, MatrixMatrix Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP Crimp housing Pitch4.14 mm Poles 3 x 4 MATE-N-LOK II Mini Universal, 794201-1, TE Connectivity 12P MINI UMNL2 CAP HSG MATRIX

¥10.0742
详情
58707-2

58707-2

te connectivity / amp

PROCRIMP MINI-U-MNL2 DIE Punches & Dies PROCRIMP MINI-U-MNL2 DIE TOOL DIE SET ONLY 16-20 AWG

¥1858.4400
详情
58707-1

58707-1

te connectivity / amp

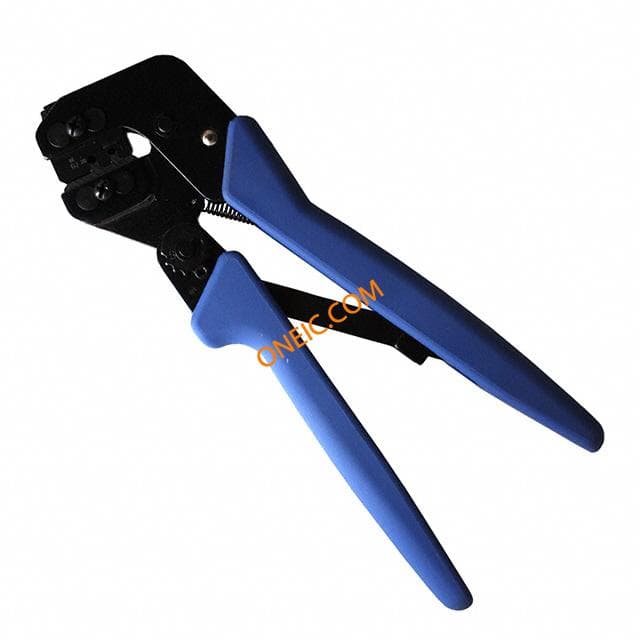

PROCRIMP MINI-U-MNL2 TL & DIE Crimpers PROCRIMP MINI-U-MNL2 TOOL AND DIE TOOL CRIMP W/DIE SET 16-20AWG
