点击放大查看

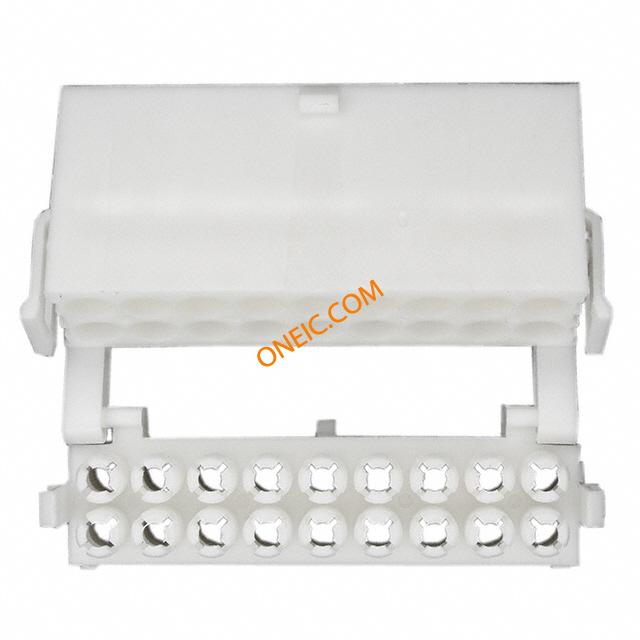

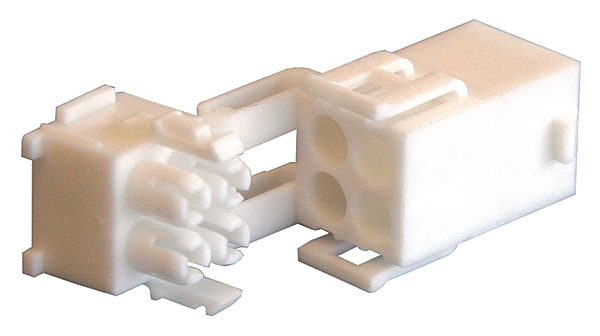

794209-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 18 POS 4.14mm Crimp ST Individual .163" Centerline, 600 V, 9.5 A max. CONN CAP 18POS MINI UNIV-MATE 2 Pin & Socket Connectors CONN CAP 18 POS Conn Housing RCP 18 POS 4.14mm Crimp ST Individual Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP Crimp housing Pitch4.14 mm Poles 2 x 9 MATE-N-LOK II Mini Universal, 794209-1, TE Connectivity 18P MINI UMNL2 CAP HSG UL94V0 |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 零件状态 | E28476 | 无铅定义 | Not relevant for lead free process |
| 标准编号 | UL | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| UL阻燃等级 | UL 94V-0 | 材料阻燃等级 | UL 94V-0 |
电气参数
| 额定电压 | 600 V | 极数 | 2 x 9 |
| 供电电压 | 600 | 最大额定电流 | 9.5 A |
| 最小供电电压 | 600VAC | 连接器类型 - 电压输入 | Mini-Universal MATE-N-LOK 2 |
机械参数
| 颜色 | White | 深度 | 24.51 mm |
| 间距 | 4.14 mm | 高度 | 14.5 mm |
| 密封型 | Not Sealed | 锁定类型 | Detent Lock |
| 包装方式 | Bulk | 排间距 | 0.163" (4.14mm) |
| 触头类型 | Male or Female | 外壳颜色 | White |
| 安装类型 | Straight | 连接器类型 | Receptacle |
| 接触镀层 | Without | 紧固类型 | Locking Ramp |
| 安装样式 | Free Hanging | 排数 | 2 |
| 封装形式 | Receptacle | 壳体材料 | Nylon |
| 总长度 | 43.54 mm | 包装数量 | One Piece Housing |
| 面板安装类型 | 不带 | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 触点数 | 18 |
| 接触件端接 | Crimp | 位数 | 18 |
| 兼容外壳尺寸（如TM-700等） | 小型通用 MATE-N-LOK 2 插头护套 | 中心触点材料 | 4.14 x 4.14 [.163 x .163] |
| 典型触点布局 | Double-Row | 接触镀层厚度 | 0.99 [0.039] |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | Mate-N-Lok II |
| 产品子类型 | Housing | 连接方式 | Wire-Board |
| 电路数 | 18 | 装配配置 | Without |
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -55...+105 °C |
文档与媒体
相关型号
1-794226-0
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN PIN 22-26AWG GOLD CRIMP Pin & Socket Connectors PIN CONTACT 26-22AWG Gold 1-794226-0 Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactMini-Universal MATE-N-LOK 2PinLoose PieceWire Range = 0.12-0.40² [26-22] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP CONTACT, PIN, 26-22AWG, CRIMP Crimp pin 9.5 A Male 26...22 AWG, 1-794226-0, TE Connectivity MINI UMNL2 PIN 26-22AWG LP LF
1-794230-0
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN PIN 16-20AWG GOLD CRIMP Pin & Socket Connectors PIN CONTACT 20-16AWG Gold Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactMini-Universal MATE-N-LOK 2PinPackaging Method = Loose PieceWire Range = 0.50-1.40² [20-16] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP MINI UMNL2 PIN 20-16AWG LP LF
794208-1
te connectivity / amp
Conn Housing PL 18 POS 4.14mm ST Individual Pin & Socket Connectors CONN PLUG 18 POS .163" Centerline, 600 V, 9.5 A max. CONN PLUG 18POS MINI UNIV-MATE 2 Conn Housing PL 18 POS 4.14mm ST Individual Product Highlights:HousingMini-Universal MATE-N-LOK 2Number of Circuits = 184.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP Crimp housing Pitch4.14 mm Poles 2 x 9 MATE-N-LOK II Mini Universal, 794208-1, TE Connectivity 18P MINI UMNL2 PLUG HSG UL94V0
794228-3
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN PIN 18-22AWG GOLD CRIMP Pin & Socket Connectors MINI UMNL2 PIN 22-18 AWG AU LP .163" Centerline, 600 V, 9.5 A max. Product Highlights:ContactMini-Universal MATE-N-LOK 2PinPackaging Method = Loose PieceWire Range = 0.30-0.90² [22-18] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP

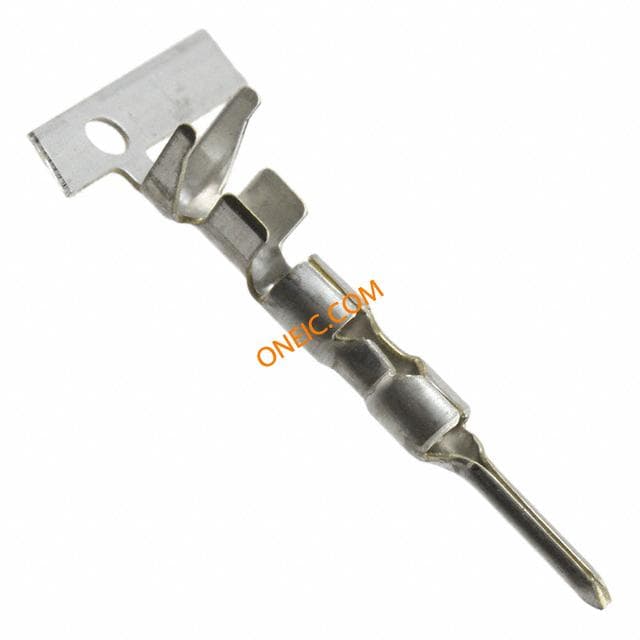

794220-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONN PIN MINI-UMNL2 22-18AWG TIN Mate-n-lok,contact,pin,0.30-0.90mm² Power to the Board UMNL SOK 20-14 .0126 Reel of 4500 Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactMini-Universal MATE-N-LOK 2PinPackaging Method = StripWire Range = 0.30-0.90² [22-18] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP Mate-n-lok,contact,pin,0.30-0.90mm² Miniature Universal MATE-N-LOK 22-18 AWG Wire to Cable Crimp Pin Contact TE Connectivity Mini-Universal MATE-N-LOK II 系列 公 压接接线端子, 压接, 镀锡镀镍触点 MINI UMNL2 PIN 22-18 AWG SN
1-794222-0
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONN PIN 16-20AWG MINI-U M-N-L2 Pin & Socket Connectors PIN 16-20 AWG Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactMini-Universal MATE-N-LOK 2PinPackaging Method = StripWire Range = 0.50-1.40² [20-16] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP CONN PIN 16-20AWG MINI UMNL2 PIN 20-16AWG AU LF

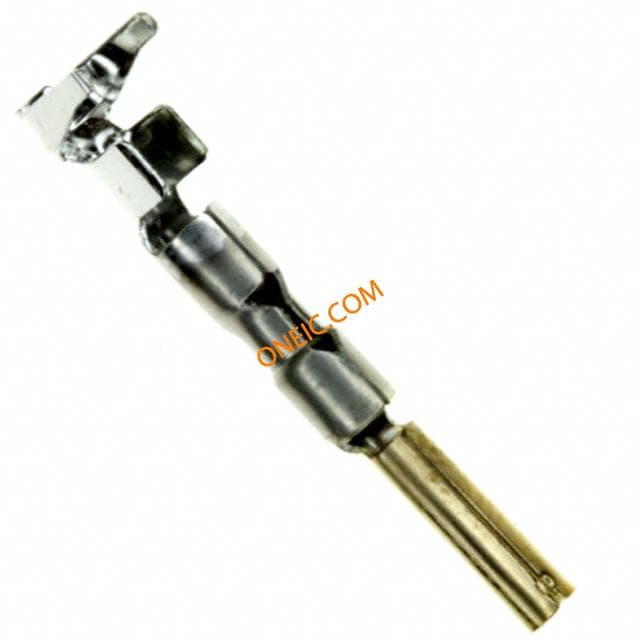

794229-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN SOCKET 18-22AWG GOLD CRIMP Power to the Board SOCKET CONTACT 22-18 2000 Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactMini-Universal MATE-N-LOK 2SocketLoose PieceWire Range = 0.30-0.90² [22-18] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP MINI UMNL2 SOK 22-18 AWG AU LP
1-794221-0
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONN SCKT 18-22AWG MINI-U M-N-L2 Pin & Socket Connectors MUMNL2 SKT 22-18 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactMini-Universal MATE-N-LOK 2SocketPackaging Method = StripWire Range = 0.30-0.90² [22-18] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP MINI UMNL2 SOK 22-18AWG AU LF
794221-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip Power to the Board SOCKET CONTACT 22-18 REEL .163" Centerline, 600 V, 9.5 A max. CONN SCKT MNI-UMNL2 22-18AWG TIN Contact female 22-18 AWG Mini UMNL2 Power to the Board UMNL SPLIT PIN Reel of 4500 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactMini-Universal MATE-N-LOK 2SocketPackaging Method = StripWire Range = 0.30-0.90² [22-18] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP CONTACTFEMALE22-18AWG TE Connectivity Mini-Universal MATE-N-LOK II 系列 母 压接接线端子, 压接, 镀锡触点 MINI UMNL2 SOK 22-18 AWG SN
794225-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN SOCKET 26-30AWG GOLD CRIMP
1-794217-0
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONN SOCKET 26-30AWG MINI U MNL Pin & Socket Connectors MINI UMNL2 SOK 30-26 Contact SKT Crimp ST Cable Mount Strip Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP
1-794216-0
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONN PIN 26-30AWG MINI-U M-N-L Pin & Socket Connectors MINI UMNL2 PIN 30-26 MINI UMNL2 PIN 30-26AWG AU LF

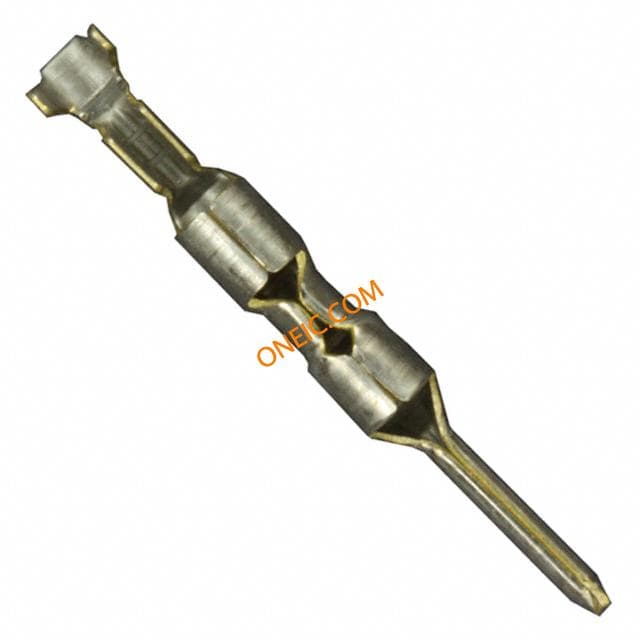

794224-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN PIN 26-30AWG TIN CRIMP Contact Crimp Pin 30-26AWG Mate-n-Lok Pin & Socket Connectors PIN CONTACT 30-26AWG Tin 794224-1 Contact PIN Crimp ST Cable Mount Loose Piece Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP Crimp pin 9.5 A Male 30...26 AWG, 794224-1, TE Connectivity TE Connectivity Mini-Universal MATE-N-LOK II 系列 公 压接接线端子, 压接, 镀锡触点 MINI UMNL2 PIN 30-26 AWG SN LP
1-794219-0
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONN SCKT 22-26AWG MINI-U M-N-L2 Pin & Socket Connectors SCKT 26-30 AWG 1-794219-0 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactMini-Universal MATE-N-LOK 2SocketStripWire Range = 0.05-0.15 [30-26] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP MINI UNML2 SOK 26-22 AWG AU LF
1-794231-0
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN SOCKET 16-20AWG GOLD CRIMP Pin & Socket Connectors SOCKET CON 20-16AWG Gold Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactMini-Universal MATE-N-LOK 2SocketPackaging Method = Loose PieceWire Range = 0.50-1.40² [20-16] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP MINIUMNL2LP,MINIUMNL2SCKT20-16AWGLPA MINI UMNL2 SCKT 20-16AWG LP A

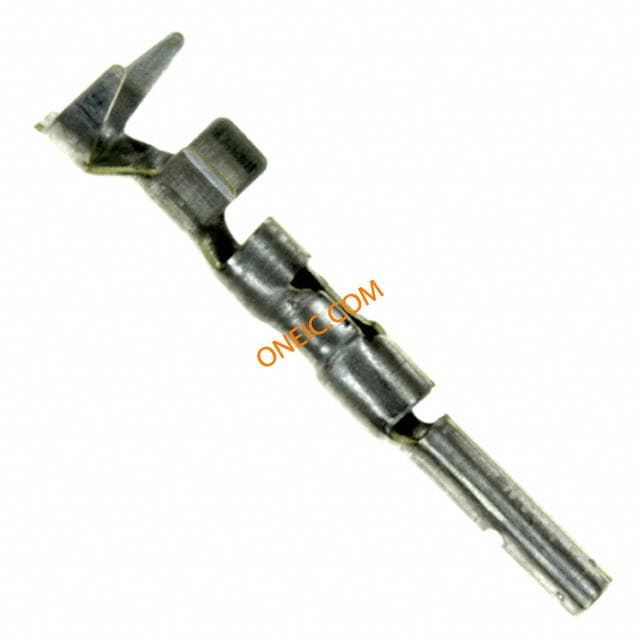

794231-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN SOCKET 16-20AWG TIN CRIMP Contact,crimp,rec,mini Matenlok,20-16awg Pin & Socket Connectors SOCKET CON 20-16AWG Tin Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactMini-Universal MATE-N-LOK 2SocketLoose PieceWire Range = 0.50-1.40² [20-16] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP CRIMP SOCKET, 0.5-1.2MM MINIUMNL2LP,MINIUMNL2SCKT20-16AWGLPSN Miniature Universal MATE-N-LOK II 20-16 AWG Wire to Cable Crimp Socket Contact TE Connectivity Mini-Universal MATE-N-LOK II 系列 母 压接接线端子, 压接, 镀锡触点 MINI UMNL2 SCKT 20-16AWG LP SN
794217-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONN SOCKET 30-26AWG TIN Pin & Socket Connectors MINI UMNL2 SOK Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactMini-Universal MATE-N-LOK 2SocketStripWire Range = 0.05-0.15 [30-26] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP MINI UMNL2 SOK 30-26 AWG SN
1-794220-0
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Pin & Socket Connectors MINI UMNL2 PIN 22-18 .163" Centerline, 600 V, 9.5 A max. CONN PIN 18-22AWG MINI-U M-N-L2 1-794220-0 Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactMini-Universal MATE-N-LOK 2PinStripWire Range = 0.30-0.90² [22-18] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP MINI UMNL2 PIN 22-18 AWG AU

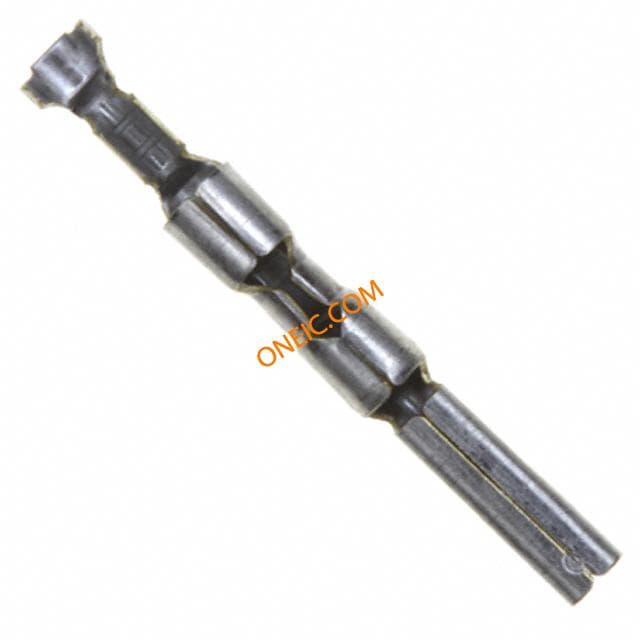

794225-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN SOCKET 26-30AWG TIN CRIMP Pin & Socket Connectors SOCKET CON 30-26AWG Tin Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactMini-Universal MATE-N-LOK 2SocketLoose PieceWire Range = 0.05-0.15 [30-26] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP Series Crimp socket 9.5 A Female 30...26 AWG, 794225-1, TE Connectivity MINI UMNL2 SOK 30-26 AWG SN LP

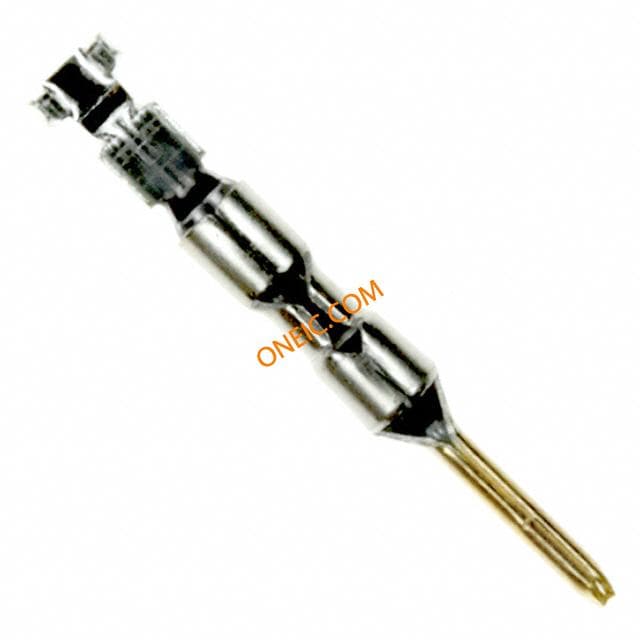

794226-3
