点击放大查看

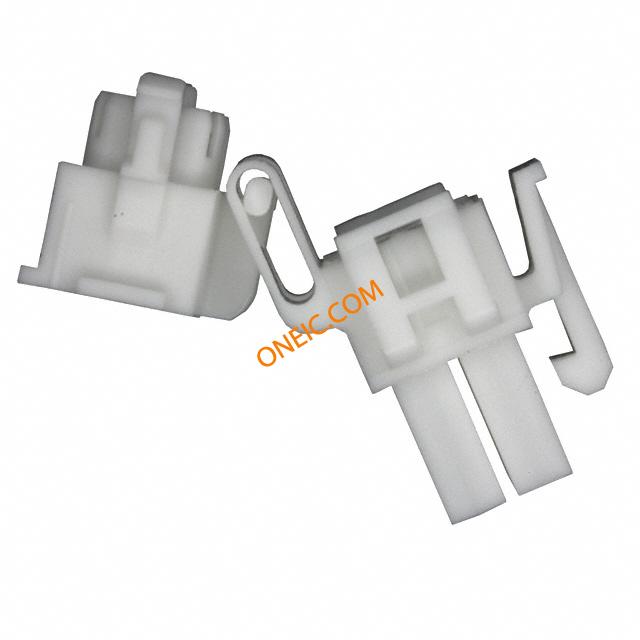

794188-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 4 POS 4.14mm ST Individual .163" Centerline, 600 V, 9.5 A max. CONN PLUG 4POS MINI UNIV-MATE 2 Housing,plug,mini Mate-n-lok,2 row,4 Way Pin & Socket Connectors PLUG HOUSE 4P Conn Housing PL 4 POS 4.14mm ST Individual Product Highlights:HousingMini-Universal MATE-N-LOK 2Number of Circuits = 44.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP HOUSING IN-LINE, 4WAY CONNECTOR,SOFTSHELL,MINI-UNIVERSALMATE-N-LOK,4POSITION,NYLON,WHITE Crimp housing Pitch4.14 mm Poles 2 x 2 MATE-N-LOK II Mini Universal, 794188-1, TE Connectivity TE Connectivity Mini-Universal MATE-N-LOK II 系列 2 行 4.14mm 节距 4 路 直 公 压接连接器外壳 04P MINI UMNL2 PLUG HSG UL94V0 |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 600 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | 认证机构 | :CSA, UL, VDE |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 测试电压 | :1500V | 额定电压 | 600 V |
| 供电电压 | 600 | 最大额定电流 | 9.5 A |
| 最大触点电流 | :10.5A | 绝缘电阻 | :100Mohm |
| 最小供电电压 | 600VAC | 连接器类型 - 电压输入 | Mini-Universal MATE-N-LOK 2 |
机械参数
| 颜色 | White | 深度 | 23.75mm |
| 间距 | 4.14 mm | 宽度 | 17.25mm |
| 高度 | 17.25 mm | 长度 | 14.5mm |
| 重量 | 0.0167 | 锁定类型 | Latch |
| 包装方式 | Bulk | 排间距 | 0.163" (4.14mm) |
| 触头类型 | Male or Female | 外壳颜色 | White |
| 安装类型 | Straight | 连接器类型 | Plug |
| 紧固类型 | Latch Lock | 安装样式 | Free Hanging |
| 排数 | 2 | 壳体材料 | Nylon |
| 总长度 | 14.5 mm | 包装数量 | One Piece Housing |
| 端接样式 | Crimp | 第一触头极性 | Pin (Male) |
| 连接器颜色 | :White | 触点数 | 4 |
| 接触件端接 | Crimp | 位数 | 4 |
| 中心触点材料 | 4.14 x 4.14 [.163 x .163] | 典型触点布局 | Double-Row |
| 接触镀层厚度 | 0.99 [0.039] | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 系列 | MATE-N-LOK |
| 产品子类型 | Housing | 电路数 | 4 |
| 适用产品/相关产品 | Centerline Soft Shell Pin & Socket Connector | ||
环境参数
| 工作温度 | -20C to 105C | ||
文档与媒体
相关型号
1-770174-1
te connectivity / amp
Conn Power HDR 4 POS 4.14mm Solder ST Thru-Hole 4 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HEADER 4POS VERT .163 GOLD TE Connectivity MATE-N-LOK Series 4.14mm Pitch 4 Way Straight Heavy Duty Power Connector, Solder Termination, 9.5A Headers & Wire Housings HEADER 4 POS GOLD DUAL ROW Conn Power HDR 4 POS 4.14mm Solder ST Thru-Hole 4 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 44.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP PLUG & SOCKET CONN, PLUG, 4POS, 4.14MM CONNECTOR,SOFTSHELL,MINI-UNIVERSALMATE-N-LOK,4POSITION,NYLON,WHITE,PCB Pin header Pitch4.14 mm Poles 2 x 2 straight MATE-N-LOK, 1-770174-1, TE Connectivity TE Connectivity Mini-Universal Mate-N-Lok 系列 4.14mm节距 4路 直 PCB 针座, 焊接端接, 9.5A , 通孔 04P MINI UMNL ASSY VO SNAU LF
770968-1
te connectivity / amp
Conn Power PIN 4 POS 4.14mm Solder RA Thru-Hole 4 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HEADER 4POS RTANG .163 TIN Pin & Socket Connectors 4P R/A HEADER ASSY MINI UMNL Conn Power PIN 4 POS 4.14mm Solder RA Thru-Hole 4 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 44.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP 04P MINI UMNL R/A HDR ASSY SN
172330-1
te connectivity / amp
Conn Housing RCP 4 POS 4.2mm Crimp ST Individual .163" Centerline, 600 V, 9.5 A max. CONN RECEPT/CAP 4POS MATE-N-LOK Plug housing 4 way Mate-n-Lok Pin & Socket Connectors MINI CAP HSG 4P NAT Conn Housing RCP 4 POS 4.2mm Crimp ST Individual Product Highlights:HousingMini-Universal MATE-N-LOKNumber of Circuits = 44.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP SOCKET HOUSING, 4WAY Mini-UniversalMate-N-Lok;4PositionCap;UL94V-2;Natural Plug/socket; wire-wire; male/female; w/o terminals; 4.14mm; PIN:4 Socket housing Pitch4.14 mm Poles 2 x 2 Double row / straight / for panel mount / accepts male or female contacts MATE-N-LOK Mini Universal, 172330-1, TE Connectivity TE Connectivity Mini-Universal Mate-N-Lok 系列 2 行 4.2mm 节距 4 路 直 母 压接连接器外壳 MINI UNIVERSAL MATE-N-LOK CAP HOUSING 4P
1-770174-0
te connectivity / amp
Conn Power HDR 4 POS 4.14mm Solder ST Thru-Hole 4 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HEADER 4POS VERT .163 TIN TE Connectivity MATE-N-LOK Series 4.14mm Pitch 4 Way Straight Heavy Duty Power Connector, Solder Termination, 9.5A Headers & Wire Housings HEADER 4 POS TIN DUAL ROW Conn Power HDR 4 POS 4.14mm Solder ST Thru-Hole 4 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 44.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP HOUSING VERTICAL, 4WAY Pin header, straight Pitch4.14 mm Poles 2 x 2 straight MATE-N-LOK Mini Universal, 1-770174-0, TE Connectivity TE Connectivity Mini-Universal Mate-N-Lok 系列 4.14mm节距 4路 直 PCB 针座, 焊接端接, 9.5A , 通孔 04P MINI-UMNL ASSY V0 SNNI*
1-770874-0
te connectivity / amp
Conn Power HDR 4 POS 4.14mm Solder ST Thru-Hole 4 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HEADER 4POS VERT .163 TIN Headers & Wire Housings HEADER 4 POS TIN DUAL ROW Conn Power HDR 4 POS 4.14mm Solder ST Thru-Hole 4 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 44.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP PLUG & SOCKET CONN, HEADER, 4POS, 4.14MM MINI-UNIVM-N-LHDRS,04PMINIUMNLHDRASSYSNLF Pin header Pitch4.14 mm Poles 2 x 2 straight MATE-N-LOK Mini Universal, 1-770874-0, TE Connectivity 04P MINI UMNL HDR ASSY SN LF
1-770968-1
te connectivity / amp
Conn Power HDR 4 POS 4.14mm Solder RA Thru-Hole 4 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HEADER 4POS RTANG .163 AU TE Connectivity MATE-N-LOK Series 4.14mm Pitch 4 Way Right Angle Heavy Duty Power Connector, Solder Termination, 9.5A Headers & Wire Housings HEADER 4 POS R/A GOLD DUAL ROW Conn Power HDR 4 POS 4.14mm Solder RA Thru-Hole 4 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 44.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP PLUG & SOCKET CONN, PLUG, 4POS, 4.14MM MINI-UNIVM-N-LHDRS,04PMINIUMNLR/AHDRASSYLF Pin header Pitch4.14 mm Poles 2 x 2 90° MATE-N-LOK Mini Universal, 1-770968-1, TE Connectivity TE Connectivity Mini-Universal Mate-N-Lok 系列 4路 4.14mm节距 直角 PCB 针座 , 焊接端接, 9.5A, 通孔 04P MINI UMNL R/A HDR ASSY LF
1-172159-2
te connectivity / amp
Conn Housing RCP 4 POS 4.2mm Crimp ST Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN CAP RCPT 4POS MINI-UMNL RED Pin & Socket Connectors MINI CAP 4P RED Conn Housing RCP 4 POS 4.2mm Crimp ST Loose Piece Product Highlights:HousingMini-Universal MATE-N-LOKNumber of Circuits = 44.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP MINI UNIVERSAL M-N-L CAP 4P

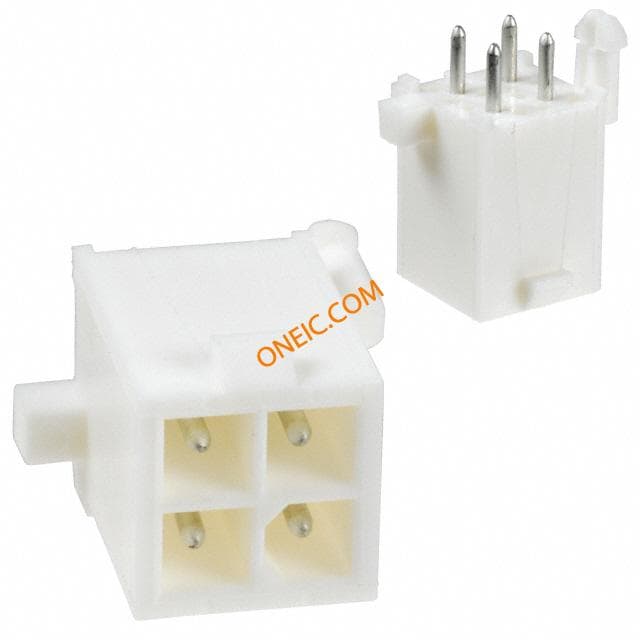

770174-1
te connectivity / amp
Conn Power HDR 4 POS 4.14mm Solder ST Thru-Hole 4 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HEADER 4POS VERT .163 TIN Pin & Socket Connectors 4P MINI UMNL ASSY Conn Power HDR 4 POS 4.14mm Solder ST Thru-Hole 4 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 44.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP MINI-UNIVM-N-LHDRS,04PMINI-UMNLASSYV0SNNI* Socket; wire-board; male; 4.14mm; PIN:4; tinned; Pin layout:2x2 04P MINI-UMNL ASSY V0 SNNI*
1-794222-0
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONN PIN 16-20AWG MINI-U M-N-L2 Pin & Socket Connectors PIN 16-20 AWG Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactMini-Universal MATE-N-LOK 2PinPackaging Method = StripWire Range = 0.50-1.40² [20-16] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP CONN PIN 16-20AWG MINI UMNL2 PIN 20-16AWG AU LF
770874-1
te connectivity / amp
Conn Power PIN 4 POS 4.14mm Solder ST Thru-Hole 4 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HEADER 4POS VERT .163 TIN Pin & Socket Connectors VERT PCB PIN HDR 4P Conn Power PIN 4 POS 4.14mm Solder ST Thru-Hole 4 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 44.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP 04P MINI UMNL HDR ASSY SN
1-770874-1
te connectivity / amp
Conn Power PIN 4 POS 4.14mm Solder ST Thru-Hole 4 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HEADER 4POS VERT .163 AU Header 4 way Mini Universal Mate-n-Lok Headers & Wire Housings HEADER 4 POS GOLD DUAL ROW Conn Power PIN 4 POS 4.14mm Solder ST Thru-Hole 4 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 44.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP MINI-UNIVM-N-LHDRS,04PMINIUMNLHDRASSYAULF Pin header Pitch4.14 mm Poles 2 x 2 straight MATE-N-LOK Mini Universal, 1-770874-1, TE Connectivity TE Connectivity Mini-Universal Mate-N-Lok 系列 4.14mm节距 4路 (2排) 直 PCB 针座, 焊接端接, 9.5A , 通孔 04P MINI UMNL HDR ASSY AU LF

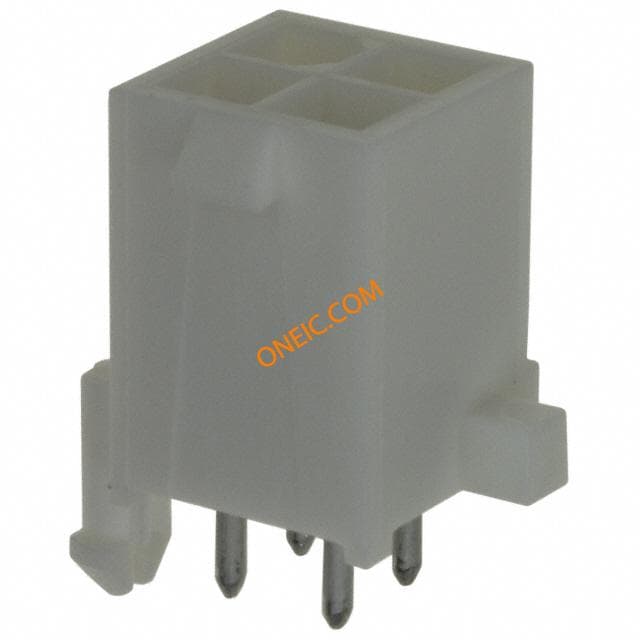

770874-2
te connectivity / amp
Conn Power PIN 4 POS 4.14mm Solder ST Thru-Hole 4 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HEADER 4POS VERT .163 AU Pin & Socket Connectors CONN HEADER 4POS VERT .163 AU Conn Power PIN 4 POS 4.14mm Solder ST Thru-Hole 4 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 44.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP 04P MINI UMNL HDR ASSY VO AU
172159-1
te connectivity / amp
Conn Housing RCP 4 POS 4.2mm Crimp ST Cable Mount Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN CAP 4POS MINI UNIV-MATE 4 way cable/panel socket Min Mate-N-Lok Pin & Socket Connectors 4P UNIV M-N-L CAP Conn Housing RCP 4 POS 4.2mm Crimp ST Cable Mount Loose Piece Product Highlights:HousingMini-Universal MATE-N-LOKNumber of Circuits = 44.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP HOUSING, RECEPTACLE, DUAL ROW, 4WAY PLUG & SOCKET HOUSING, RECEPTACLE, NYLON Connector,SoftShell;4;600VAC;Receptacle(Cap);Double-Row;Nylon;Natural Plug; wire-wire; male; 4.14mm; PIN:4; UL94V-2; Pin layout:2x2; 250V Socket housing 4.14 mm Poles 2 x 2 Double row / straight / for panel mount / accepts male or female contacts MATE-N-LOK Mini Universal, 172159-1, TE Connectivity TE Connectivity Mini-Universal Mate-N-Lok 系列 2 行 4.2mm 节距 4 路 直 母 压接连接器外壳 4 CIR UNIV M-N-L CAP
1-794217-0
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONN SOCKET 26-30AWG MINI U MNL Pin & Socket Connectors MINI UMNL2 SOK 30-26 Contact SKT Crimp ST Cable Mount Strip Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP
1-770968-0
te connectivity / amp
Conn Power HDR 4 POS 4.14mm Solder RA Thru-Hole 4 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HEADER 4POS RTANG .163 TIN TE Connectivity MATE-N-LOK Series 4.14mm Pitch 4 Way Right Angle Heavy Duty Power Connector, Solder Termination, 9.5A Headers & Wire Housings HEADER 4 POS R/A TIN DUAL ROW Conn Power HDR 4 POS 4.14mm Solder RA Thru-Hole 4 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 44.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP HEADER, RIGHT ANGLE, DUAL ROW, 4 WAY HEADERASSEMBLY,SOFTSHELL,MINI-UNIVERSALMATE-N-LOK,4POSITION,RIGHTANGLE Pin header Pitch4.14 mm Poles 2 x 2 90° MATE-N-LOK Mini Universal, 1-770968-0, TE Connectivity TE Connectivity Mini-Universal Mate-N-Lok 系列 4.14mm节距 4路 直角 PCB 针座, 焊接端接, 9.5A , 通孔 04P MINI UMNL R/A HDR ASSY SN
770968-2
te connectivity / amp
Conn Power PIN 4 POS 4.14mm Solder RA Thru-Hole 4 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HEADER 4POS RTANG .163 AU Pin & Socket Connectors HEADER ASSY 4P R/A 2000 Conn Power PIN 4 POS 4.14mm Solder RA Thru-Hole 4 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 44.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP MINI-UNIVM-N-LHDRS,04PMINIUMNLR/AHDRASSYAU 04P MINI UMNL R/A HDR ASSY AU

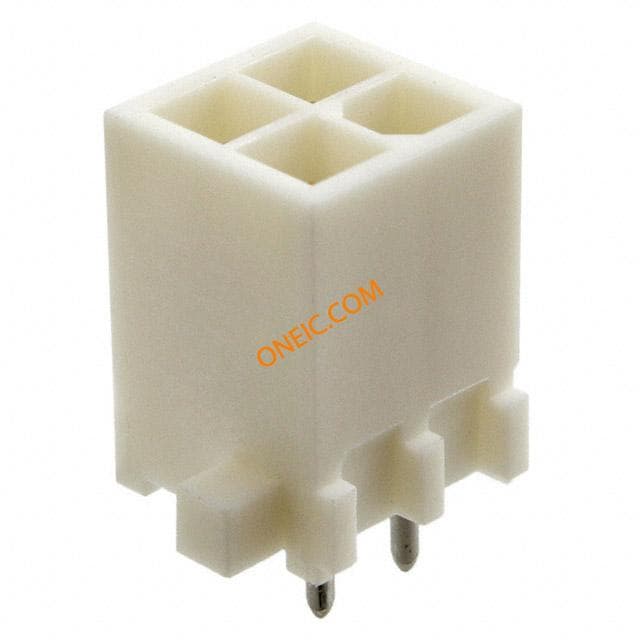

770174-2
