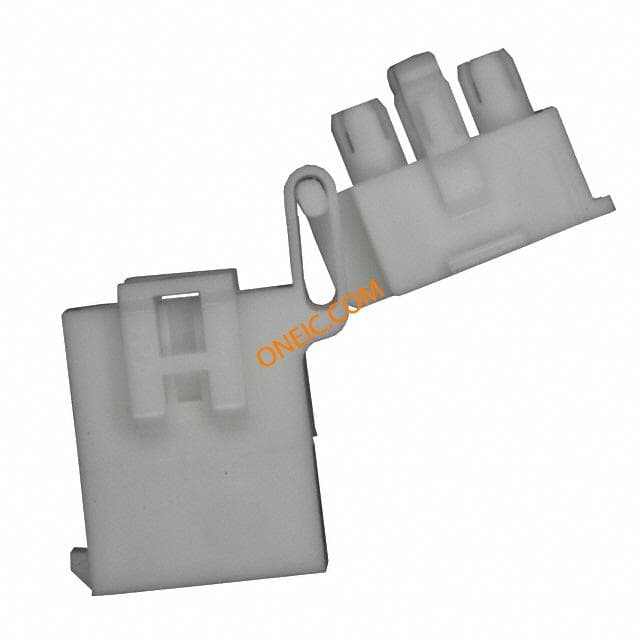

794239-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 3 POS 4.14mm Crimp ST Cable Mount .163" Centerline, 600 V, 9.5 A max. CONN PLUG HOUSING 3POS IN-LING Pin & Socket Connectors 03P MINI UMNL2 PLUG HSG UL94V2 03P MINI UMNL2 PLUG HSG UL94V2 03P MINI UMNL2 PLUG HSG UL94V2 Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP MINI-UNIVERSALMATE-N-LOK03PMINIUMNL2PLUGHSGUL94V2 |
| 分类 |
商业参数
| 标准包装规格 | 700 | 标准包装数量 | Bulk |
| 工厂包装数量 | 700 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 零件状态 | E28476 | 无铅定义 | Not relevant for lead free process |
| 标准编号 | CSA, UL | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| UL阻燃等级 | UL 94V-2 | 材料阻燃等级 | UL 94V-2 |
电气参数
| 供电电压 | 600 | 连接器类型 - 电压输入 | Mini-Universal MATE-N-LOK 2 |
机械参数
| 颜色 | Natural | 间距 | 4.14 mm |
| 密封型 | Not Sealed | 锁定类型 | Latch |
| 包装方式 | Bulk | 排间距 | 0.163" (4.14mm) |
| 触头类型 | Male or Female | 安装类型 | Straight |
| 连接器类型 | Plug | 接触镀层 | Without |
| 紧固类型 | Latch Lock | 排数 | 1 |
| 封装形式 | Plug | 壳体材料 | Nylon |
| 包装数量 | One Piece Housing | 面板安装类型 | 不带 |
| 端接样式 | 插座 | 触点数 | 3 |
| 接触件端接 | Crimp | 位数 | 3 |
| 兼容外壳尺寸（如TM-700等） | 印刷电路板板端连接器头 | 中心触点材料 | 4.14 [.163] |
| 典型触点布局 | In-Line | 接触镀层厚度 | 0.99 [0.039] |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 产品子类型 | Housing |
| 电路数 | 3 | 装配配置 | Without |
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -55 – 105 °C [ -67 – 221 °F ] |
文档与媒体
