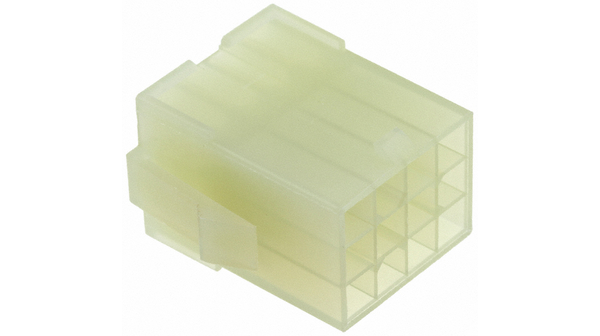

点击放大查看
172333-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 12 POS 4.2mm Crimp ST Individual .163" Centerline, 600 V, 9.5 A max. CONN RCPT/CAP 12POS MINI-UMNL Pin & Socket Connectors MINI UNIVERSAL M-N-L Conn Housing RCP 12 POS 4.2mm Crimp ST Individual Product Highlights:HousingMini-Universal MATE-N-LOKNumber of Circuits = 124.14 x 4.14 mm Centerline, MatrixMatrix Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP SOCKET HOUSING, 12WAY MINI-UM-N-LHSG,MINIUNIVERSALM-N-LHOUSING Plug/socket; wire-wire; male/female; w/o terminals; 4.14mm; 600V Socket housing Pitch4.14 mm Poles 3 x 4 Multi row / straight / for panel mount / accepts male or female contacts MATE-N-LOK Mini Universal, 172333-1, TE Connectivity MINI UNIVERSAL M-N-L HOUSING |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 500 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | 认证机构 | :UL 94V-2 |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-2 |
电气参数
| 额定电压 | 600 V | 供电电压 | 600 |
| 工作电压 | :300V | 最大额定电流 | 9.5 A |
| 最小供电电压 | 600VDC/600VAC | 连接器类型 - 电压输入 | Mini-Universal MATE-N-LOK |
机械参数
| 颜色 | Natural | 深度 | 23.7 mm |
| 间距 | 4.2 mm | 高度 | 16 mm |
| 重量 | 0.004 | 材料（通用） | :Polyamid 6.6 |
| 锁定类型 | Positive Lock | 包装方式 | Bulk |
| 导线线规 | 16-30 AWG | 排间距 | 0.163" (4.14mm) |
| 触头类型 | Male or Female | 柱间距 | 4.14 x 4.14 [.163 x .163] |
| 外壳颜色 | Natural | 安装类型 | Straight |
| 释放力 | :0.5N | 连接器类型 | Receptacle |
| 紧固类型 | Locking Ramp | 安装样式 | Free Hanging, Panel |
| 排数 | 3 | 封装形式 | :Matrix |
| 插入力 | :4N | 锁定特性 | lock |
| 壳体材料 | Nylon | 总长度 | 26.2 mm |
| 包装数量 | One Piece Housing | 主要材料 | InterconnectSystem |
| 连接器 - 电缆 | plug/socket | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 连接器颜色 | :Clear |
| 触点数 | 12 | 接触件端接 | Crimp |
| 位数 | 12 | 典型触点布局 | Matrix |
| 接触镀层厚度 | 0.99 [0.039] | 线规或范围 - AWG | :26AWG |
| 第一连接器安装特征 | 3x5 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | :Mini-Universal MATE-N-LOK |
| 制造商全称 | MATE-N-LOK | 产品子类型 | Housing |
| 适配器系列 | Mini Universal MATE-N-LOK | 单元数量 | 1 |
| 模块/板类型 | No | 电路数 | 12 |
环境参数
| 工作温度 | -20C to 105C | ||
