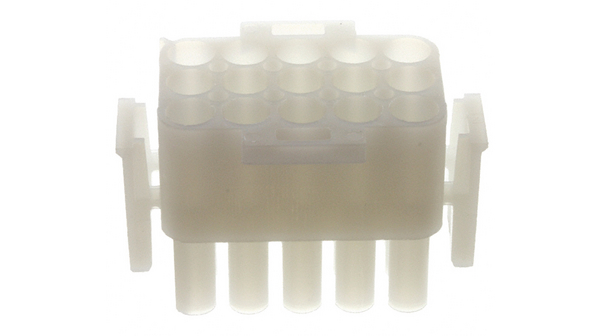

1-480710-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 15 POS 6.35mm Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 15POS 94V-2 UNI-MATE Housing,plug,free hanging,15way Pin & Socket Connectors PLUG HOUSE 15 POS Conn Housing PL 15 POS 6.35mm Crimp ST Cable Mount Loose Piece Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 15Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP PLUG HOUSING, 15WAY Connector,SoftShell;UniversalMATE-N-LOK;15;Plug;Nylon;Black;19A Plug; wire-board; male/female; w/o terminals; 6.35mm; PIN:15; 600V Crimp housing Pitch6.35 mm Poles 15 MATE-N-LOK Universal, 1-480710-0, TE Connectivity 15P UMNL PLUG HSG NATL |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 材料阻燃等级 | :UL94V-2 | ||
电气参数
| 额定电压 | 600 V | 工作电压 | :600V |
| 接触电阻 | :3.5mohm | 介电强度 | :5000V |
| 最大额定电流 | 19 A | 绝缘电阻 | :1000Mohm |
| 最小供电电压 | 600VAC | 连接器类型 - 电压输入 | w/o terminals |
机械参数
| 颜色 | Natural | 深度 | 27.43mm |
| 间距 | 6.35 mm | 宽度 | 27.43mm |
| 高度 | 27.43 mm | 重量 | 0.008 |
| 材料（通用） | :Nylon | 包装方式 | Bulk |
| 导线线规 | 10-30 AWG | 排间距 | 0.250" (6.35mm) |
| 触头类型 | Male or Female | 柱间距 | 6.35mm |
| 外壳颜色 | Natural | 安装类型 | Straight |
| 连接器类型 | Plug | 紧固类型 | Latch Lock |
| 安装样式 | Free Hanging | 排数 | 3 |
| 壳体材料 | Nylon | 包装数量 | 1 |
| 连接器 - 电缆 | plug | 端接样式 | Crimp |
| 第一触头极性 | Pin (Male) | 连接器颜色 | :Clear |
| 触点数 | 15 | 接触件端接 | Crimp |
| 位数 | 15 | 第一连接器安装特征 | 3x5 |
产品信息
| SPG | 1 | 备注 | Contacts Not Provided |
| 类型 | Housing | 连接器性别 | PL |
| 系列 | MATE-N-LOK | 已删除 | Compliant |
| 产品子类型 | Receptacle Housings | 适配器系列 | Universal MATE-N-LOK |
| 单元数量 | 1 | 适用产品/相关产品 | Centerline Splash Proof/Sealed Connector |
环境参数
| 插拔次数 | :50 | 工作温度 | -55C to 125C |
文档与媒体
相关型号
