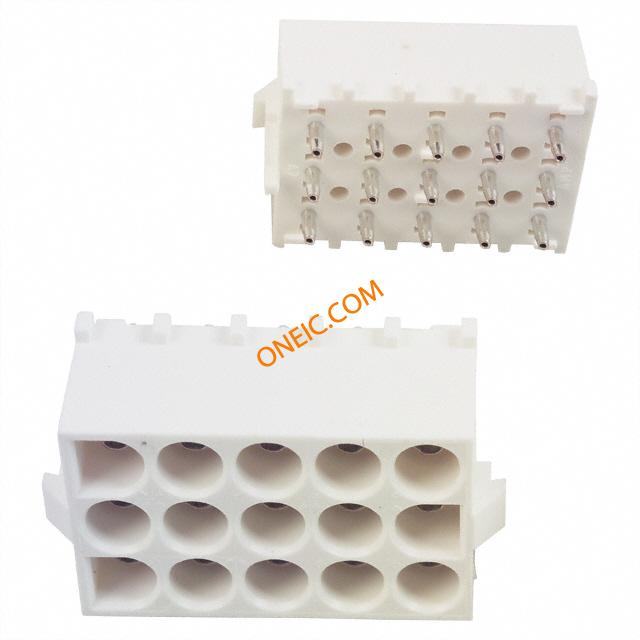

643430-1

制造商	TE Connectivity Ltd.
描述	Conn Power SKT 15 POS 6.35mm Solder ST Thru-Hole 15 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 15POS VERT .250 TIN Power to the Board 15P UNIV M-N-L HDR Conn Power SKT 15 POS 6.35mm Solder ST Thru-Hole 15 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOK, Universal MATE-N-LOK IINot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 15Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 15P UMNL HDR ASSY POL 94VO
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

产品类别	Power to the Board	标准包装数量	Bulk
工厂包装数量	1

合规参数

RoHS	Lead free / RoHS Compliant	UL等级	获得认可
零件状态	E28476	CSA档案号	LR7189
标准编号	CSA, UL	CSA认证	Certified
UL阻燃等级	UL 94V-0	认证机构标志	是

电气参数

额定电压	600 V	供电电压	600
最大额定电流	19 A

机械参数

颜色	Natural	间距	6.35 mm
密封型	Not Sealed	包装方式	Bulk
壳体颜色	白色	排间距	0.250" (6.35mm)
端接方式	Solder	触点形式	Female Socket
触头类型	Female Socket	引脚间距	0.250" (6.35mm)
安装类型	Through Hole	连接器类型	Header
接触镀层	Tin	紧固类型	Locking Ramp
安装样式	Through Hole	引脚数	15
排数	3	封装形式	Receptacle
高度（英寸）	.55	总宽度	.8
触头材料	Phosphor Bronze	壳体材料	Polyamide (PA)
总长度	1.3	包装数量	50
面板安装类型	通孔 - 焊接	端接样式	插座
第一触头极性	Socket (Female)	触点数	15
位数	15	兼容外壳尺寸（如TM-700等）	与插头护套插接（使用插针端子）
安装孔直径	带有	接触件表面处理 - 配合	预镀锡
典型触点布局	矩阵	端子柱长度	3.81 mm [ .149 in ]
静电放电屏蔽	不带	每排/每行位置数	All

产品信息

类型	Power	连接器性别	SKT
系列	Universal MATE-N-LOK, AMP	产品特性	Board Guide
主要用途	Board Guide	产品子类型	Headers
输出配置	Through Hole	应用细节	Power
装配配置	Without	加载位置数	All

环境参数

测试温度	标准件 - 非灼热丝	工作温度	-40 – 105 °C [ -40 – 221 °F ]
封装热阻	3.18 mm [ .125 in ]
