1-350848-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power SKT 15 POS 6.35mm ST Cable Mount 15 Terminal 1 Port Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PLUG TEST CONNECTOR 15POS Pin & Socket Connectors 15P UMNL PLUG TEST ASSM 94VO 15P UMNL PLUG TEST ASSY 94VO 15P UMNL PLUG TEST ASSY 94VO Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP |
| 分类 |
商业参数
| 标准包装规格 | 1 | 产品类别 | Pin & Socket Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 零件状态 | E28476 | CSA档案号 | LR7189 |
| 标准编号 | CSA, UL | CSA认证 | Certified |
| UL阻燃等级 | UL 94V-0 | 认证机构标志 | 是 |
电气参数
| 供电电压 | 600 | 最大额定电流 | 5 |
机械参数
| 颜色 | Natural | 间距 | 6.35 mm |
| 密封型 | Not Sealed | 包装方式 | Bulk |
| 导线类型 | Discrete | 排间距 | 0.250" (6.35mm) |
| 触头类型 | Male Pin | 安装类型 | Cable Mount |
| 连接器类型 | Plug | 接触镀层 | Tin |
| 紧固类型 | Latch Lock | 引脚数 | 15 |
| 排数 | 5 | 封装形式 | Plug |
| 壳体材料 | 尼龙 | 包装数量 | 1 |
| 电缆端接方式 | Crimp | 端接样式 | 插针 |
| 位数 | 15 | 兼容外壳尺寸（如TM-700等） | 通用 MATE-N-LOK 插座 |
| 安装孔直径 | 带有 | 接触件表面处理 - 配合 | 预镀锡 |
| 典型触点布局 | 矩阵 | 静电放电屏蔽 | 带有 |
产品信息
| 类型 | Power | 连接器性别 | SKT |
| 产品特性 | Test Assembly | 产品子类型 | 连接器组件 |
| 应用细节 | Power | 装配配置 | Without |
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -55 – 105 °C [ -67 – 221 °F ] |
文档与媒体
相关型号
350830-1
te connectivity / amp
Conn Power SKT 15 POS 6.35mm Solder ST Thru-Hole 15 Terminal 1 Port 15P UMNL HDR ASSY PC 94VO .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 15POS VERT .250 TIN Pin & Socket Connectors 15 P VERT SKT HEADER Conn Power SKT 15 POS 6.35mm Solder ST Thru-Hole 15 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOK, Universal MATE-N-LOK IINot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 15Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP Conn;Header;Socket;15Pos;UnivMATE-N-LOK;Vertical;White TE Connectivity Universal MATE-N-LOK 系列 15路 直 6.35mm节距 通孔 公 印刷电路板插座, 功率
350765-4
te connectivity / amp
Conn Power SKT 15 POS 6.35mm Solder ST Thru-Hole 15 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 15POS VERT .250 TIN TE Connectivity Universal MATE-N-LOK Series 6.35mm 15 Way 3 Row Straight PCB Socket Through Hole Power Pin & Socket Connectors 15 POS STD TAIL SOC Conn Power SKT 15 POS 6.35mm Solder ST Thru-Hole 15 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOKNot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 15Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP Connector,SoftShell;UniversalMATE-N-LOK;15;Nylon;Natural;19A;600VAC Socket header Pitch6.35 mm Poles 15 MATE-N-LOK Universal, 350765-4, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 3行 15路 直 6.35mm节距 通孔 印刷电路板插座, 功率 15P UMNL HDR ASSY PC
643430-1
te connectivity / amp
Conn Power SKT 15 POS 6.35mm Solder ST Thru-Hole 15 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 15POS VERT .250 TIN Power to the Board 15P UNIV M-N-L HDR Conn Power SKT 15 POS 6.35mm Solder ST Thru-Hole 15 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOK, Universal MATE-N-LOK IINot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 15Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 15P UMNL HDR ASSY POL 94VO
350830-4
te connectivity / amp
Conn Power SKT 15 POS 6.35mm Solder ST Thru-Hole 15 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 15POS VERT .250 GOLD Pin & Socket Connectors 15P HDR ASSY PC 94V0 15P UMNL HDR ASSY PC 94VO LF

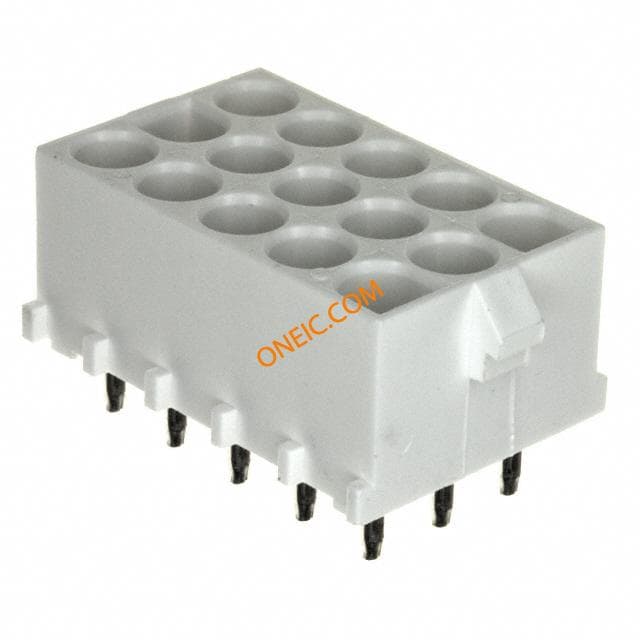

350837-1
