点击放大查看

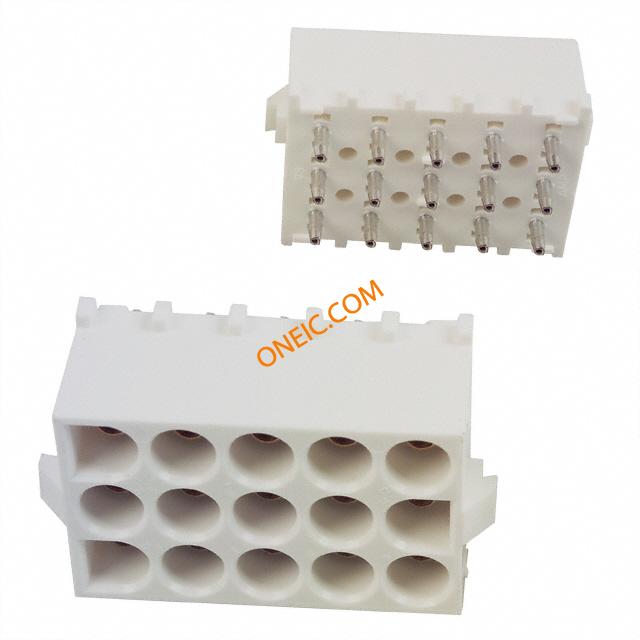

350830-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Pin & Socket Connectors 15 P VERT SKT HEADER 100 .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 15POS VERT .250 AU |
| 分类 |
商业参数
| 其他名称 | A14335 | 产品类别 | Pin & Socket Connectors |
| 标准包装数量 | 200 | 工厂包装数量 | 1 |
合规参数
| RoHS | No | ||
电气参数
| 额定电压 | 600 V | 最大额定电流 | 19 A |
机械参数
| 颜色 | Natural | 间距 | 0.250" (6.35mm) |
| 包装方式 | Bulk | 排间距 | 0.250" (6.35mm) |
| 端接方式 | Solder | 触头类型 | Female Socket |
| 安装类型 | Through Hole | 连接器类型 | Header |
| 接触镀层 | Gold | 紧固类型 | Locking Ramp |
| 安装样式 | Through Hole | 排数 | 3 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Polyamide (PA) |
| 第一触头极性 | Socket (Female) | 触点数 | 15 |
| 位数 | 15 | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 系列 | Universal Mate-N-Lok | 产品子类型 | PCB Receptacles |
| 加载位置数 | All | ||
