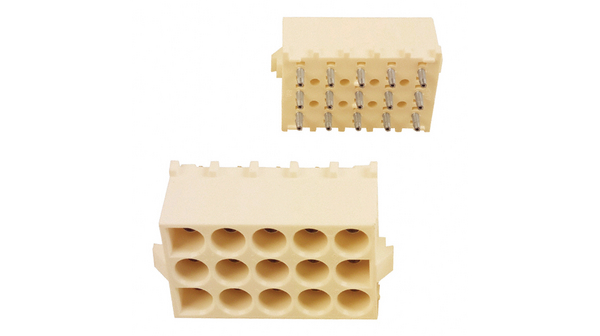

350765-4

点击放大查看

350765-4

制造商
TE Connectivity Ltd.
描述Conn Power SKT 15 POS 6.35mm Solder ST Thru-Hole 15 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 15POS VERT .250 TIN TE Connectivity Universal MATE-N-LOK Series 6.35mm 15 Way 3 Row Straight PCB Socket Through Hole Power Pin & Socket Connectors 15 POS STD TAIL SOC Conn Power SKT 15 POS 6.35mm Solder ST Thru-Hole 15 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOKNot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 15Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP Connector,SoftShell;UniversalMATE-N-LOK;15;Nylon;Natural;19A;600VAC Socket header Pitch6.35 mm Poles 15 MATE-N-LOK Universal, 350765-4, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 3行 15路 直 6.35mm节距 通孔 印刷电路板插座, 功率 15P UMNL HDR ASSY PC
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

其他名称3507654产品类别Pin & Socket Connectors
标准包装数量Bulk工厂包装数量1

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
零件状态E28476CSA档案号LR7189
标准编号CSA, ULCSA认证Certified
UL阻燃等级UL 94V-2认证机构标志是
材料阻燃等级UL 94 V-2

电气参数

电容33.02测试电压5000
额定电压600 V ac/dc极数15
供电电压600最大额定电流15A
绝缘电阻1000 MOhm最小供电电压600VDC/600VAC

机械参数

颜色Natural间距6.35 mm
高度14.73 mm密封型Not Sealed
包装方式Bulk方向直
排间距0.250" (6.35mm)端接方式Solder
触点形式Female Socket触头类型Female Socket
引脚间距0.250" (6.35mm)安装类型Through Hole
连接器类型Header接触镀层Tin
紧固类型Locking Ramp安装样式Through Hole
引脚数15排数3
封装形式Receptacle触头材料Phosphor Bronze
壳体材料Polyamide (PA)包装数量50
面板安装类型通孔 - 焊接端接排数焊接
端接样式插座第一触头极性Socket (Female)
触点数15绝缘直径.18
位数15第一连接器极性Female
兼容外壳尺寸（如TM-700等）与插头护套插接（使用插针端子）安装孔直径带有
接触件表面处理 - 配合预镀锡典型触点布局矩阵
端子柱长度3.18 mm [ .125 in ]接触镀层厚度2.54 µm [ 100 µin ]
静电放电屏蔽不带每排/每行位置数All
护套（绝缘）厚度1.27 µm [ 50 µin ]

产品信息

类型Power连接器性别SKT
系列Universal MATE-N-LOK产品子类型Receptacle Housings
端口数1 Port连接方式Wire-Board
输出配置Through Hole应用细节Power
装配配置Without加载位置数All

环境参数

测试温度标准件 - 非灼热丝工作温度-55...+85 °C
封装热阻1.57 mm [ .062 in ]

文档与媒体

在线文档
TE.Connect?C=1&PN=350765-4&M=BYPN&LG=1&I=13
在线文档
350765-4?RQPN=350765-4
