1-320551-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Ring Tongue Terminal 18AWG 23.01mm 7.92mm Tin Loose Piece Terminals RING STUD 8 18AWG Ring and Spade Tongue Terminals CONN RING 18 AWG #8 RED/WHT PIDG Ring terminal PIDG 22-16AWG Red M4 Ring Tongue Terminal 18AWG 23.01mm 7.92mm Tin Loose Piece Product Highlights:Terminal Shape = Ring TongueReceptacle Style = StraightBody Style = PIDG (Insulation Restriction)Barrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B CRIMP TERMINAL, RING PIDGTERMINALNYLON,TERMINAL,PIDGRIR188 PIDG 18 mm AWG Straight Closed Barrel Ring Tongue Terminal TE Connectivity PIDG 系列, 红色，白色 绝缘 镀锡触芯 环形压接端子 , M4 (#8) 螺栓, 4.34mm内环直径, 21.44mm总长 TERMINAL,PIDG R IR 18 8 |
| 分类 |
商业参数
| 产品 | Ring Terminals | 零件号别名 | M7928 M7928/1-32 |
| 产品类别 | Terminals | 标准包装数量 | Bulk |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | No | ||
电气参数
| 额定电压 | 300 VAC | 供电电压 | 300 |
机械参数
| 颜色 | Red with White Stripe | 形状 | RING-042 |
| 表面处理 | Tin | 重量 | 0.001 |
| 材料（通用） | Copper | 包装方式 | Bulk |
| 厚度 | 0.031" (0.79mm) | 电缆类型 | Regular Wire |
| 重型 | No | 绝缘类型 | Insulated |
| 导线线规 | 18 AWG | 端接方式 | Crimp |
| 触点形状 | Ring Tongue | 安装类型 | Free Hanging (In-Line) |
| 螺柱/焊片尺寸 | 4 mm | 端子类型 | Circular |
| 连接器类型 | :Ring Tongue | 接触镀层 | Tin |
| 壳体镀层 | :Tin | 连接器样式 | Straight |
| 触头材料 | Copper | 绝缘颜色 | :Red, White |
| 总长度 | 0.906" (23.01mm) | 包装数量 | Loose Piece |
| 内径（直径） | 4.34mm | 绝缘高度 | Insulation Restriction |
| 连接器颜色 | Red, White | 外径 | 7.92mm |
| 接触件尾部长度 | 0.84 [0.033] | 绝缘直径 | 1.42-2.79 [.056-.110] |
| 绝缘材料 - 类型 | Nylon | 外缘宽度 | 0.312" (7.92mm) |
| 绝缘材料 - 材质 | Polyamide (PA), Nylon | 供应商器件封装 | PIDG (Insulation Restriction) |
| 线规或范围 - AWG | 1,900 | 线规或范围 - mm² | 0.80-0.90² [18] |
| 外径-未扩张 | :2.79mm | ||
产品信息
| 类型 | Ring Tongue Terminal | 类别 | 1 & 2 |
| 连接器性别 | Female | 系列 | 320 |
| 产品特性 | Insulation Restriction | 制造商全称 | AMP |
| 设备部件号 | M7928/1-32 | ||
相关型号
47386
te connectivity / amp

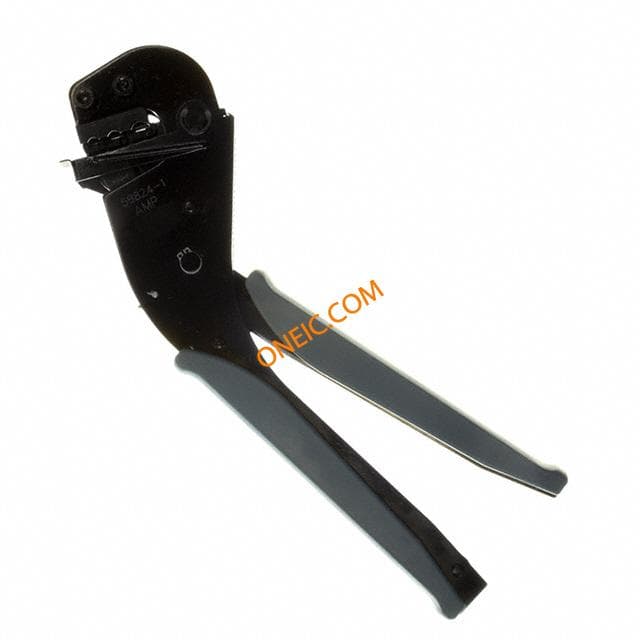

General Hand Tool Used In The Aircraft And Military Industries Crimpers DAHT PIDG CRIMPER 22-16 AWG Hand Tools DAHT PIDG CRIMPER 22-16 AWG HAND TOOL PIDG 16-26AWG Connector Accessories PIDG Terminal and Splice Hand Tool (16-22)AWG CRIMP TOOL CERTI-CRIMP PIDG 22-16 DAHT
59824-1
te connectivity / amp
Die Set For Connector/Terminal Tool Crimpers TETRA CRIMP TOOL TETRA-CRIMP HT ASSY TETRA-CRIMP crimp tool, PIDG, 22-10 AWG CRIMP TOOL, PIDG FASTON RECEPTACLES Crimper;Ratchet;22-10AWG;PIDG,PLASTI-GRIPSplice/Terminal;904139-1,662903-2Die TE Connectivity Tetra-Crimp 系列 手工压接工具 , 22 → 10 AWG 线规格, PIDG Splices/Terminals, Plasti-Grip Terminals
58423-1
te connectivity / amp
DIE, RBY IS9252 Punches & Dies DIE SET INSUL. 22-10 DIESET SPLICE TERMINALS PRO-CRIMPER III PIDG PLASTI-GRIP die set Pro-Crimper Iii Hand Tool DIE, PIDG/PLASTIGRIP AMP;DIESETONLY;INSULATEDTERMINALS;22-10AWG Crimping dies, 58423-1, TE Connectivity TE Connectivity Pro-Crimper III 系列 压接工具模具 , 22 → 10 AWG 线规格
69151-1
te connectivity / amp

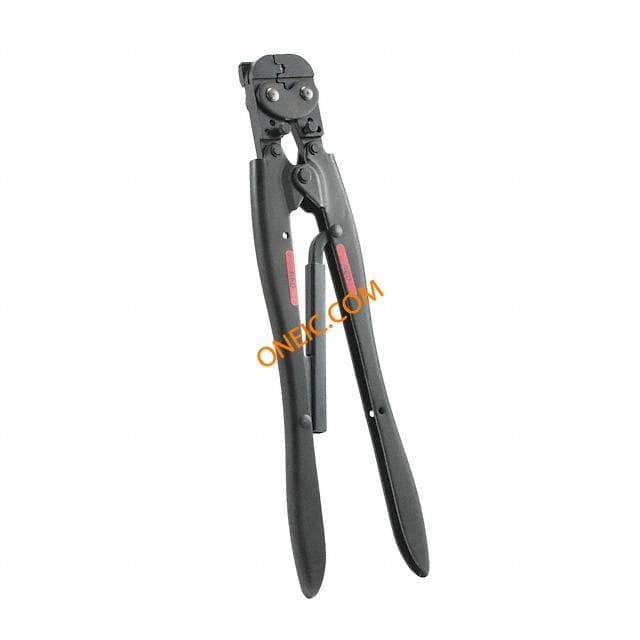

DAHT PIDG S EXP 22-16 Crimpers DAHT PIDG S EXP 22-16 TOOL HAND PIDG S EXP 16-22AWG DAHT Pidg S Exp 22-16 TE Connectivity CERTI-CRIMP 系列 PIDG Butt Splices 压接工具 , 适用于22 → 16 AWG 线规格
47386-5
te connectivity / amp
General Hand Tool Used In The Aircraft And Military Industries Hand Tools HAND TOOL PIDG 22-16 HAND TOOL PIDG 16-26AWG
58433-3
te connectivity / amp
Hand Tool Assembly And Die Assembly Crimpers TOOL W/DIE INS TERM TOOL CRIMP INSUL TERM W/DIE SET PRO-CRIMPER III hand crimping tool Connector Accessories Terminal Crimp Hand Tool CRIMP TOOL, PIDG AND PLASTI-GRIP TERMINALS Crimper;Ratchet;22-10AWG;PIDG,PLASTI-GRIP,PIDGFASTONTerminals;58423-1Die TE Connectivity Pro-Crimper III 系列 PIDG Splices/Terminals, Plasti-Grip Terminals 压接工具 PRO CR ASSY, RBY IS9252
314270-3
te connectivity / amp
Penumatic Crimoing Head Red Hand Tools 22-16 PIDG IS9586 PNEU HD PNEU HEAD 22-16AWG PIDG IS9586 Pneumatic crimping head, PIDG, 22-16 AWG Connector Accessories Terminal Head Red PNEUHD22-16PIDGIS9586
169060-8
te connectivity / amp
SUPER CHAMP Crimpers SUPER CHAMP Hand Tools SUPER CHAMP AMP Super champ II crimp tool Super Champ Hand Tool CRIMP TOOL, SUPER CHAMP II AMPSuperchampIIcrimptool Crimp & strip pliers, 169060-8, TE Connectivity TE Connectivity SUPER CHAMP II 系列 PIDG Splices/Terminals, Plasti-Grip Terminals 压接工具
91964-2
te connectivity / amp
S.D.E.PREM.DIE ASSY 22-16 PIDG Punches & Dies S.D.E.PREM.DIE ASSY 22-16 PIDG
46282
TE Connectivity / AMP

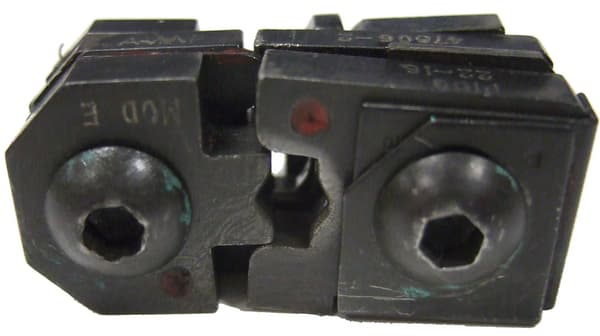

Crimpers PNEU HD PIDG 69010 22-16 Hand Tools PNEU HD PIDG 69010 22-16 PNEU HEAD PIDG 69010 22-16AWG
