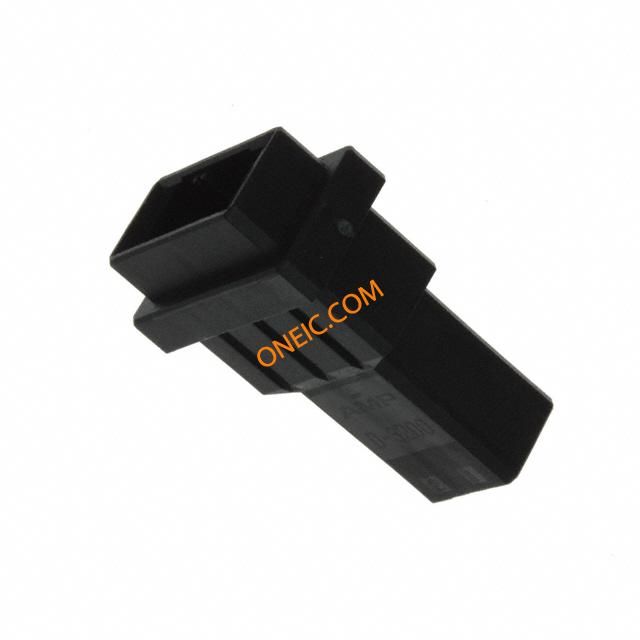

1-179552-2
| 制造商 | |
| 描述 | Conn Housing M 2 POS 5.08mm Crimp ST Cable Mount Bag Headers & Wire Housings 2 POS HOUSING TAB KEY X Dynamic Series Connectors CONN HOUSING TAB 2POS KEY-X FREE Housing FH 2 way TAB 5.08mm X key D-3 Conn Housing M 2 POS 5.08mm Crimp ST Cable Mount Bag Product Highlights:Terminate To WireHousingTabNumber of Positions = 2Mount = Free HangingSearch Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, HOUSING, PLUG, D-3200S, 2WAY HousingFH2wayTAB5.08mmXkeyD-3 TE Connectivity Dynamic 3000 系列 1 行 5.08mm 节距 2 路 直 公 电缆安装 PCB 壳体 DYNAMIC D-3200S TAB HSG 2P K/X |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 250 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 开关功能 | Unlatched | 额定交流电压 | 600 |
| 最小供电电压 | 600VAC | ||
机械参数
| 颜色 | Black | 深度 | 33.6mm |
| 间距 | 5.08 mm | 宽度 | 12.7mm |
| 高度 | 12.7 mm | 长度 | 23.03mm |
| 重量 | 0.02 | 包装方式 | Bulk |
| 导线线规 | 16 AWG | 触头类型 | Male Pin |
| 外壳颜色 | Black | 安装类型 | Straight |
| 连接器类型 | Plug | 安装样式 | Free Hanging |
| 排数 | 1 | 壳体材料 | Polybutylene Terephthalate (PBT) |
| 包装数量 | Bag | 主要材料 | Connector |
| 端接样式 | Crimp | 第一触头极性 | Pin (Male) |
| 触点数 | 2 | 接触件端接 | Crimp |
| 位数 | 2 | ||
产品信息
| 备注 | L Fitting 900121-2 is used to secure housing onto panel. | 类型 | Housing |
| 连接器性别 | M | 系列 | D3200S |
| 产品特性 | Polarizing Key | 钥匙类型 | X |
| 编码、键控 | Yes | 制造商全称 | D-3000Series |
| 产品子类型 | Receptacles / Sockets - Housings | 连接类型 | Wire |
| 适用产品/相关产品 | Wire-to-Board Connector | ||
环境参数
| 工作温度 | -55C to 105C | ||
