点击放大查看

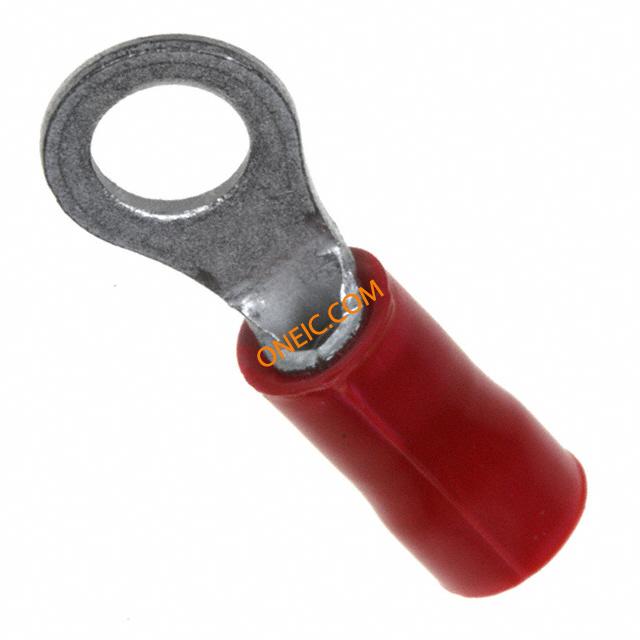

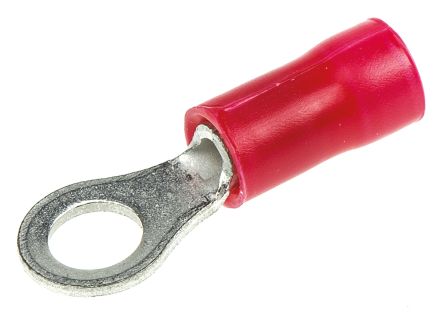

34145
| 制造商 | TE Connectivity Ltd. |
| 描述 | Ring Tongue Terminal 16-22AWG 20.55mm 7.14mm Tin Loose Piece Terminals PLASTIGRIP RNG 22-16 Ring and Spade Tongue Terminals CONN RING 16-22 AWG #8 PL-GRIP Ring terminal, PLASTI-GRIP, red, M4 Ring Tongue Terminal 16-22AWG 20.55mm 7.14mm Tin Loose Piece Product Highlights:Terminal Shape = Ring TongueReceptacle Style = StraightBody Style = PLASTI-GRIPBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B CRIMP TERMINAL, RING, RED, STUD # 8 Terminal,RingTongue,22-16AWG,Red,StudSz8 Ring terminal; M4; Ø:4.3mm; 0.3÷1.4mm2; crimped; for cable; red Ring terminal, 0.3...1.5 mm², 22...16 AWG, PG R, 34145, TE Connectivity TE Connectivity PLASTI-GRIP 系列, 红色 绝缘 镀锡触芯 环形压接端子 , 4mm 螺栓 PG R 22-16 COMM 22-18 MIL 8 |
| 分类 |
商业参数
| 产品 | Ring Terminals | 其他名称 | A09017 |
| 产品类别 | Terminals | 标准包装数量 | Bulk |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 抗辐射加固 | No | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 认证机构标志 | No |
电气参数
| 驱动类型 | ring terminal | 量程（°/s） | :TE - PLASTI-GRIP Series |
| 额定电压 | 600 VAC | 供电电压 | 600 |
机械参数
| 颜色 | Red | 深度 | 7.14 mm |
| 形状 | RING-043 | 表面处理 | Tin |
| 重量 | 0.01 | 材料（通用） | Copper |
| 包装方式 | Bulk | 厚度 | 0.031" (0.79mm) |
| 电缆类型 | Regular Wire | 重型 | No |
| 绝缘类型 | Insulated | 螺钉尺寸 | 8 |
| 导线线规 | 16-22 AWG | 端接方式 | Crimp |
| 基体材料 | Copper | 触点形状 | Ring Tongue |
| 安装类型 | Free Hanging (In-Line) | 螺柱/焊片尺寸 | 4 mm |
| 端子类型 | Circular | 行程角度 | Straight |
| 连接器类型 | :Crimp Terminal | 接触镀层 | Tin |
| 安装样式 | for cable | 壳体镀层 | Tin |
| 连接器样式 | Straight | 总宽度 | 0.281" |
| 触头材料 | Copper | 套圈材料 | insulated |
| 绝缘颜色 | :Red | 总长度 | 0.809" (20.55mm) |
| 包装数量 | Loose Piece | 主要材料 | Ring |
| 内径（直径） | 4.3mm | 绝缘高度 | Insulation Support |
| 连接器颜色 | Red | 接触件尾部长度 | 0.79 [0.031] |
| 绝缘直径 | 2.67-3.56 [.105-.140] | 绝缘材料 - 类型 | Vinyl |
| 外缘宽度 | 0.281" (7.14mm) | 绝缘材料 - 材质 | Poly-Vinyl Chloride (PVC) |
| 安装孔直径 | M4 | 法兰上方插针尺寸 | :0.169" |
| 法兰下方引脚尺寸 | :4.3mm | 供应商器件封装 | PLASTI-GRIP |
| 线规或范围 - AWG | 509 â 3,260 | 线规或范围 - mm² | 0.30-1.40² [22-16] |
产品信息
| SPG | 1000 | 类型 | Ring Tongue Terminal |
| 连接器性别 | Female | 系列 | 145 |
| 产品特性 | Serrated Termination | 制造商全称 | AMP |
| 单元数量 | 1 | ||
环境参数
| 温度范围 | 90 | 工作温度 | + 90 C |
