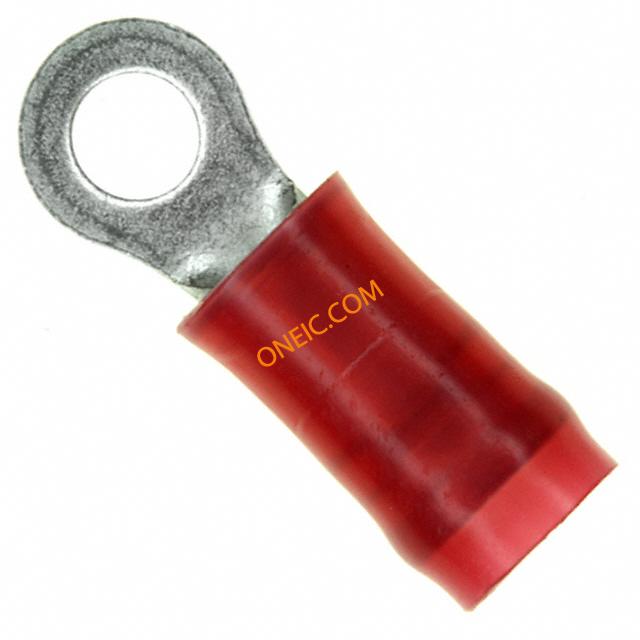

31880
| 制造商 | TE Connectivity Ltd. |
| 描述 | Ring Tongue Terminal 16-22AWG 17.07mm 5.54mm Tin Loose Piece Terminals NYLON RING 22-16 4 Ring and Spade Tongue Terminals CONN RING 16-22 AWG #4 PIDG CRIMP RING TERMINAL 3MM Ring Tongue Terminal 16-22AWG 17.07mm 5.54mm Tin Loose Piece Product Highlights:Terminal Shape = Ring TongueReceptacle Style = StraightBody Style = PIDGBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B CRIMP TERMINAL, RING, RED, STUD # 4 Terminal,PIDGR22-16COMM22-18MIL4,MS25036-148 Ring terminal, 0.3...1.5 mm², 22...16 AWG, PIDG, 31880, TE Connectivity TE Connectivity PIDG 系列, 红色 绝缘 镀锡触芯 环形压接端子 , M2.5 螺栓, 3.02mm内环直径, 17.07mm总长 PIDG R 22-16 COMM 22-18 MIL 4 |
| 分类 |
商业参数
| 产品 | Ring Terminals | 其他名称 | A1087 |
| 零件号别名 | MS25036-148 | 产品类别 | Terminals |
| 标准包装数量 | Bulk | 工厂包装数量 | 1000 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 抗辐射加固 | No | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 认证机构标志 | No |
电气参数
| 量程（°/s） | :TE - PIDG Series | 额定电压 | 300 VAC |
| 供电电压 | 300 | ||
机械参数
| 颜色 | Red | 深度 | 5.54 mm |
| 形状 | RING-041 | 表面处理 | Tin |
| 长度 | 17.07 mm | 重量 | 0.01 |
| 材料（通用） | Copper | 包装方式 | Bulk |
| 厚度 | 0.031" (0.79mm) | 电缆类型 | Regular Wire |
| 重型 | No | 绝缘类型 | Insulated |
| 螺钉尺寸 | 4 | 导线线规 | 16-22 AWG |
| 端接方式 | Crimp | 基体材料 | Copper |
| 触点形状 | Ring Tongue | 安装类型 | Free Hanging (In-Line) |
| 螺柱/焊片尺寸 | 2.84 mm | 端子类型 | Circular |
| 行程角度 | Straight | 连接器类型 | :Crimp Terminal |
| 接触镀层 | Tin | 壳体镀层 | Tin |
| 连接器样式 | Straight | 总宽度 | 0.218" |
| 触头材料 | Copper | 绝缘颜色 | :Red |
| 总长度 | 17.07 [0.672] | 包装数量 | Loose Piece |
| 主要材料 | Ring | 绝缘高度 | Insulation Support |
| 端接样式 | Crimp | 连接器颜色 | Red |
| 接触件尾部长度 | 0.79 [0.031] | 绝缘直径 | 2.67-3.56 [.105-.140] |
| 绝缘材料 - 类型 | Nylon | 外缘宽度 | 0.218" (5.54mm) |
| 绝缘材料 - 材质 | Polyamide (PA), Nylon | 法兰上方插针尺寸 | :0.119" |
| 法兰下方引脚尺寸 | :3.02mm | 供应商器件封装 | PIDG |
| 线规或范围 - AWG | 509 â 3,260 | 线规或范围 - mm² | 0.30-1.40² [22-16] |
产品信息
| 类型 | Ring Tongue Terminal | 类别 | 1 & 2 |
| 连接器性别 | Female | 系列 | 318 |
| 已删除 | Compliant | 产品特性 | Serrated Termination |
| CAD图纸 | 3D CAD Model | 制造商全称 | AMP |
| 设备部件号 | MS25036-148 | ||
