STEVAL-ISA013V1

点击放大查看

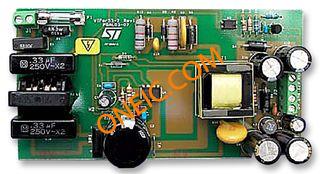

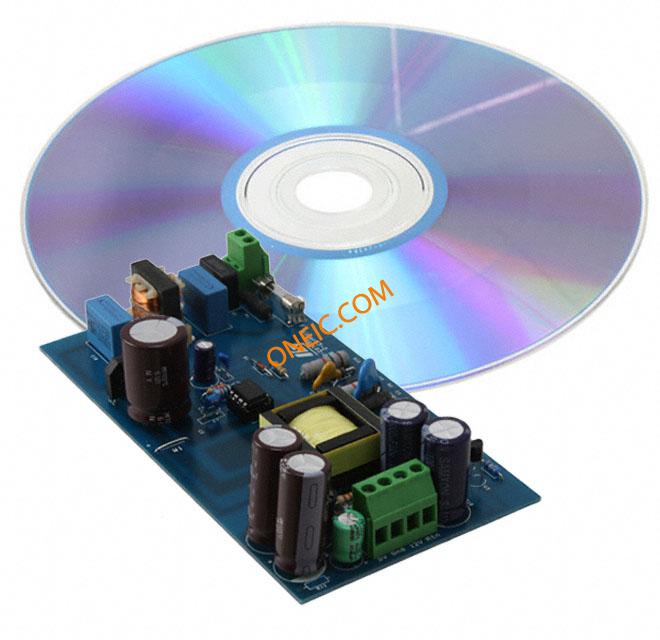

STEVAL-ISA013V1

制造商
STMicroelectronics N.V.
描述Evaluation Kit For AC/DC Power Supply Dual Out 12/5V 1 / 2.4A 24W Power Management IC Development Tools VIPer53 Single OUTP Power Supply BOARD PWR SUPPLY 24W OUTPUT VIPE Evaluation Board Dual Output Off-Line Wide Range 24 W Power Supply for VIPer53
分类
集成电路逻辑IC标准逻辑IC
对参数有疑问？问 AI 助手

商业参数

产品Power Management Modules产品类别Power Management IC Development Tools
标准包装数量Bulk工厂包装数量1

合规参数

RoHSNo欧盟RoHSCompliant

电气参数

额定输出功率24W额定电压85 V to 264 V
输出电流2.4A, 1A供电电压5V, 12V
稳压器拓扑Flyback最大额定电流2.4A, 1A
开关频率100kHz最小输入电压5V, 12V

机械参数

包装方式Bulk电路板厚度Fully Populated
供应商器件封装Fully Populated

产品信息

类型Development Kit内容Board
应用领域AC/DC, Primary Side主要用途AC/DC, Primary Side
输出及类型2, Isolated工具类型/特性VIPer53
使用的IC/零件VIPer53

环境参数

机械寿命Obsolete

文档与媒体

PDF 文档
CD00166603.pdf
PDF 文档
1724741.pdf
