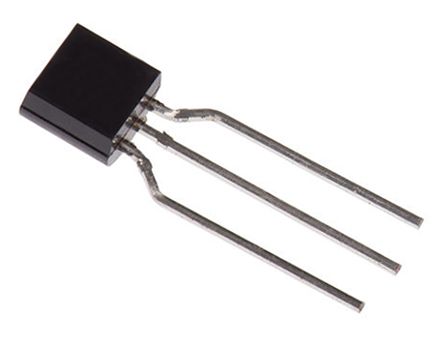

TL431AIZT
| 制造商 | STMicroelectronics N.V. |
| 描述 | V-Ref Adjustable 2.495V to 36V 100mA 3-Pin TO-92 T/R ADJ V-REF 2,5-36V 1,0% TO92 IC VREF SHUNT PREC ADJ TO-92-3 TL431AIZT, Adjustable Adjustable Voltage Reference 2.5 to 36V, 1% 100mA 37V Max. 3-Pin TO-92 Voltage References 2.5-36V Prog Adjust IC, V REF, PROGRAMMABLE, SHUNT, ADJ REFERENCE,VOLTAGE,PROG,TO-92PKG STMicroelectronics 可调 2.5 - 36V 电压参考, ±1.0 %精确度, 100mA, 37 V输入, 3针 TO-92封装 |
| 分类 |
商业参数
| 最小起订量 | 2000 | 产品 | Voltage References |
| 单位包装 | 2000 | 其他名称 | 497-2226-2 |
| 产品类别 | Voltage References | 标准包装数量 | Tape & Reel |
| 工厂包装数量 | 2000 | 标准封装名称 | TO-92 |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85411000 |
| 汽车级 | NO | 无铅定义 | RoHS-conform |
电气参数
| 容差 | ±1% | 基准类型 | Adjustable |
| 稳压器类型 | Shunt | 额定电压 | 2.495 to 36 V |
| 输出电流 | 100 mA | 供电电压 | :1% |
| 阴极电流 | 700µA | 电压基准 | :2.495V |
| 通道数量 | 1 | 触点电压（最大） | 37 V |
| 最小输入电压 | 2.495 V ~ 36 V | 输出电压（最大） | 36 V |
| 最大功耗 | 625mW | 输出电流/通道 | 100 mA |
| 精度 - 最高（最低） | 1 % | 输出电压（最小/固定） | 2.5 V |
| 漏电流（IS(off)）（最大） | 1 mA | 最大持续工作电压（MCOV） | :36V |
机械参数
| 宽度 | 3.7mm | 高度 | 4.4mm |
| 长度 | 4.7mm | 重量 | 0.9 |
| 包装方式 | Tape and Reel | 引脚样式 | Formed |
| 端接方式 | :Through Hole | 安装类型 | Through Hole |
| 安装样式 | Through Hole | 引脚数 | :3 |
| 封装形式 | 3TO-92 | 冷却的封装 | TO-92 |
| 材料表面处理 | :- | 包装数量 | TO-92 |
| 尺寸/外形 | 4.7 x 3.7 x 4.4mm | 位数 | 3 |
| 供应商器件封装 | TO-92-3 | ||
产品信息
| 类型 | VoltageReference | 拓扑 | Shunt |
| 基本单元 | :431 | 匹配码 | TL431AIZT |
| 标准交期 | 18 weeks | ||
环境参数
| 测试温度 | -40°C | 工作温度 | -40 to 105 °C |
| 温度系数 | :100ppm/°C | 可用温度范围 | -40to+105°C |
| 典型温度系数 | 100 PPM / C | ||
