TL431AILPR
| 制造商 | Texas Instruments Incorporated |
| 描述 | V-Ref Adjustable 2.495V to 36V 100mA 3-Pin TO-92 T/R IC VREF SHUNT PREC ADJ TO-92-3 Voltage References Adj Shunt IC, PROG SHUNT V-REF, 2.495V, 1%, TO-92 Adjustable Precision Shunt Regulator |
| 分类 |
商业参数
| 产品 | Voltage References | 其他名称 | 296-10183-2 |
| 产品类别 | Voltage References | 标准包装数量 | Tape & Reel |
| 工厂包装数量 | 2000 | 标准封装名称 | TO-92 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85423990 | 零件状态 | ACTIVE |
| 抗辐射加固 | No | ||
电气参数
| 容差 | ±1% | 基准类型 | Adjustable |
| 额定电压 | 2.495 to 36 V | 输出电流 | 100 mA |
| 供电电压 | 2.495 | 阴极电流 | 700µA |
| 电压基准 | :2.495V | 输出电流1 | 100 |
| 通道数量 | 1 | 最大额定电流 | Catalog |
| 触点电压（最大） | 37 V | 最小输入电压 | 2.495 V ~ 36 V |
| 输出电压（最大） | 2.495 to 36 V | 输出电流/通道 | 100 mA |
| 精度 - 最高（最低） | 1 % | 漏电流（IS(off)）（最大） | 600 uA |
| 最大持续工作电压（MCOV） | :36V | ||
机械参数
| 宽度 | 3.43 | 重量 | 0.007520 oz |
| 包装方式 | Tape and Reel | 引脚样式 | Formed |
| 安装类型 | Through Hole | 安装样式 | Through Hole |
| 引脚数 | :3 | 封装形式 | 3TO-92 |
| 冷却的封装 | TO-92 | 总长度 | 4.83 |
| 包装数量 | TO-92 | 位数 | 3 |
| 外壳尺寸-插件 | 3.68 | 供应商器件封装 | TO-92-3 |
产品信息
| 系列 | TL431A | 软件 | SLVS543O |
| 拓扑 | Shunt | 可编程性 | Adjust |
| 图案编号 | Y | 功能框图 | alt_slvs543o.gif |
| 使用的IC/零件 | View | 印刷电路板数量 | 3 |
环境参数
| 测试温度 | -40 to 85 | 工作温度 | -40 to 85 °C |
| 温度系数 | 34(Typ) ppm/°C | 典型温度系数 | 34 PPM / C |
文档与媒体
相关型号
%2CTO-226_straightlead.jpg&w=3840&q=75)
TL431AILP
texas instruments
V-Ref Adjustable 2.495V to 36V 100mA 3-Pin TO-92 Bulk IC VREF SHUNT PREC ADJ TO-92-3 Voltage References Adj Shunt SHUNT REG ADJ +2.5/36V, TO-92 IC, PROG SHUNT V-REF, 2.495V, 1%, TO-92 Adjustable Precision Shunt Regulator Voltage reference 2.495...36 V TO-92, TL431, TL431AILP, Texas Instruments Texas Instruments 可调 2.5 - 36V 电压参考, ±1.0 %精确度, 100mA, 3针 TO-92封装
TL431ILP
texas instruments
V-Ref Adjustable 2.495V to 36V 100mA 3-Pin TO-92 Bulk IC VREF SHUNT PREC ADJ TO-92-3 TL431ILP, Adjustable Voltage Reference 2.5 to 36V, 2% 100mA 37V Max. 3-Pin TO-92 Voltage References Adj Shunt SHUNT REG ADJ +2.5/36V, TO-92, 431 Voltage reference source; 2.5÷36V; TO92 Adjustable Precision Shunt Regulator Texas Instruments 可调 2.5 - 36V 电压参考, ±2.0 %精确度, 100mA, 37 V输入, 3针 TO-92封装
TL431AIZ
stmicroelectronics
V-Ref Adjustable 2.495V to 36V 100mA 3-Pin TO-92 Bulk SHUNT.VOLTAGE.R IC VREF SHUNT PREC ADJ TO-92-3 TL431AIZ, Adjustable Adjustable Voltage Reference 2.5 to 36V, 1% 100mA 37V Max. 3-Pin TO-92 Voltage References 2.5-36V Prog Adjust IC, PROG SHUNT V-REF, 2.495V, 1%, TO-92 IC VREF SHUNT ADJ TO92-3 Voltage reference source; 2.5V; TO92 STMicroelectronics 可调 2.5 - 36V 电压参考, ±1.0 %精确度, 100mA, 37 V输入, 3针 TO-92封装
TL431IPK
texas instruments

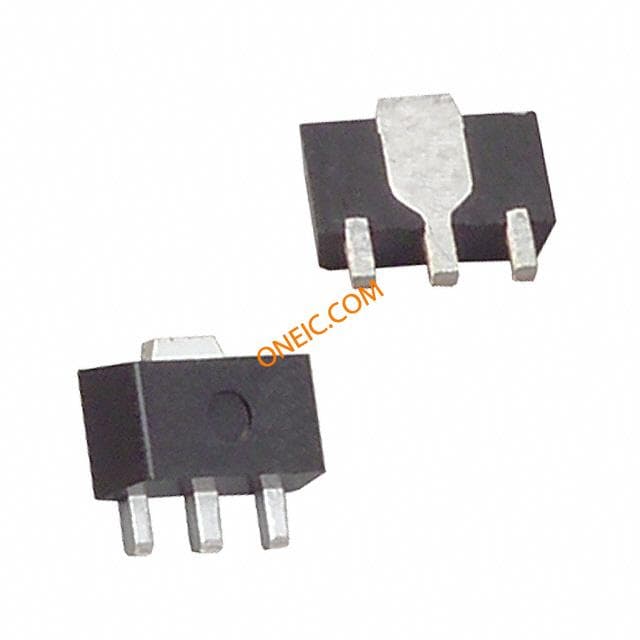

V-Ref Adjustable 2.495V to 36V 100mA 4-Pin(3+Tab) SOT-89 T/R IC VREF SHUNT PREC ADJ SOT-89-3 Voltage References Adj Shunt IC, PROG SHUNT V-REF, 2.495V 2% SOT-89-3 Adjustable Precision Shunt Regulator
