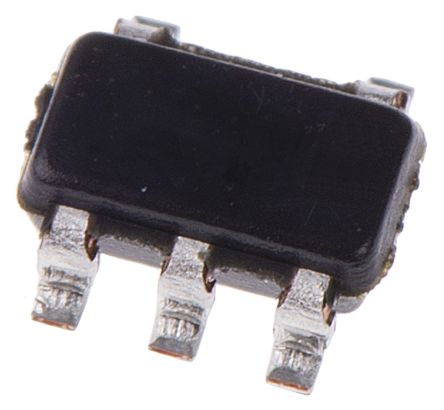

TLV431AIDBVR
| 制造商 | Texas Instruments Incorporated |
| 描述 | V-Ref Adjustable 1.24V to 6V 15mA 5-Pin SOT-23 T/R IC VREF SHUNT PREC ADJ SOT-23-5 Voltage References Lw V Adj Shunt Low Voltage Adjustable Precision Shunt Regulator Voltage reference 1.24...6 V SOT-23-5, TLV431, TLV431AIDBVR, Texas Instruments Texas Instruments 可调 1.24 - 6V 电压参考, ±1.0 %精确度, 15mA, 5针 SOT-23封装 |
| 分类 |
商业参数
| 产品 | Voltage References | 其他名称 | 296-1984-2 |
| 产品类别 | Voltage References | 标准包装数量 | Tape & Reel |
| 工厂包装数量 | 3000 | 标准封装名称 | SOT-23 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 零件状态 | ACTIVE | 抗辐射加固 | No |
电气参数
| 容差 | ±1% | 基准类型 | Adjustable |
| 额定电压 | 1.24 to 6 V | 输出电流 | 15 mA |
| 阴极电流 | 80µA | 输出电流1 | 15 |
| 通道数量 | 1 | 频率稳定度 | 129 |
| 最大额定电流 | Catalog | 触点电压（最大） | 7 V |
| 最小输入电压 | 1.24 V ~ 6 V | 输出电压（最大） | 1.24 to 6 V |
| 输出电流/通道 | 15 mA | 精度 - 最高（最低） | 1 % |
| 输出电压（最小/固定） | 1.24 V | 漏电流（IS(off)）（最大） | 80 uA |
| 共模瞬态抗扰度（最小） | Industrial | ||
机械参数
| 宽度 | 1.6mm | 高度 | 1.15mm |
| 长度 | 2.9mm | 重量 | 0.000557 oz |
| 包装方式 | Tape and Reel | 引脚样式 | Gull-wing |
| 安装类型 | Surface Mount | 安装样式 | SMD/SMT |
| 引脚数 | 5 | 封装形式 | 5SOT-23 |
| 冷却的封装 | SOT-23 | 总长度 | 3.05(Max) |
| 包装数量 | SOT-23 | 尺寸/外形 | 2.9 x 1.6 x 1.15mm |
| 位数 | 5 | 外壳尺寸-插件 | 1.3(Max) |
| 供应商器件封装 | SOT-23-5 | ||
产品信息
| 系列 | TLV431A | 功能 | LOW VOLTAGE ADJUSTABLE PRECISION SHUNT REGULATOR |
| 软件 | SLVS139V | 拓扑 | Shunt |
| 制造商全称 | Texas Instruments | 可编程性 | Adjust |
| 图案编号 | Y | 功能框图 | alt_slvs139v.gif |
| 使用的IC/零件 | View | 印刷电路板数量 | 5 |
环境参数
| 测试温度 | -40 to 85 | 工作温度 | -40 to 85 °C |
| 温度系数 | 129 ppm/°C | 典型温度系数 | 129 PPM / C |
文档与媒体
相关型号
SN74LVC1G14DBVR
texas instruments
Inverter Schmitt Trigger 1-Element CMOS 5-Pin SOT-23 T/R IC SCHMITT TRIG INV SOT-23-5 Inverters SINGLE SCHMITT TRIGGER INVERTER IC, SCHMITT TRIGGER INVERTER, SMD IC, INVERTER SCHMITT TRIGGER, SOT-23-5, FULL REEL IC: digital; NOT; Schmitt trigger, inverter; Channels:1; Inputs:1 Single Schmitt-Trigger Inverter Logic IC SOT-23-5, SN74LVC1G14, SN74LVC1G14DBVR, Texas Instruments
%2CTO-226_straightlead.jpg&w=3840&q=75)
TL431ILP
texas instruments
V-Ref Adjustable 2.495V to 36V 100mA 3-Pin TO-92 Bulk IC VREF SHUNT PREC ADJ TO-92-3 TL431ILP, Adjustable Voltage Reference 2.5 to 36V, 2% 100mA 37V Max. 3-Pin TO-92 Voltage References Adj Shunt SHUNT REG ADJ +2.5/36V, TO-92, 431 Voltage reference source; 2.5÷36V; TO92 Adjustable Precision Shunt Regulator Texas Instruments 可调 2.5 - 36V 电压参考, ±2.0 %精确度, 100mA, 37 V输入, 3针 TO-92封装
TLV431AIDBVRE4
texas instruments
V-Ref Adjustable 1.24V to 6V 15mA 5-Pin SOT-23 T/R IC VREF SHUNT PREC ADJ SOT-23-5 Voltage References Lo Vtg Adj Precision Shunt Regulator V REG, SHUNT ADJUST, SOT-23-5, 431 Low Voltage Adjustable Precision Shunt Regulator
TL431AIZ
stmicroelectronics
V-Ref Adjustable 2.495V to 36V 100mA 3-Pin TO-92 Bulk SHUNT.VOLTAGE.R IC VREF SHUNT PREC ADJ TO-92-3 TL431AIZ, Adjustable Adjustable Voltage Reference 2.5 to 36V, 1% 100mA 37V Max. 3-Pin TO-92 Voltage References 2.5-36V Prog Adjust IC, PROG SHUNT V-REF, 2.495V, 1%, TO-92 IC VREF SHUNT ADJ TO92-3 Voltage reference source; 2.5V; TO92 STMicroelectronics 可调 2.5 - 36V 电压参考, ±1.0 %精确度, 100mA, 37 V输入, 3针 TO-92封装
TL431IPK
texas instruments
V-Ref Adjustable 2.495V to 36V 100mA 4-Pin(3+Tab) SOT-89 T/R IC VREF SHUNT PREC ADJ SOT-89-3 Voltage References Adj Shunt IC, PROG SHUNT V-REF, 2.495V 2% SOT-89-3 Adjustable Precision Shunt Regulator
TLVH431BIDBZTG4
texas instruments
V-Ref Adjustable 1.24V to 18V 70mA 3-Pin SOT-23 T/R IC VREF SHUNT PREC ADJ SOT23-3 TLVH431BIDBZTG4, Adjustable Adjustable Voltage Reference 1.24 to 18V, 0.5% 70mA 20V Max. 3-Pin SOT-23 Voltage References Lo-Vtg Adj Precision Shunt Regulator SHUNT REG ADJ +1.24/6V, SOT-23-3 Low-Voltage Adjustable Precision Shunt Regulator
TLV431CDBV
Texas Instruments
Voltage & Current References Lw V Adj Shunt SHUNT REG ADJ +1.24/6V, SOT-23, 431 Low-Voltage Adjustable Precision Shunt Regulator
TPA3123D2PWP
texas instruments
Audio Amp Speaker 2-CH Stereo 20W Class-D 24-Pin HTSSOP EP Tube IC AMP AUDIO PWR 25W D 24TSSOP Audio Amplifiers 25W St Class-D Aud Pwr Amp AMP, AUDIO PWR CLASS-D 25W 24HTSSOP 25-W Stereo Class-D Audio Power Amplifier with SE Outputs (TPA3123) Texas Instruments D 类 立体声 扬声器放大器, +85 °C, 24引脚 HTSSOP封装
TPS2410PW
texas instruments
DC DC Cntrlr Single-OUT 3V to 16.5V 14-Pin TSSOP Tube OR Controller N-Channel Single-OUT 14-Pin TSSOP Tube IC OR CTRLR N+1 14TSSOP Hot Swap Voltage Controllers N+1 OR-ing Pwr Rail Cntrlr IC, HOT SWAP CONTROLLER N+1 and OR-ing Power Rail Controller
TLVH431BCDBZTG4
texas instruments
V-Ref Adjustable 1.24V to 18V 70mA 3-Pin SOT-23 T/R IC VREF SHUNT PREC ADJ SOT23-3 TLVH431BCDBZTG4, Adjustable Adjustable Voltage Reference 1.24 to 18V, 0.5% 70mA 20V Max. 3-Pin SOT-23 Voltage References Lo-Vtg Adj Precision Shunt Regulator SHUNT REG ADJ +1.24/6V, SOT-23-3 Low-Voltage Adjustable Precision Shunt Regulator
TLVH431BQDBZTG4
texas instruments
V-Ref Adjustable 1.24V to 18V 70mA 3-Pin SOT-23 T/R IC VREF SHUNT PREC ADJ SOT23-3 TLVH431BQDBZTG4, Adjustable Adjustable Voltage Reference 1.24 to 18V, 0.5% 70mA 20V Max. 3-Pin SOT-23 Voltage References Lo-Vtg Adj Precision Shunt Regulator SHUNT REG ADJ +1.24/6V, SOT-23-3 Low-Voltage Adjustable Precision Shunt Regulator
-Formed-Leads.jpg&w=3840&q=75)
TL431AILPR
texas instruments
V-Ref Adjustable 2.495V to 36V 100mA 3-Pin TO-92 T/R IC VREF SHUNT PREC ADJ TO-92-3 Voltage References Adj Shunt IC, PROG SHUNT V-REF, 2.495V, 1%, TO-92 Adjustable Precision Shunt Regulator

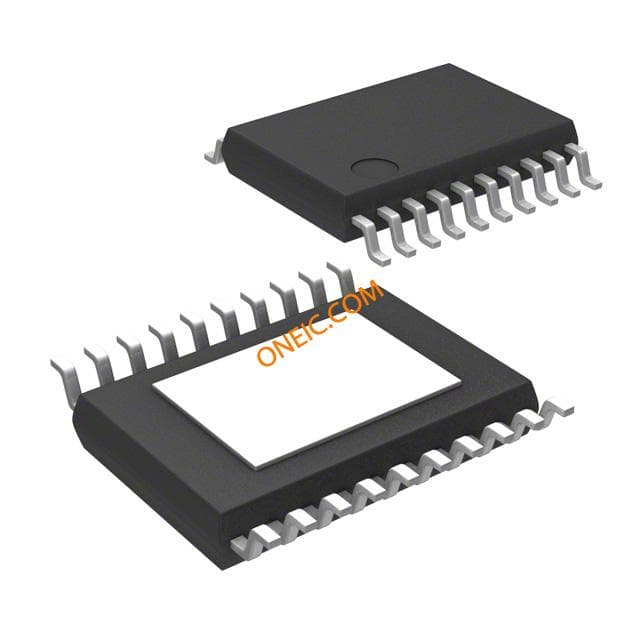

TPS23754PWP
