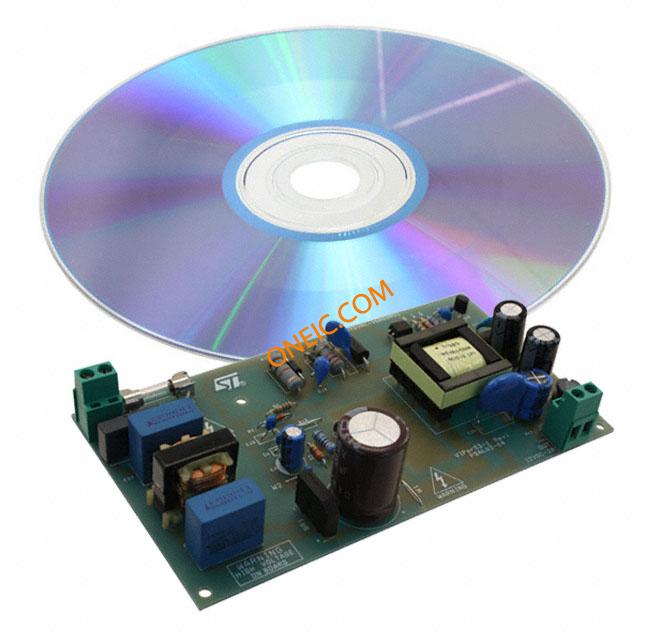

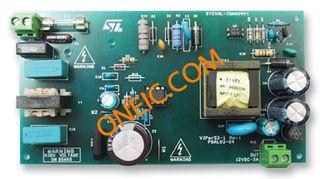

STEVAL-ISA009V1
| 制造商 | STMicroelectronics N.V. |
| 描述 | Viper53E Single Output Reference Design Board With 90 To 264 VAC Input And 24 W Output Power Management IC Development Tools Sngl Output Ref Brd 90-264VAC Input 24W BOARD REF SGL VIPER53 90-264VAC |
| 分类 |
商业参数
| 产品 | Power Management Modules | 产品类别 | Power Management IC Development Tools |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | No | 欧盟RoHS | Compliant |
电气参数
| 额定输出功率 | 24W | 额定电压 | 90 V to 264 V |
| 输出电流 | 2A | 稳压器拓扑 | Flyback |
| 开关频率 | 100kHz | 最小输入电压 | 12V |
机械参数
| 电路板厚度 | Fully Populated | ||
产品信息
| 类型 | Development Kit | 内容 | Board |
| 主要用途 | AC/DC, Primary Side | 输出及类型 | 1, Isolated |
| 工具类型/特性 | VIPer53-E | 使用的IC/零件 | VIPer53 |
环境参数
| 机械寿命 | NRND: Not recommended for new designs. | ||
