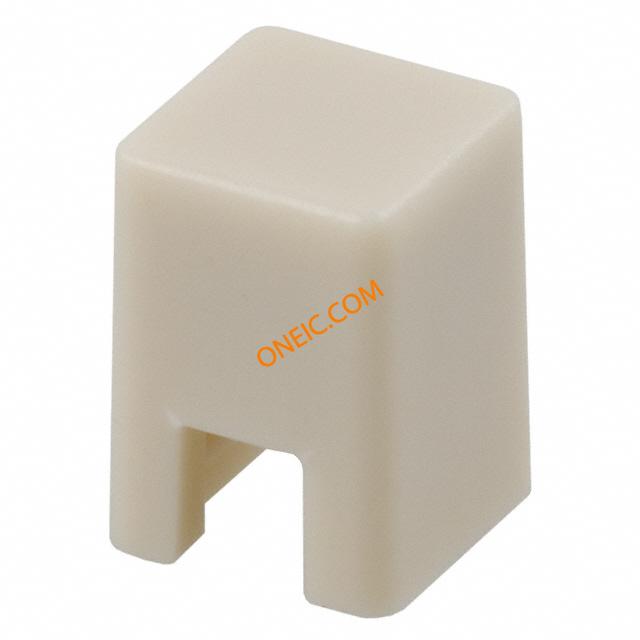

B32-1000
| 制造商 | Omron Corporation |
| 描述 | Switch Accessories GRAY 4X4 B3F KEYCAP Switch Access Tactile Switch Square Key Top Bulk CAP TACTILE SQUARE LIGHT GRAY Cap; Pushbutton; Light Color; 4 mm; 4 mm; RoHS Compliant CAP, LIGHT GREY Cap,Pushbutton;LightColor;4mm;4mm;RoHSCompliant 欧姆龙(OMRON) 微动开关 Button; square; 4x4mm; Colour: ivory Switch Cap Switch Type: Tactile Shape: Square Color: Gray, Light Size: 4.00mm L x 4.00mm W x 5.50mm H Key cap ivory 4 x 4 mm, B32-1000, Omron Electronic Components |
| 分类 |
商业参数
| 交货时间 | 49 Days | 子类别 | Switch Accessories |
| 零件号别名 | 176436 364145 B321000NC | 产品类别 | Switch Accessories |
| 标准包装数量 | 1,000 | 工厂包装数量 | 1000 |
合规参数
| RoHS | Lead free / Not applicable | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 标准 | RoHSCompliant |
| 海关税号 | 85365080 | ||
机械参数
| 尺寸 | 4.00mm L x 4.00mm W x 5.50mm H | 颜色 | Gray, Light |
| 形状 | Square | 宽度 | 2.5 mm |
| 高度 | 4 mm | 长度 | 4 mm |
| 重量 | 0.002 | 包装方式 | Bulk |
| 安装类型 | Slip On | 材料表面处理 | :- |
| 连接器颜色 | :Grey | 按钮/帽颜色 | :Grey |
产品信息
| 类型 | Square Key Top | 系列 | B32 |
| 产品特性 | Dustproof construction ensures highly reliable performance at low voltage and very small | 应用领域 | B3F, B3FS, B3W Series |
| 开关类型 | Tactile Switch | 照明类型 | Non-Illuminated |
| 附件类型 | button | 单元数量 | 5 |
| 行业别名 | B32-1000 | 应用细节 | B3F-1x5x, B3F-3x5x, B3F-6x5x, B3FS-1x5x, B3W-1x5x |
| 适用产品/相关产品 | B3F and B3W Series | ||
环境参数
| 工作温度 | -25C to 70C | 结工作温度 | 70C |
