B3W-1050
| 制造商 | Omron Corporation |
| 描述 | Tactile Switches SPST-NO GP PROJ 6X6 Switch Tactile N.O. SPST Projected Plunger PC Pins 0.05A 24VDC 1000000Cycles 1.57N Thru-Hole Bag Plunger Tactile Switch, SPST-NO 0.05 A @ 24 V dc 3.9mm Switch Tactile N.O. SPST Projected Plunger PC Pins 0.05A 24VDC 1000000Cycle 1.57N Thru-Hole Bag SWITCH, PROJECTED, SPNO SWITCH TACTILE SPST-NO 0.05A 24V Switch,KEY,Sealed,MECHANICAL,SQUARE,NOGROUNDTERM.,PROJECTEDPLUNGER 欧姆龙(OMRON) 微动开关 Microswitch; 1-position; SPST-NO; 0.05A/24VDC; THT; 1.57N; 6x6mm Tactile Switch Mounting: PC Board Operating direction: Vertical Operating force: 160 gf Travel: - Dimensions: 6.5x6 mm PCB Switch 24 VDC 50 mA Through Hole white, B3W-1050, Omron Electronic Components Omron 柱塞 触觉开关 , 单刀单掷 - 常开, 0.05 A@ 24 V 直流 3.9mm |
| 分类 |
商业参数
| 交货时间 | 96 Days | 子类别 | Switch Tactile |
| 零件号别名 | 176987 364117 B3W1050BYOMZ | 产品类别 | Tactile Switches |
| 标准包装数量 | 100 | 工厂包装数量 | 100 |
合规参数
| RoHS | Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85365007 |
电气参数
| 电路 | SPST-NO | 额定电压 | 24 V |
| 极数 | 1 | 开关功能 | Off-Mom |
| 开关电压 | OFF-(ON) | 接触电阻 | :100mohm |
| 介电强度 | :500V | 最大额定电流 | 50 mA |
| 最大触点电流 | :50mA | 绝缘电阻 | :100Mohm |
| 开关功能/额定值 | N.O. | 额定电流 - 滤波器 | :1mA |
| 触点额定电流 | 0.05 A @ 24 V dc | 触点额定值 @ 电压 | :50mA |
| 连接器类型 - 电压输入 | :Solder | 供电电压 (Vcc/Vdd) | :24V |
| 直流触点额定值（阻性负载） | 0.05 A / 24 VDC | ||
机械参数
| 密封 | Rubber | 深度 | :7.3mm |
| 形状 | square | 宽度 | :6mm |
| 高度 | 7.3 | 长度 | :6mm |
| 重量 | 0.003 | 外形尺寸(长x宽) | 6.50mm x 6.00mm |
| 包装方式 | Bag | 引脚样式 | for PCB, straight |
| 本体尺寸 | 6 x 6mm | 端接方式 | PCBPins |
| 触点形式 | SPST | 高度（最大） | 7.3mm |
| 致动器类型 | Plunger | 安装类型 | Through Hole |
| 开关行程 | 0.25mm | 端子类型 | PC Pins |
| 执行器颜色 | White | 连接器类型 | No |
| 接触镀层 | Silver | 安装样式 | Through Hole |
| 执行器长度 | 3.9mm | 操作力 | 1.57 N |
| 总长度 | 6.6 | 连接器间距 | 4.5x6.5mm |
| 端接样式 | Solder Pin | 按钮样式/尺寸 | Projected Plunger |
| 位数 | :10000000 | 执行器方向 | Top Actuated |
| 按钮/帽颜色 | :White | 安装高度（最大） | 7.3 mm |
| 安装孔直径 | 1mm | 开关驱动电平 | SPST |
| 典型触点布局 | SPST-NO | 额定扭矩（oz-in / mNm） | 1.57N |
| 执行器距PCB垂直高度 | 7.30mm | ||
产品信息
| 类型 | Tactile | 系列 | B3W |
| 产品特性 | Sealed - Fully | CAD图纸 | 3D CAD Model |
| 开关类型 | microswitch | 照明类型 | Non-Illuminated |
| 单元数量 | 1 | 行业别名 | B3W-1050 |
| 其他规格 | 0.25mm | 应用细节 | Foraudio,officeandcommunicationsequipment,measuringinstruments,industrialrobots,VCRs,TVs,andvendingmachines |
| 触点配置 | SPST-NO | ||
环境参数
| 机械寿命 | 300,000 Cycles | 开关次数 | :10000000 |
| 防护等级 | IP67 - Dust Tight, Waterproof | 工作温度 | - 25 C to + 70 C |
文档与媒体
相关型号
B32-1200
omron electronics
Switch Access Tactile Switch Square Key Top Bulk CAP TACTILE SQUARE LIGHT GRAY Cap; Pushbutton; Light Color; 9 mm; 9 mm; RoHS Compliant Switch Accessories GRY 9X9 B3F KEYCAP CAP, CREAM Cap,Pushbutton;LightColor;9mm;9mm;RoHSCompliant 欧姆龙(OMRON) 微动开关 Button; square; Application: B3F-4x5x, B3F-5x5x, B3W-4x5x; 9x9mm Switch Cap Switch Type: Tactile Shape: Square Color: Gray, Light Size: 9.00mm L x 9.00mm W x 5.50mm H Key cap ivory 9 x 9 mm, B32-1200, Omron Electronic Components
B32-1040
omron electronics
Switch Access Tactile Switch Square Key Top Bulk CAP TACTILE SQUARE BLUE Accessory; Blue; 4 mm; B32 Series; PCB; RoHS Compliant Switch Accessories BLUE 4X4 B3F KEYCAP CAP, BLUE Accessory;Blue;4mm;B32Series;PCB;RoHSCompliant 欧姆龙(OMRON) 其它传感器附件 Switch Cap Switch Type: Tactile Shape: Square Color: Blue Size: 4.00mm L x 4.00mm W x 5.50mm H Key cap blue 4 x 4 mm, B32-1040, Omron Electronic Components
B32-2010
omron electronics

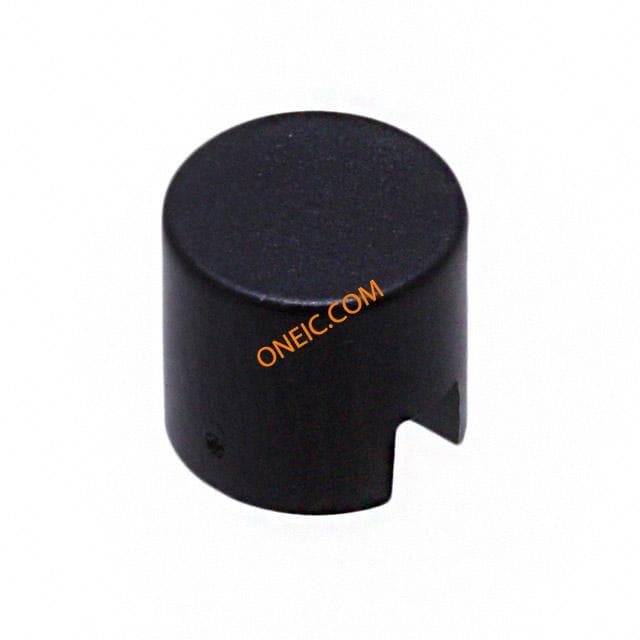

Switch Access Tactile Switch Round Key Top Bulk CAP TACTILE ROUND BLACK Black Tactile Switch Cap For Use With B3F Series, B3W Series Switch Accessories Key Cap CAP, 6MM, BLACK, FOR B3F/B3W Button; round; Ø6mm; Colour: black Switch Cap Switch Type: Tactile Shape: Round Color: Black Size: 6.00mm Dia x 5.50mm H Key cap black, B32-2010, Omron Electronic Components 黑色 轻触式开关帽, 使用于B3F 系列、B3W 系列
