B3FS-1052

制造商	Omron Corporation

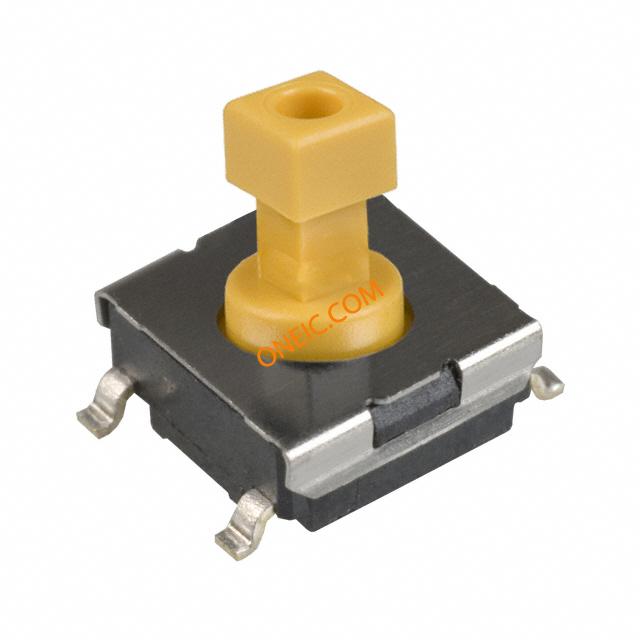

描述	Tactile Switches 6x6x7.3mm 150gf Switch Tactile N.O. SPST Projected Plunger Gull Wing 0.05A 24VDC 1.47N SMD Bag SWITCH TACTILE SPST-NO 0.05A 24V Microswitch; 1-position; SPST-NO; 0.05A/24VDC; SMT; 1.47N; 6x6mm Tactile Switch Mounting: Surface Mount Operating direction: Vertical Operating force: 150 gf Travel: - Dimensions: 6.3x6 mm PCB Switch 24 VDC 50 mA SMD yellow, B3FS-1052, Omron Electronic Components
分类	开关轻触开关标准轻触开关

对参数有疑问？问 AI 助手

商业参数

零件号别名	3121197 363960 B3FS-1052BYOMZ B3FS1052BYOMZ	产品类别	Tactile Switches
标准包装数量	100	工厂包装数量	100

合规参数

RoHS

Lead free / RoHS Compliant

欧盟RoHS

Compliant

电气参数

电路	SPST-NO	测试电压	250
额定电压	24 V	极数	1
开关功能	Off-Mom	开关电压	OFF-(ON)
接触电阻	100mΩ	最大额定电流	50 mA
绝缘电阻	100MΩ	开关功能/额定值	N.O.
触点额定值 @ 电压	0.05A @ 24VDC	直流触点额定值（阻性负载）	0.05 A / 24 VDC

机械参数

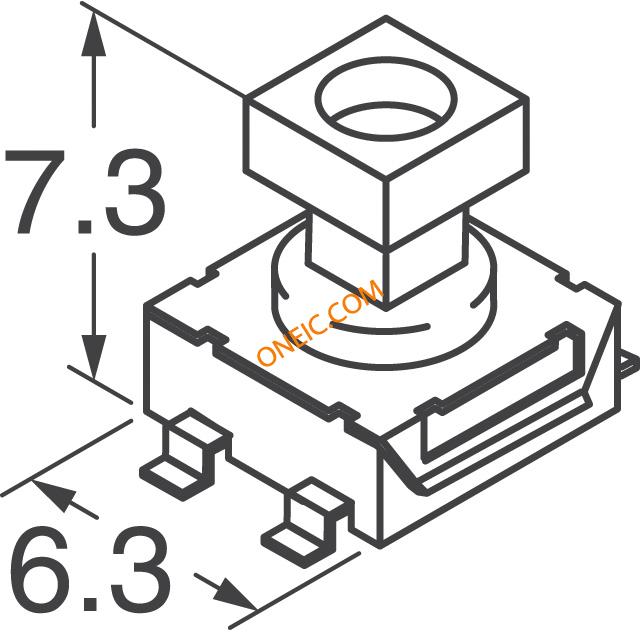

尺寸	6 x 6 x 7.3 mm	深度	8
形状	square	高度	7.3
重量	0.28 g	外形尺寸(长x宽)	6.30mm x 6.00mm
包装方式	Bag	引脚样式	for PCB
本体尺寸	6 x 6mm	触点形式	SPST
高度（最大）	7.3mm	致动器类型	Plunger for Cap
安装类型	Surface Mount	开关行程	0.25mm
端子类型	Gull Wing	执行器颜色	Yellow
连接器类型	No	接触镀层	Silver
安装样式	SMD/SMT	驱动力	1.47 N
执行器长度	4.7	操作力	150gf
触头材料	ABS	总长度	6.3

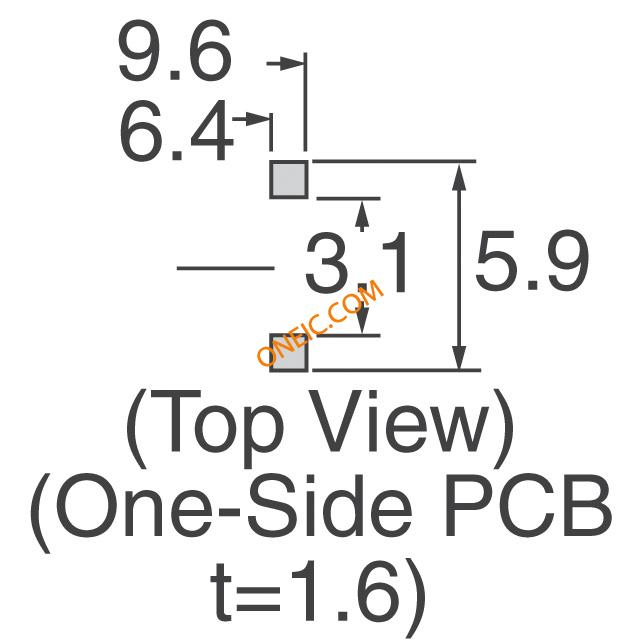

尺寸/外形	6.3x6 mm	连接器间距	5.9x9.6mm
端接样式	Gull Wing	背景色	yellow
按钮样式/尺寸	Projected Plunger	位数	1-position
执行器方向	Top Actuated	安装高度（最大）	7.3 mm
开关驱动电平	SPST	典型触点布局	SPST-NO
额定扭矩（oz-in / mNm）	1.47N	执行器距PCB垂直高度	7.30mm

产品信息

类型	Switches	系列	B3FS
方向	Vertical	开关类型	microswitch
照明类型	Non-Illuminated	卡标准	Tactile Switch
电气寿命	300000	单元数量	5
其他规格	0.25mm	触点配置	SPST-NO

环境参数

机械寿命

300,000 Cycles

工作温度

-25°C ~ 70°C

文档与媒体

PDF 文档

B3F (6x6) Plunger June/2010

PDF 文档

How to Read Date Codes

PDF 文档

en-b3fs.pdf

PDF 文档

B3FS_1110.pdf
