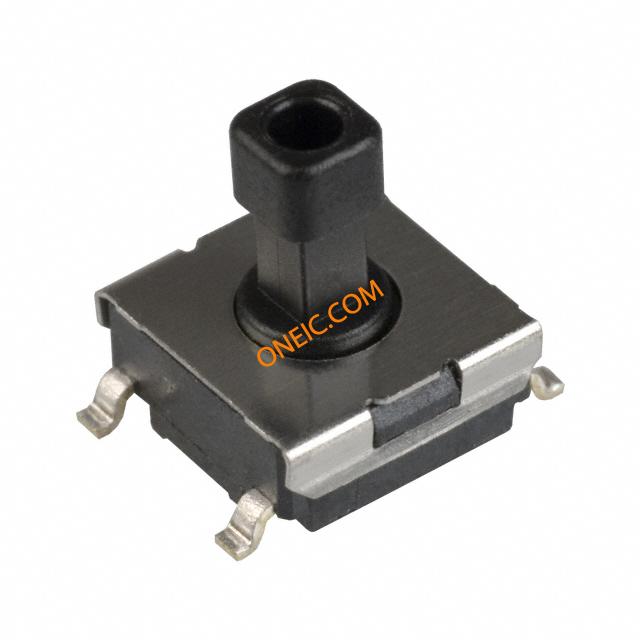

B3FS-1050

制造商	Omron Corporation
描述	Tactile Switches 6x6x7.3mm 100gf SWITCH TACTILE SPST-NO 0.05A 24V Plunger Tactile Switch, SPST-NO 0.05 A @ 24 V dc 4.7mm Switch Tactile N.O. SPST Projected Plunger Gull Wing 0.05A 24VDC 0.98N SMD Bag SWITCH, SPNO, EXTENDED Microswitch; 1-position; SPST-NO; 0.05A/24VDC; SMT; 0.98N; 6x6mm Tactile Switch Mounting: Surface Mount Operating direction: Vertical Operating force: 100 gf Travel: - Dimensions: 6.3x6 mm PCB Switch 24 VDC 50 mA SMD black, B3FS-1050, Omron Electronic Components Omron 柱塞触觉开关 , 单刀单掷 - 常开, 0.05 A@ 24 V 直流 4.7mm
分类	开关轻触开关标准轻触开关

对参数有疑问？问 AI 助手

商业参数

交货时间	96 Days	子类别	Switch Tactile
零件号别名	680364 B3FS1050BYOMZ B3FS6001A	产品类别	Tactile Switches
标准包装数量	1,000	工厂包装数量	100

合规参数

RoHS	Lead free / RoHS Compliant	SVHC	:No SVHC (20-Jun-2013)
海关税号	85365007

电气参数

电路	SPST-NO	额定电压	24 V
极数	:1	开关功能	Off-Mom
开关电压	OFF-(ON)	接触电阻	:100mohm
最大额定电流	50 mA	最大触点电流	:50mA
绝缘电阻	100MΩ	开关功能/额定值	:Off-On
额定电流 - 滤波器	:1mA	触点额定电流	0.05 A @ 24 V dc
触点额定值 @ 电压	0.05A @ 24VDC	连接器类型 - 电压输入	:Solder
供电电压 (Vcc/Vdd)	:24V	直流触点额定值（阻性负载）	0.05 A / 24 VDC

机械参数

深度	:6mm	形状	square
宽度	:6.3mm	高度	:9.5mm
长度	:7.3mm	重量	0.023
外形尺寸(长x宽)	6.30mm x 6.00mm	包装方式	Bag
引脚样式	for PCB	本体尺寸	6 x 6mm
触点形式	SPST	高度（最大）	:9.5mm
致动器类型	Plunger for Cap	安装类型	Surface Mount
开关行程	0.25mm	端子类型	Surface Mount
执行器颜色	black	连接器类型	No
接触镀层	Silver	安装样式	SMD/SMT
执行器长度	4.7mm	操作力	100gf
触头材料	Silver Plated	连接器间距	5.9x9.6mm
端接样式	Gull Wing	位数	1-position
执行器方向	Top Actuated	按钮/帽颜色	:Black
安装高度（最大）	7.3 mm	开关驱动电平	:Top
典型触点布局	SPST-NO	额定扭矩（oz-in / mNm）	0.98N
执行器距PCB垂直高度	7.30mm

产品信息

系列	B3FS	CAD图纸	3D CAD Model
开关类型	microswitch	照明类型	Non-Illuminated
单元数量	5	行业别名	B3FS-1050
其他规格	0.25mm	触点配置	SPST-NO

环境参数

机械寿命	1,000,000 Cycles	开关次数	:1000000
工作温度	-25°C ~ 70°C

文档与媒体

PDF 文档

B3F (6x6) Plunger June/2010

PDF 文档

How to Read Date Codes

PDF 文档

en-b3fs.pdf

PDF 文档

B3FS_1110.pdf
