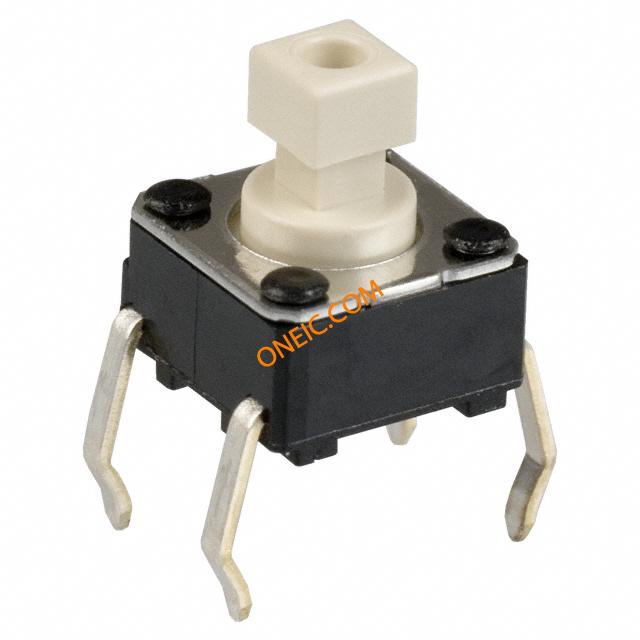

B3F-1050
| 制造商 | Omron Corporation |
| 描述 | Tactile Switches 6X6 Proj 7.3mm Btn Force 100g w/o Grd Switch Tactile N.O. SPST Projected Plunger PC Pins 0.05A 24VDC 0.98N Thru-Hole Bag SWITCH TACTILE SPST-NO 0.05A 24V White Plunger Tactile Switch, SPST-NO 0.05 A @ 24 V dc 3mm SWITCH, SPST, 0.05A, 24VDC, THT Switch,FluxtightMechanicalKeyswitch,,50MA@24VDC,NoGroundTerm.,Project.Plun 欧姆龙(OMRON) 轻触式开关 Microswitch; 1-position; SPST-NO; 0.05A/24VDC; THT; 0.98N; 6x6mm Tactile Switch Mounting: PC Board Operating direction: Vertical Operating force: 100 gf Travel: - Dimensions: 6x6 mm PCB Switch 24 VDC 50 mA Through Hole ivory, B3F-1050, Omron Electronic Components Omron 白色 柱塞 触觉开关 , 单刀单掷 - 常开, 0.05 A@ 24 V 直流 3mm |
| 分类 |
商业参数
| 交货时间 | 20 Days | 子类别 | Switch Tactile |
| 零件号别名 | 176433 363979 OMRB3F1050 | 产品类别 | Tactile Switches |
| 标准包装数量 | 100 | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85365007 |
电气参数
| 电路 | SPST-NO | 额定电压 | 24 V |
| 极数 | 1 | 开关功能 | Off-Mom |
| 开关电压 | OFF-(ON) | 接触电阻 | :100mohm |
| 介电强度 | :500V | 最大额定电流 | 50 mA |
| 最大触点电流 | :50mA | 绝缘电阻 | :100Mohm |
| 开关功能/额定值 | N.O. | 额定电流 - 滤波器 | :1mA |
| 触点额定电流 | 0.05 A @ 24 V dc | 触点额定值 @ 电压 | 0.05A @ 24VDC |
| 连接器类型 - 电压输入 | :Solder | 供电电压 (Vcc/Vdd) | :24V |
| 直流反向电压（Vr）（最大） | 24V | 直流触点额定值（阻性负载） | 0.05 A / 24 VDC |
机械参数

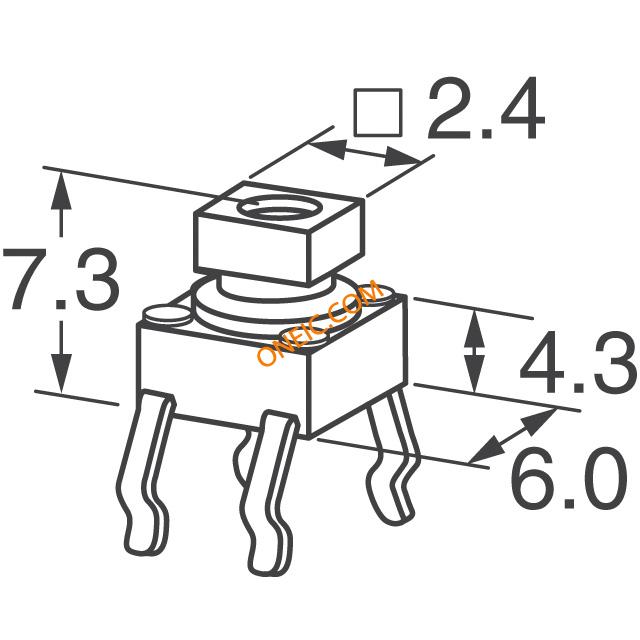

| 深度 | 6 mm | 形状 | square |
| 宽度 | :6mm | 高度 | 7.3 mm |
| 长度 | :6mm | 重量 | 0.026 |
| 外形尺寸(长x宽) | 6.00mm x 6.00mm | 包装方式 | Bag |
| 引脚样式 | for PCB, straight | 本体表面处理 | Miniature |
| 本体尺寸 | 6 x 6mm | 端接方式 | PCBPins |
| 触点形式 | SPST | 高度（最大） | 7.3mm |
| 致动器类型 | Plunger for Cap | 安装类型 | Through Hole |
| 开关行程 | 0.25mm | 端子类型 | PC Pins |
| 执行器颜色 | White | 连接器类型 | No |
| 接触镀层 | Gold | 安装样式 | Through Hole |
| 执行器长度 | 3mm | 操作力 | 100gf |
| 触头材料 | Gold Plated | 总长度 | 6 mm |
| 包装数量 | 100 | 连接器间距 | 4.5x6.5mm |
| 端接样式 | PC Pin | 按钮样式/尺寸 | Projected Plunger |
| 位数 | :10000000 | 执行器方向 | Top Actuated |
| 按钮/帽颜色 | :White | 安装高度（最大） | 7.3 mm |
| 安装孔直径 | 1mm | 开关驱动电平 | SPST |
| 典型触点布局 | SPST-NO | 照明类型及颜色 | Not Required |
| 触点材料 - 镀层 | silver plated | 额定扭矩（oz-in / mNm） | 0.98N |
| 执行器距PCB垂直高度 | 7.30mm | ||
产品信息
| SPG | 100 | 类型 | Miniature |
| 系列 | B3F | 产品特性 | ProjectedPlunger |
| CAD图纸 | 3D CAD Model | 开关类型 | microswitch |
| 照明类型 | Non-Illuminated | 电气寿命 | 1000000 |
| 单元数量 | 5 | 关联项目 | B32-1000, B32-1010, B32-1030, B32-1060, B32-1080 |
| 行业别名 | B3F-1050 | 其他规格 | 0.25mm |
| 触点配置 | SPST-NO | ||
环境参数
| 机械寿命 | 1,000,000 Cycles | 开关次数 | :10000000 |
| 工作温度 | -25°C ~ 70°C | ||
