点击放大查看

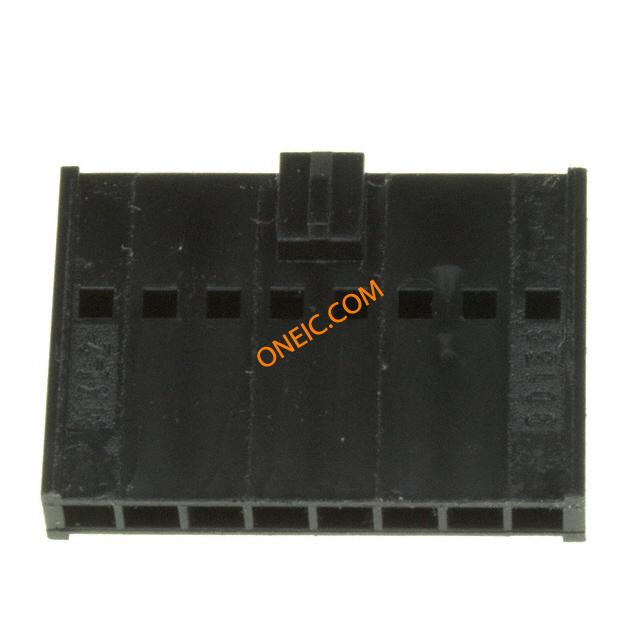

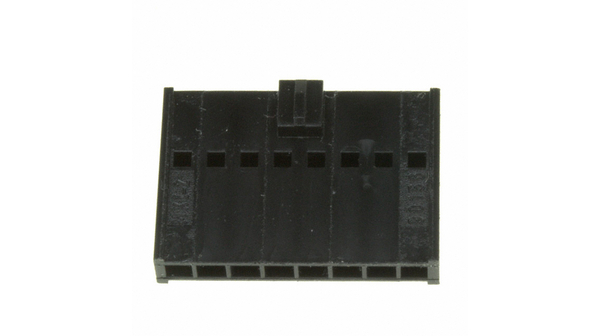

90156-0148
| 制造商 | Molex, LLC |
| 描述 | Conn Housing RCP 8 POS 2.54mm Crimp ST Bag CONN HOUSING 8POS .100" CRIMP 8 way single row locking housing Headers & Wire Housings 8P HOUSING HOUSING FRICTION LOCK, 8WAY Crimp housing 1 x 8P, 90156-0148, Molex Molex C-GRID III 系列 2.54mm 节距 8 路 直 母 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | C-GRID | 零件号别名 | 0901560148 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 3500 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 认证机构 | :CSA, UL | ||
电气参数
| 量程（°/s） | :MOLEX - C-Grid III 90156 Series | 额定电压 | :350V |
| 接触电阻 | :20mohm | 最大额定电流 | 3 A |
| 绝缘电阻 | :5000Mohm | ||
机械参数
| 颜色 | Black | 深度 | 15.24mm |
| 间距 | 0.100" (2.54mm) | 宽度 | 5.35mm |
| 长度 | 21.38mm | 重量 | 0.063 |
| 材料（通用） | :Polyphenylene Oxide UL94V-1 | 包装方式 | Bulk |
| 端接方式 | :Crimp | 触头类型 | Female Socket |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Receptacle |
| 接触镀层 | :- | 紧固类型 | Locking Ramp |
| 安装样式 | Wire | 排数 | 1 |
| 触头材料 | :- | 壳体材料 | PPO |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 触点数 | 8 | 接触件端接 | Crimp |
| 位数 | 8 | 第一连接器安装类型 | :Cable |
产品信息
| 备注 | Contacts Not Provided | 连接器性别 | Female |
| 系列 | 90156 | CAD图纸 | 3D CAD Model |
| 产品子类型 | Receptacles / Sockets - Housings | 适用产品/相关产品 | C-Grid III Connector |
环境参数
| 工作温度 | :105°C | ||
文档与媒体
相关型号
0901192109
molex
Contact SKT Crimp ST Cable Mount Bag CONN SOCKET 22-24AWG .100" TIN Conn Contact F 1 POS Crimp ST Cable Mount Bag Contact; female; 22÷24AWG; C-Grid III; tinned; crimped; in bulk; 3A
0901190110
molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 22-24AWG GOLD Contact; female; 22÷24AWG; C-Grid III; tinned; crimped; tape; 3A

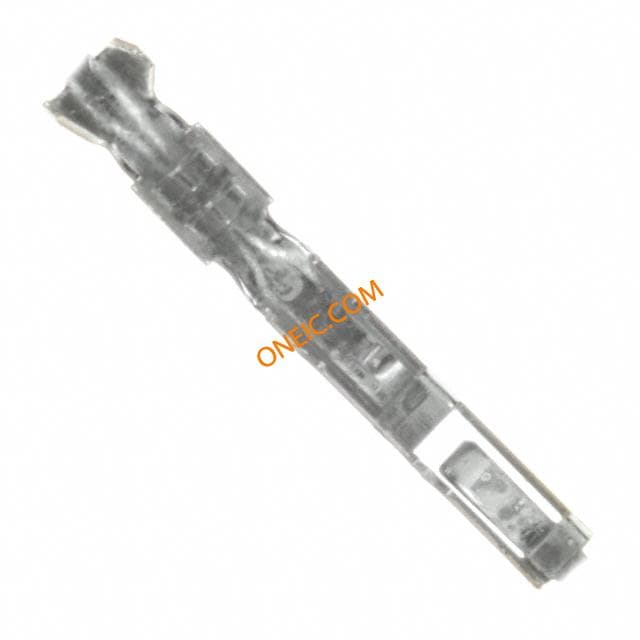

0901190109
molex
Contact SKT Crimp ST Cable Mount T/R CONN TERM FEMALE 22-24AWG TIN Contact; female; 22÷24AWG; C-Grid III; tinned; crimped; tape; 3A
0901192122
molex
Contact SKT Crimp ST Cable Mount Loose Piece C-GRID TERM FEM CRP 26/28AWG
0901190122
molex
Contact SKT Crimp ST Cable Mount Reel C-GRID TERM FEM CRP 26/28AWG
0901192120
molex
Contact SKT Crimp ST Cable Mount Bag CONN SOCKET 26-28AWG .100" TIN

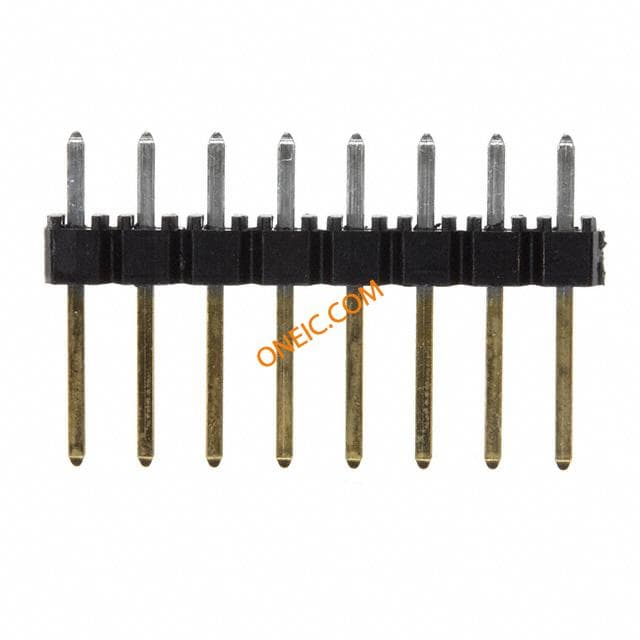

0901200768
molex
Conn Unshrouded Header HDR 8 POS 2.54mm Solder ST Thru-Hole Bag Conn Unshrouded Header HDR 8 POS 2.54mm Solder ST Thru-Hole Tray CONN HEADER 8POS .100" STR GOLD

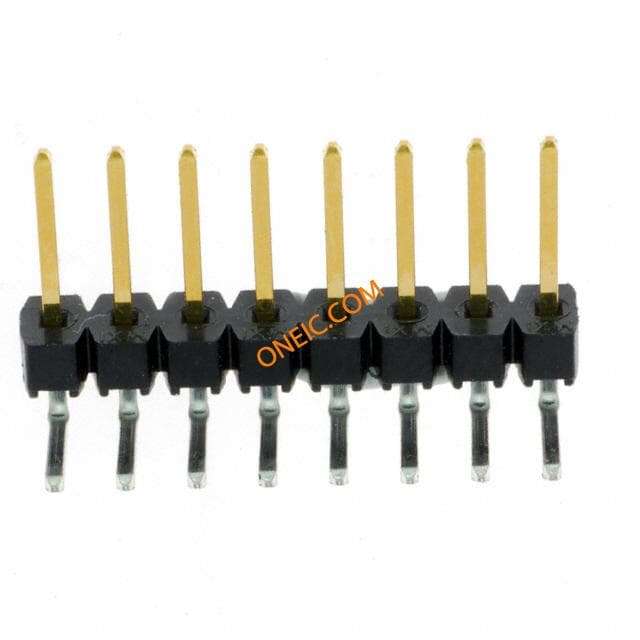

0901210768
molex
Conn Unshrouded Header HDR 8 POS 2.54mm Solder RA Thru-Hole Bag Conn Unshrouded Header HDR 8 POS 2.54mm Solder RA Thru-Hole Tray CONN HEADER 8POS .100" R/A GOLD
69008-0003
molex
Connector Accessories Extraction Aid Tool Hand Tools EXTRACTION TOOL Extraction tool for crimp terminal Application Tooling Type Extraction Aid Tool EXTRACTION TOOL Extraction tool, 69008-0003, Molex Molex HANDTOOL 系列 压接拔取工具
90119-2111
Molex
Headers & Wire Housings FM C-GRID TERM 22/24AWG CONN TERM FEMALE 22-24AWG C-Grid III Terminal 22-24 AWG gold, bag Contact SKT Crimp ST Cable Mount Loose Piece TERMINAL, FEMALE, AWG22-24 C-GRID TERM FEM CRP LP AU-F 22/24AWG Contact; female; 22÷24AWG; C-Grid III; gold plated; crimped; 3A Molex C-GRID III 系列 母 压接接线端子, 压接, 镀金镀镍触点

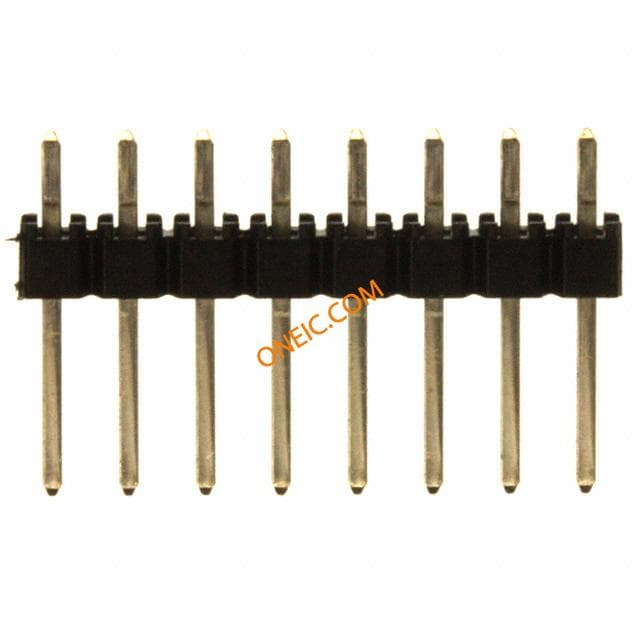

90120-0128
molex
Conn Unshrouded Header HDR 8 POS 2.54mm Solder ST Thru-Hole Bag CONN HEADER 8POS .100" STR TIN Molex 90120 Series 2.54mm Pitch 8 Way 1 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings 8CKT SR VERT HDR Conn Unshrouded Header HDR 8 POS 2.54mm Solder ST Thru-Hole Tray Molex C-GRID III 系列 2.54mm节距 8路 (1排) 直 引脚管座, 焊接端接, 3A , 通孔
76650-0177
molex
COMPONENT KITS, WIRE TO BOARD KIT 2,3,4,5,6,8POS 3A THROUGH HOLE MOUNTING RECEPTACLE, VERTICAL HEADER 2.54MM PITCH 350V 24-22 WIRE SIZE KIT CONN C-GRID III SINGLE WTB Headers & Wire Housings CGRID3 WTB 1ROW KIT Kit Description:Single Row Vertical Header and ReceptacleKit Category:Wire to BoardSolution:Off the BoardPackaging:Clamshell: 12.75" by 6"Num. Pieces:99 C-GRID III CONNECTOR KIT SINGLE ROW VERT HEADER & RECEPT
90119-2121
molex
Contact SKT Crimp ST Cable Mount Bag Headers & Wire Housings LOOSE TERMINALS Crimp contact terminal,26-28 awg CRIMP SOCKET, 26-28AWG CONTACT, FEMALE, 28-26AWG, CRIMP C-GRID TERM FEM CRP LP AU-E 26/28AWG Crimp socket 3 A Female 28...26 AWG, 90119-2121, Molex Molex C-GRID III 系列 母 压接接线端子, 压接, 镀金镀镍触点
0901192110
Molex
Contact SKT Crimp ST Cable Mount Bag CONN SOCKET 22-24AWG .100" GOLD Contact; female; 22÷24AWG; C-Grid III; gold plated; crimped; 3A
0901192121
Molex
Contact SKT Crimp ST Cable Mount Bag CONN SOCKET 26-28AWG .100" GOLD Contact; female; 26÷28AWG; C-Grid III; gold plated; crimped; 3A

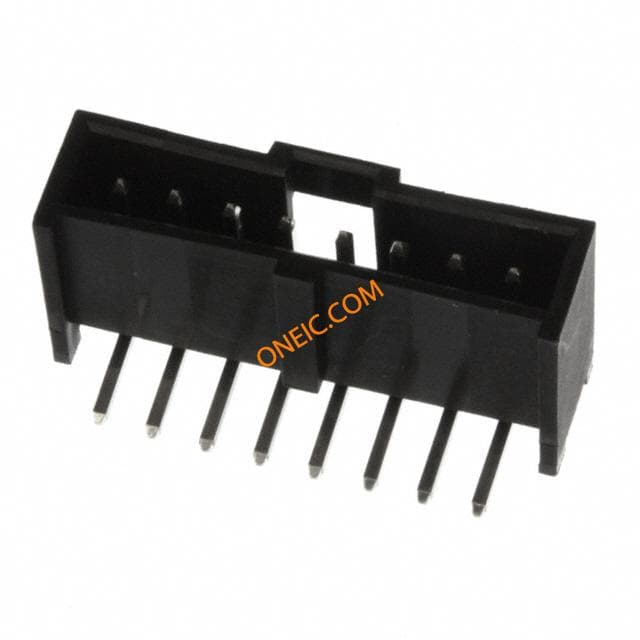

90136-2108
Molex Connector Corporation
CONN HEADER 8POS .100" R/A TIN Headers & Wire Housings 8P SHROUDED HEADER 2.54mm Pitch C-Grid III™ Header, Single Row, Right Angle, Shrouded, 8 Circuits, 4µm Tin/Lead (Sn) over Nickel (Ni)

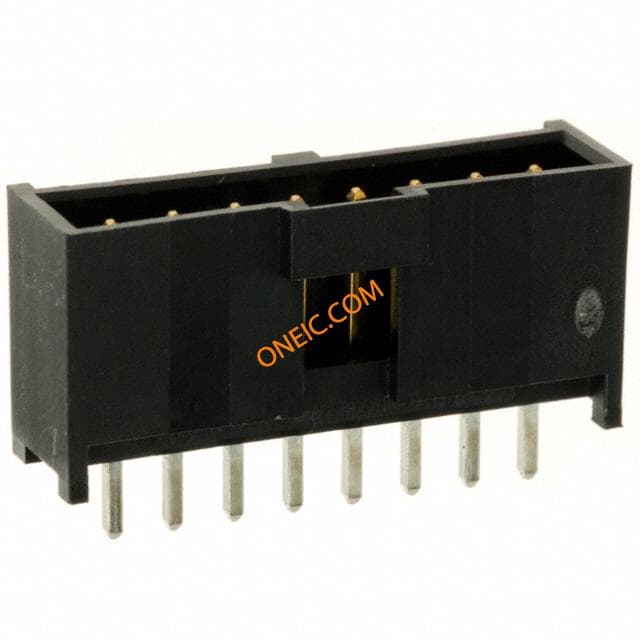

90136-1208
Molex Connector Corporation
CONN HEADER 8POS .100" STR GOLD Molex 90136 Series 2.54mm Pitch 8 Way 1 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings 2.54MM CGRIDIII HDR 8P V SR SHRD AU-E Conn Shrouded Header HDR 8 POS 2.54mm Solder ST Thru-Hole Tray HEADER, VERTICAL, 1ROW, 8WAY PCB header 1 x 8P, 90136-1208, Molex Molex C-GRID III 系列 2.54mm节距 8路 (1排) 直 PCB 针座, 焊接端接, 3A , 通孔

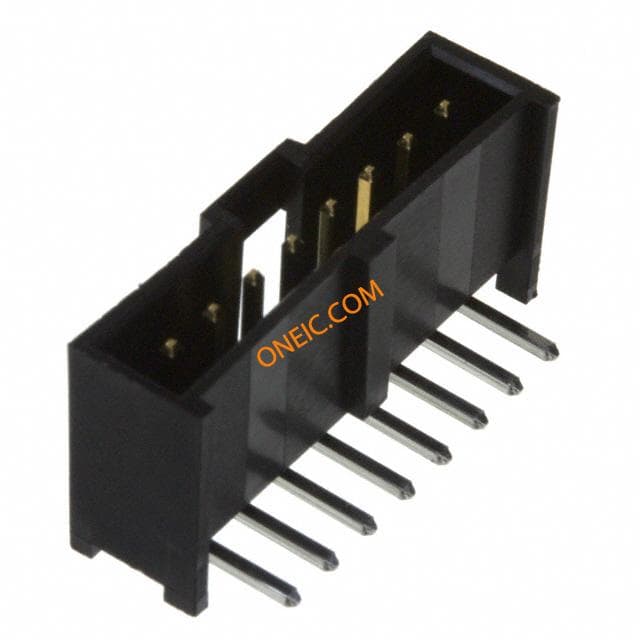

90136-2208
Molex Connector Corporation
CONN HEADER 8POS .100" R/A GOLD Molex 90136 Series 2.54mm Pitch 8 Way 1 Row Right Angle PCB Header, Solder Termination, 3A Headers & Wire Housings 2.54MM CGRIDIII HDR 8P R/A SR SHRD AU Conn Shrouded Header HDR 8 POS 2.54mm Solder RA Thru-Hole Tray PCB header 1 x 8P, 90136-2208, Molex Molex C-GRID III 系列 8路 2.54mm节距 (1排) 直角 PCB 针座 , 焊接端接, 3A, 通孔

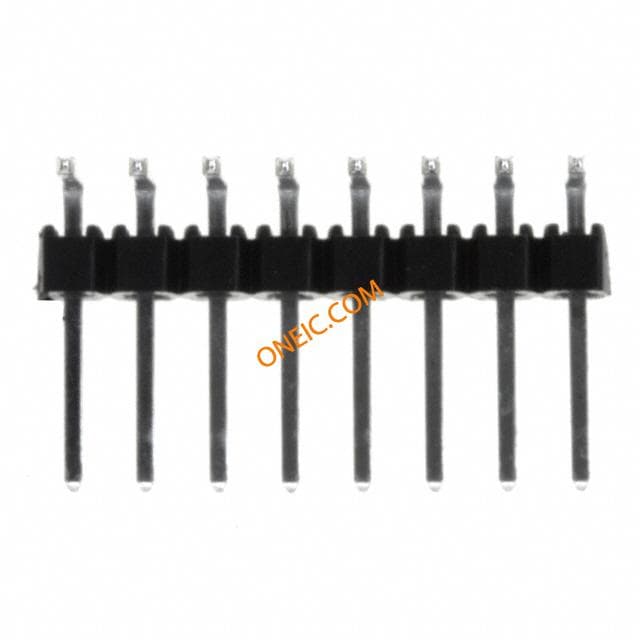

90121-0128
Molex Connector Corporation
CONN HEADER 8POS .100" R/A TIN Headers & Wire Housings 2.54MM CGRIDIII HDR 8P R/A SR TIN Conn Unshrouded Header HDR 8 POS 2.54mm Solder RA Thru-Hole Tray

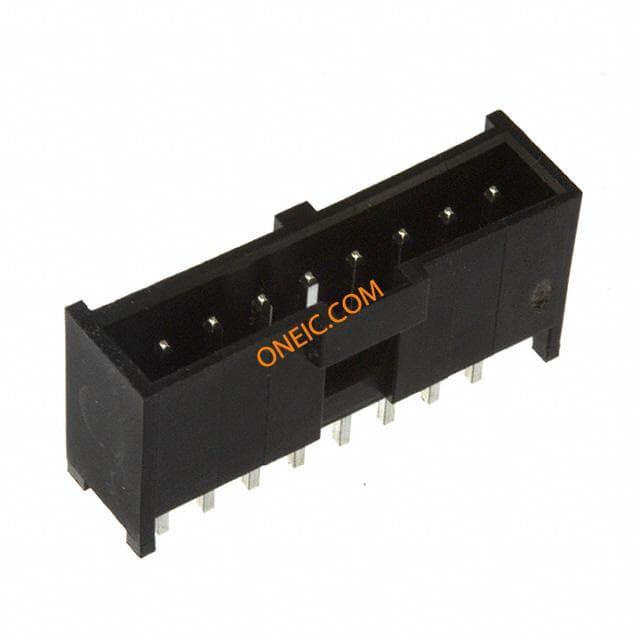

90136-1108
