0901200768
| 制造商 | Molex, LLC |
| 描述 | Conn Unshrouded Header HDR 8 POS 2.54mm Solder ST Thru-Hole Bag Conn Unshrouded Header HDR 8 POS 2.54mm Solder ST Thru-Hole Tray CONN HEADER 8POS .100" STR GOLD |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 20 mohm | 最大额定电流 | 3/Contact A |
| 最小输入电压 | 350VDC|350VAC | 最小供电电压 | 350V |
机械参数
| 颜色 | Black | 深度 | 2.54 mm |
| 间距 | 0.100" (2.54mm) | 高度 | 9.25 mm |
| 包装方式 | Tray | 端接方式 | Solder |
| 触头类型 | Male Pin | 外壳颜色 | Black |
| 安装类型 | Through Hole | 连接器类型 | Header, Unshrouded |
| 接触镀层 | Gold | 安装样式 | Through Hole |
| 排数 | 1 | 触头材料 | Brass |
| 壳体材料 | Polyester | 总长度 | 20.32 mm |
| 触点数 | 8 | 位数 | 8 |
| 接触长度 - 配合 | 0.266" (6.75mm) | 接触镀层厚度 | 15µin (0.38µm) |
产品信息
| 类型 | Unshrouded Header | 连接器性别 | HDR |
| 加载位置数 | All | ||
环境参数
| 工作温度 | -55C to 125C | ||
文档与媒体
相关型号

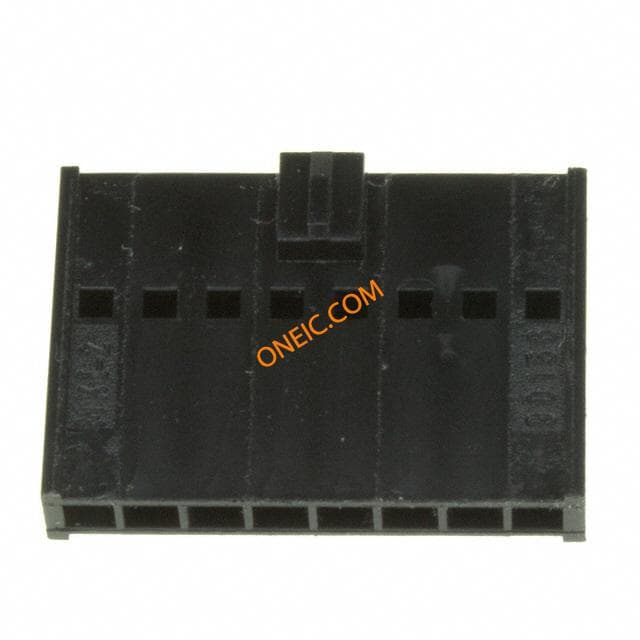

90156-0148
molex
Conn Housing RCP 8 POS 2.54mm Crimp ST Bag CONN HOUSING 8POS .100" CRIMP 8 way single row locking housing Headers & Wire Housings 8P HOUSING HOUSING FRICTION LOCK, 8WAY Crimp housing 1 x 8P, 90156-0148, Molex Molex C-GRID III 系列 2.54mm 节距 8 路 直 母 压接连接器外壳

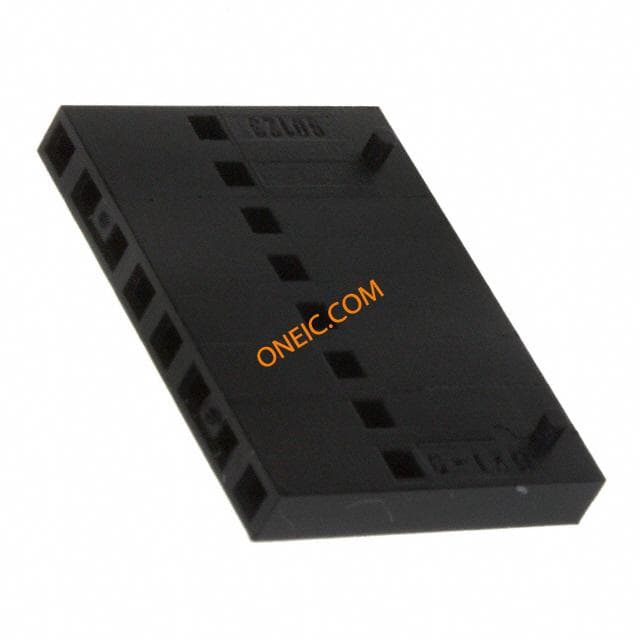

90123-0108
