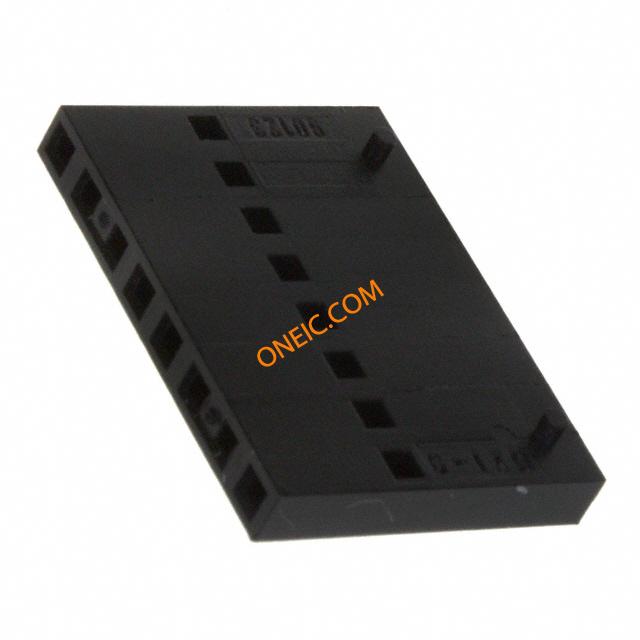

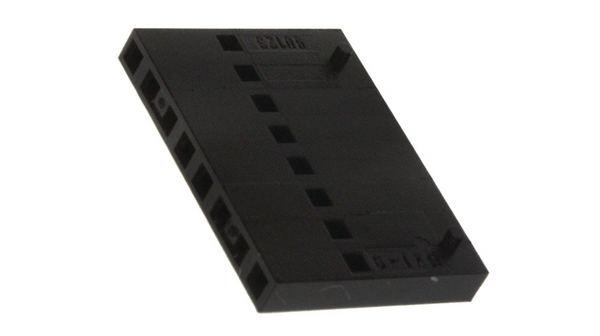

90123-0108
| 制造商 | Molex, LLC |
| 描述 | Conn Housing RCP 8 POS 2.54mm Crimp ST Bag CONN HOUSING 8POS .100" SINGLE 8 way single row housing Headers & Wire Housings 2.54MM CGRIDIII HSG 8P SR W/2POL BTTN 2.54mm Pitch C-Grid III™ Modular Crimp Housing Single Row, 2 Polarizing Buttons, 8 Circuits Crimp housing 1 x 8P, 90123-0108, Molex Molex C-GRID III 系列 2.54mm 节距 8 路 直 母 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | C-GRID | 零件号别名 | 0901230108 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 2000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 极数 | 1 x 8 | 最大额定电流 | 3 A |
| 连接器类型 - 电压输入 | Crimp | ||
机械参数
| 颜色 | Black | 深度 | 15.24mm |
| 间距 | 0.100" (2.54mm) | 宽度 | 3.43mm |
| 长度 | 20.32mm | 包装方式 | Bulk |
| 方向 | 直 | 触点形式 | Female Socket |
| 触头类型 | Female Socket | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Receptacle | 安装样式 | Wire |
| 排数 | 1 | 连接器样式 | Free hanging/cable mount |
| 壳体材料 | PPO | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 触点数 | 8 |
| 接触件端接 | Crimp | 位数 | 8 |
| 第一连接器极性 | Female | ||
产品信息
| 备注 | Contacts Not Provided | 设计类型 | Female housing |
| 连接器性别 | Female | 系列 | 90123 |
| 产品特性 | Polarizing Key | CAD图纸 | 3D CAD Model |
| 主要用途 | Polarizing Key | 产品子类型 | Receptacles / Sockets - Housings |
| 基础产品编号 | 90123 | 输出配置 | Free Hanging (In-Line) |
