点击放大查看

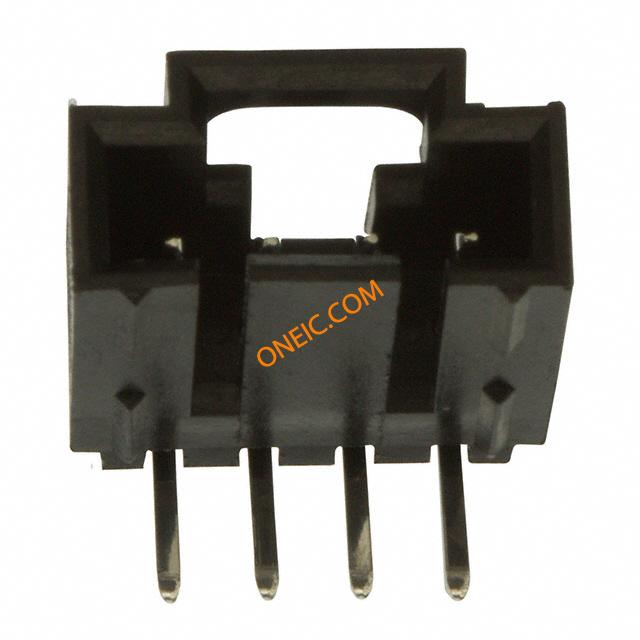

0705530038
| 制造商 | Molex, LLC |
| 描述 | Conn Shrouded Header HDR 4 POS 2.54mm Solder RA Thru-Hole Tube CONN HDR RT ANG 4POS .100 TIN |
| 分类 |
商业参数
| 标准包装数量 | Rail / Tube | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 30 mohm | 最大额定电流 | 3/Contact A |
| 最小输入电压 | 250V | 最小供电电压 | 250V |

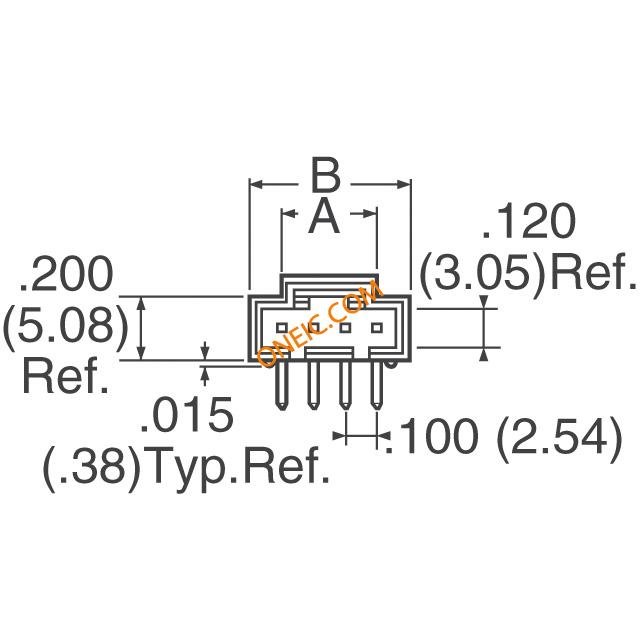

机械参数
| 颜色 | Black | 深度 | 13.59 mm |
| 间距 | 2.54 mm | 高度 | 6.99 mm |
| 包装方式 | Tube | 端接方式 | Solder |
| 触头类型 | Male Pin | 外壳颜色 | Black |
| 安装类型 | Through Hole | 连接器类型 | Header, Shrouded |
| 接触镀层 | Tin Over Nickel | 安装样式 | Through Hole |
| 排数 | 1 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polyester | 总长度 | 12.71 mm |
| 触点数 | 4 | 位数 | 4 |
| 接触长度 - 配合 | 0.240" (6.10mm) | 接触镀层厚度 | 150µin (3.81µm) |
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 加载位置数 | All | ||
环境参数
| 工作温度 | -40C to 105C | ||
文档与媒体
相关型号

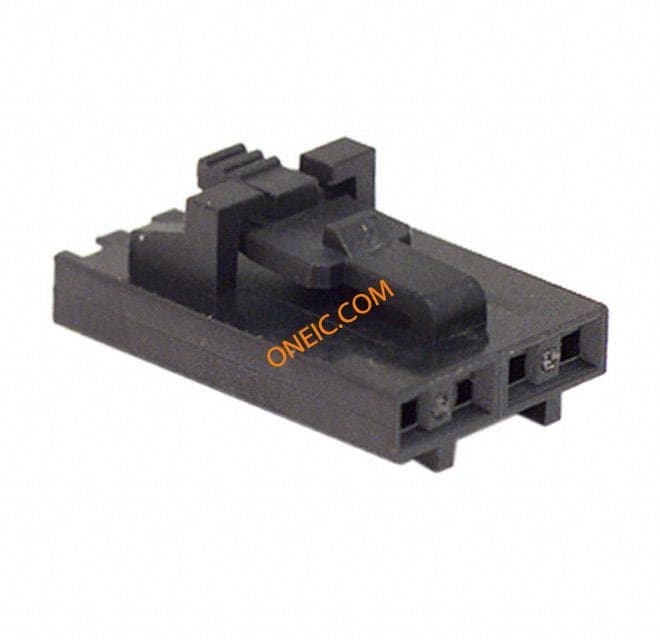

0050579404
