点击放大查看

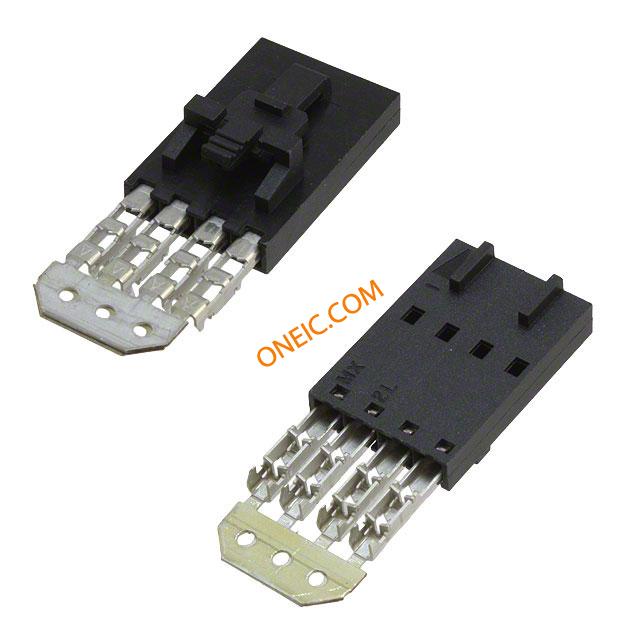

0014562042

制造商	Molex, LLC
描述	Conn IDC Connector F 4 POS 2.54mm IDT ST Cable Mount Tube CONN IDC 4POS .100 GOLD 24AWG
分类	连接器解决方案矩形连接器电源混合矩形连接器

对参数有疑问？问 AI 助手

商业参数

标准包装数量

1,590

合规参数

RoHS

Lead free / RoHS Compliant

欧盟RoHS

Compliant

电气参数

接触电阻	15	最大额定电流	3/Contact
最小输入电压	250VDC\|250VAC

机械参数

颜色	Black	深度	15.24
间距	0.100" (2.54mm)	高度	6.58
包装方式	Tube	导线类型	Discrete or Ribbon Cable
导线线规	24 AWG	端接方式	IDT
触头类型	Female Socket	外壳颜色	Black
安装类型	Cable Mount	连接器类型	Receptacle
接触镀层	Gold Over Nickel	紧固类型	Latch Lock
排数	1	触头材料	Phosphor Bronze
壳体材料	Polyester	总长度	10.13
电缆端接方式	IDC	触点数	4
位数	4	接触镀层厚度	15µin (0.38µm)

产品信息

类型	IDC Connector	连接器性别	F
产品特性	Closed End

文档与媒体

PDF 文档

Environmental Information

在线文档

相关型号

0705530108

molex

Conn Shrouded Header HDR 4 POS 2.54mm Solder RA Thru-Hole Tube CONN HEADER 4POS .100 R/A 30AU

¥6.0003

详情

0705430038

molex

Conn Shrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Tube CONN HDR VERT 4POS .100 TIN

¥2.9621

详情

0705550038

molex

Conn Shrouded Header HDR 4 POS 2.54mm Solder RA Thru-Hole Tube CONN HEADER 4POS .100 R/A 15AU

¥4.0589

详情

0701070003

molex

Conn Housing F 4 POS 2.54mm Crimp ST Bag CONN HOUSING MALE 4POS .100

¥1.8163

详情

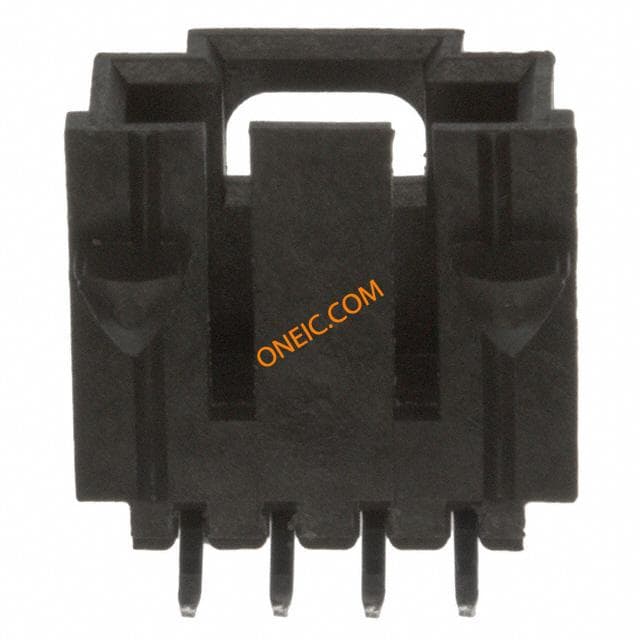

0705550003

molex

Conn Shrouded Header HDR 4 POS 2.54mm Solder RA Thru-Hole Tube CONN HEADER 4POS .100 R/A TIN Conn Shrouded Header HDR 4 POS 2.54mm Solder RA Th

¥3.5027

详情

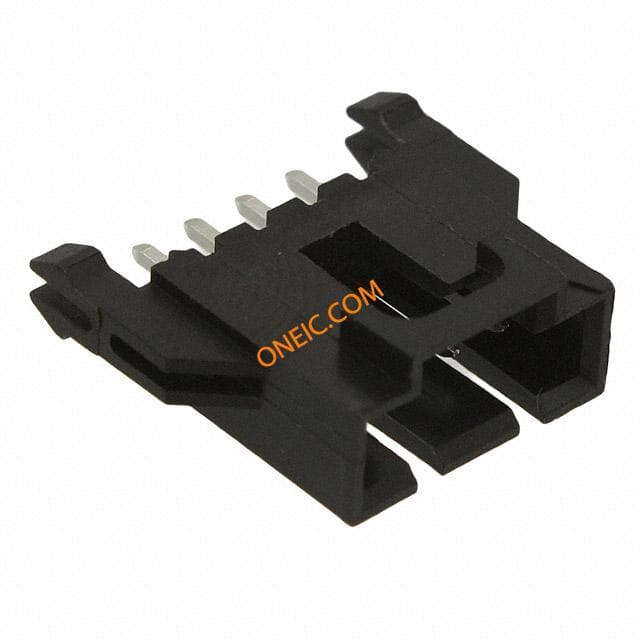

0705410003

molex

Conn Shrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Tube CONN HEADER 4POS VERT T/H

¥3.4340

详情

0705530003

molex

Conn Shrouded Header HDR 4 POS 2.54mm Solder RA Thru-Hole Tube CONN HEADER 4POS .100 R/A GOLD

¥3.6251

详情

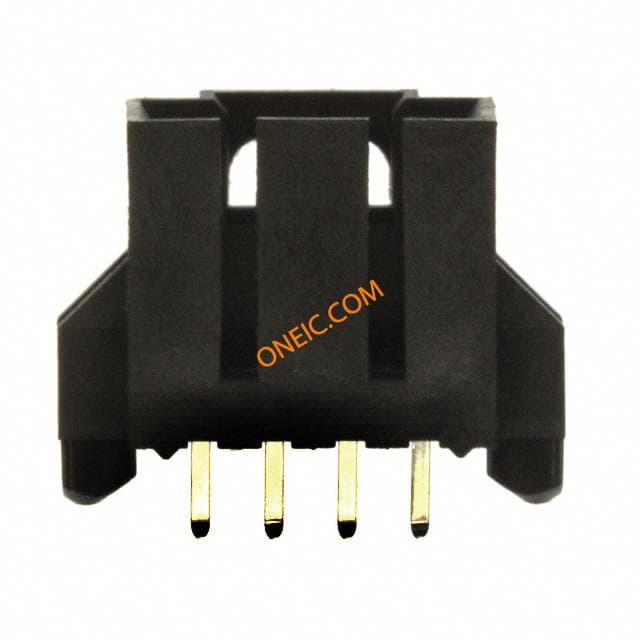

0705450003

molex

Conn Shrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Tube CONN HEADER 4POS .100 VERT TIN

¥3.9794

详情

0878980426

molex

Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST SMD Tube CONN HEADER 4POS VERT 2.54MM SMD

¥0.7854

详情

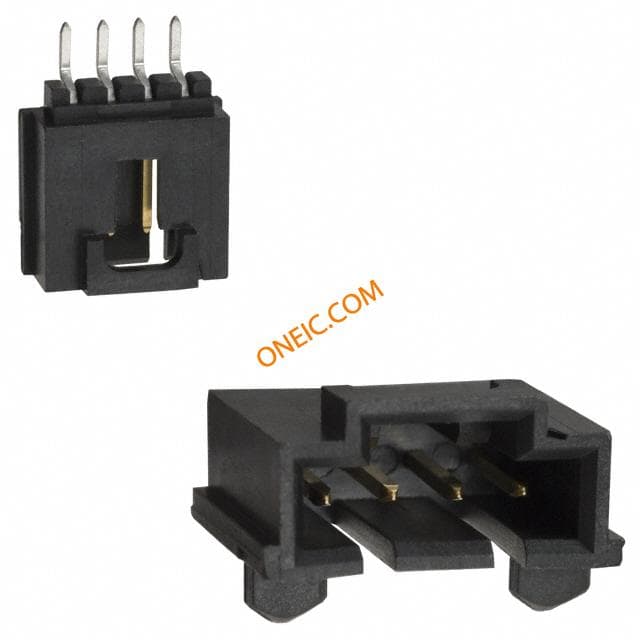

0015912045

molex

Conn Shrouded Header HDR 4 POS 2.54mm Solder RA SMD Tube CONN HEADER 4POS .100 R/A SMD

¥10.5808

详情

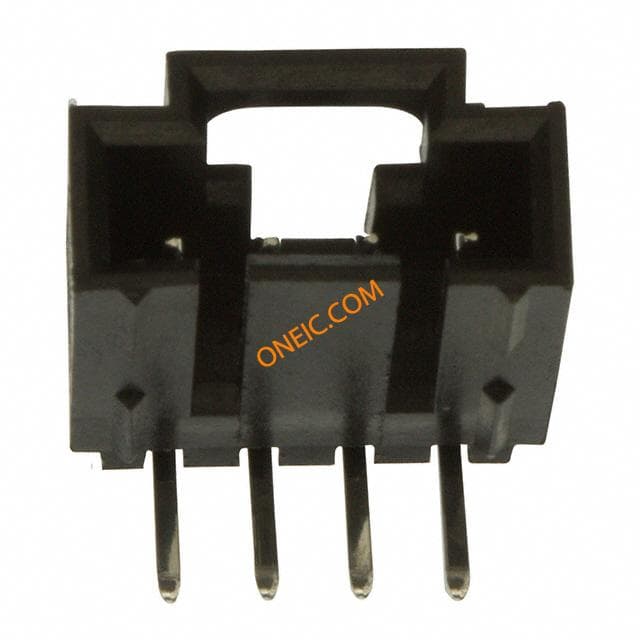

0705530038

molex

Conn Shrouded Header HDR 4 POS 2.54mm Solder RA Thru-Hole Tube CONN HDR RT ANG 4POS .100 TIN

¥3.1124

详情

0705450038

molex

Conn Shrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Tube CONN HEADER 4POS .100 VERT 15AU

¥3.0824

详情

68301-1010

Molex

Headers & Wire Housings Cust. Header 100 SMT 4 CKT CONN HEADER 4POS .100" VERT 15AU

详情

68301-1015

Molex

Headers & Wire Housings 2.54MM BREAKAWAY Vertical 4 CKT CONN HEADER 4POS .100" VERT TIN Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST SMD Tray

¥1.0880

详情

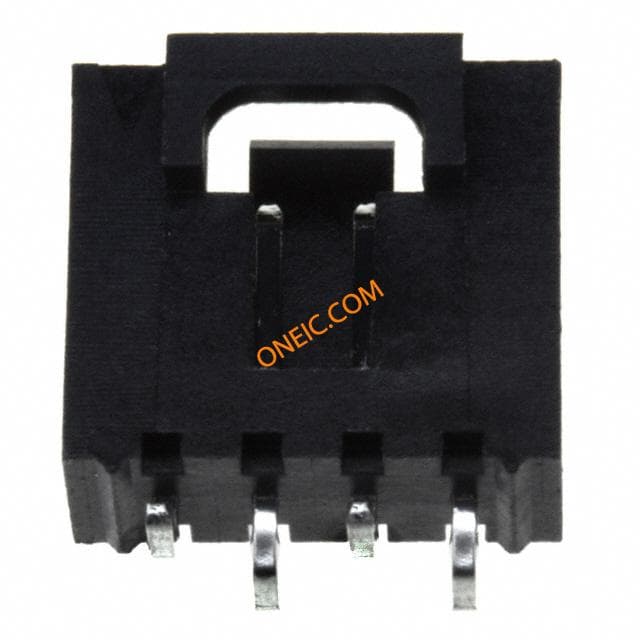

74099-0004
