点击放大查看

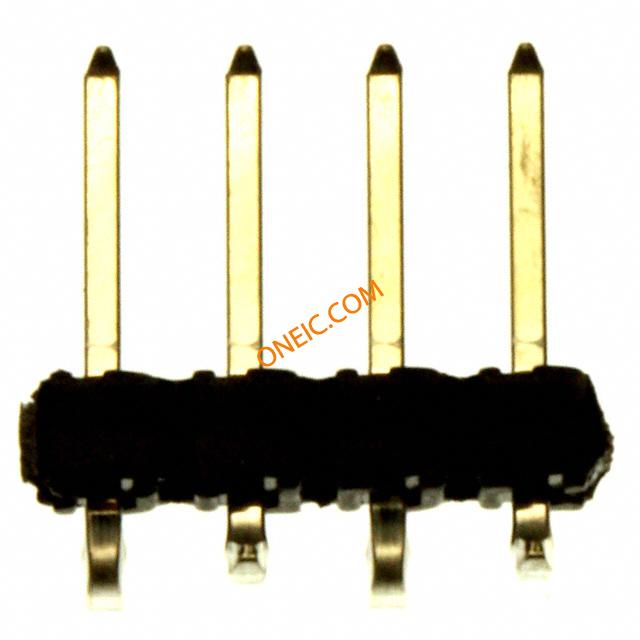

68301-1015

制造商	Molex, LLC
描述	Headers & Wire Housings 2.54MM BREAKAWAY Vertical 4 CKT CONN HEADER 4POS .100" VERT TIN Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST SMD Tray

对参数有疑问？问 AI 助手

商业参数

标准包装数量

机械参数

颜色	Black	间距	0.100" (2.54mm)
包装方式	Tube	端接方式	Solder
触头类型	Male Pin	安装类型	Surface Mount
连接器类型	Header, Unshrouded	接触镀层	Tin
排数	1	位数	4
接触长度 - 配合	0.240" (6.10mm)	接触镀层厚度	100µin (2.54µm)

产品信息

加载位置数

All

文档与媒体

PDF 文档

Multiple Devices 12/Mar/2010
