首页产品分类连接器解决方案FFC/FPC连接器FFC/FPC连接器15-38-8040

点击放大查看

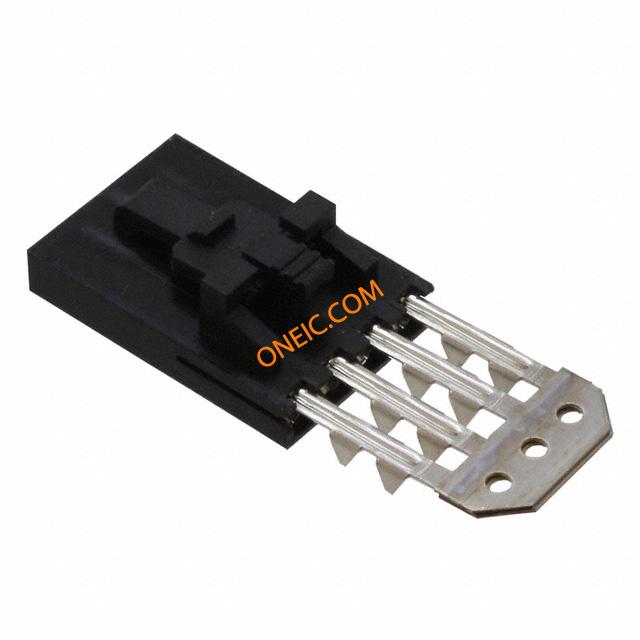

15-38-8040

制造商	Molex, LLC
描述	CONN FFC FEMALE 4POS .100 TIN FFC & FPC Connectors REC 1X04P TYPE G
分类	连接器解决方案FFC/FPC连接器FFC/FPC连接器

对参数有疑问？问 AI 助手

商业参数

商标名	C-Grid	零件号别名	0015388040 70430-0143
产品类别	FFC & FPC Connectors	标准包装数量	1
工厂包装数量	1590

合规参数

RoHS

RoHS Compliant

材料阻燃等级

UL94 V-0

电气参数

额定电压

250V

最大额定电流

1 A, 2 A

机械参数

颜色	Black	间距	0.100" (2.54mm)
包装方式	Tube	端接方式	IDC
安装类型	Vertical	连接器类型	Receptacle
接触镀层	Tin	安装样式	Cable
触头材料	Phosphor Bronze	壳体材料	Polyester, Glass Filled
端接样式	IDC	FFC/FCB厚度	0.30mm
触点数	6	位数	4
接触镀层厚度	150µin (3.81µm)

产品信息

连接器性别	Female	系列	70430
产品特性	Latch Lock	产品子类型	Free Hanging

环境参数

工作温度

-40°C ~ 105°C

相关型号

0705530108

molex

Conn Shrouded Header HDR 4 POS 2.54mm Solder RA Thru-Hole Tube CONN HEADER 4POS .100 R/A 30AU

¥6.0003

详情

0705430038

molex

Conn Shrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Tube CONN HDR VERT 4POS .100 TIN

¥2.9621

详情

0705550038

molex

Conn Shrouded Header HDR 4 POS 2.54mm Solder RA Thru-Hole Tube CONN HEADER 4POS .100 R/A 15AU

¥4.0589

详情

0701070003

molex

Conn Housing F 4 POS 2.54mm Crimp ST Bag CONN HOUSING MALE 4POS .100

¥1.8163

详情

0705550003

molex

Conn Shrouded Header HDR 4 POS 2.54mm Solder RA Thru-Hole Tube CONN HEADER 4POS .100 R/A TIN Conn Shrouded Header HDR 4 POS 2.54mm Solder RA Th

¥3.5027

详情

0705530003

molex

Conn Shrouded Header HDR 4 POS 2.54mm Solder RA Thru-Hole Tube CONN HEADER 4POS .100 R/A GOLD

¥3.6251

详情

0705450003

molex

Conn Shrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Tube CONN HEADER 4POS .100 VERT TIN

¥3.9794

详情

0705430108

molex

Conn Shrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Tube CONN HEADER 4POS .100 VERT 30AU

¥4.3785

详情

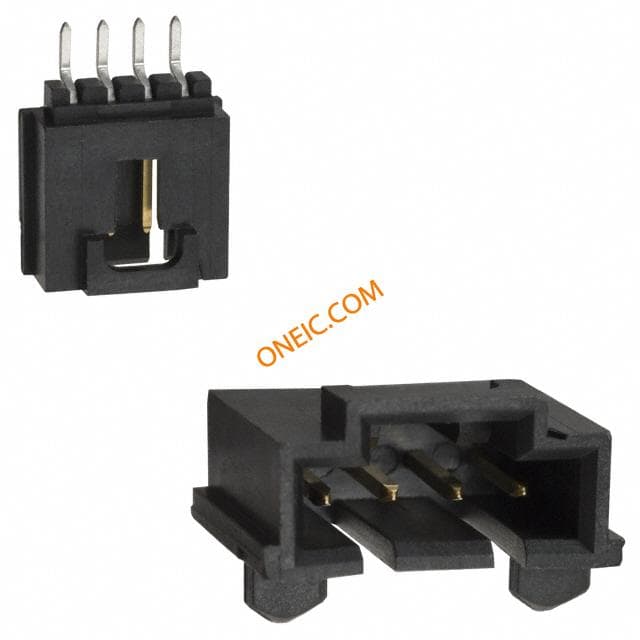

0015912045

molex

Conn Shrouded Header HDR 4 POS 2.54mm Solder RA SMD Tube CONN HEADER 4POS .100 R/A SMD

¥10.5808

详情

0705530038

molex

Conn Shrouded Header HDR 4 POS 2.54mm Solder RA Thru-Hole Tube CONN HDR RT ANG 4POS .100 TIN

¥3.1124

详情

0705450038

molex

Conn Shrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Tube CONN HEADER 4POS .100 VERT 15AU

¥3.0824

详情

68301-1010

Molex

Headers & Wire Housings Cust. Header 100 SMT 4 CKT CONN HEADER 4POS .100" VERT 15AU

详情

68301-1015

Molex

Headers & Wire Housings 2.54MM BREAKAWAY Vertical 4 CKT CONN HEADER 4POS .100" VERT TIN Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST SMD Tray

¥1.0880

详情

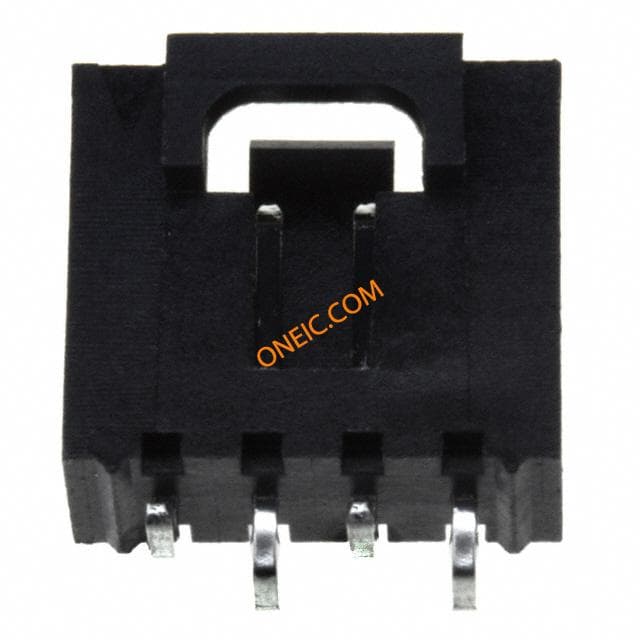

74099-0004
