点击放大查看

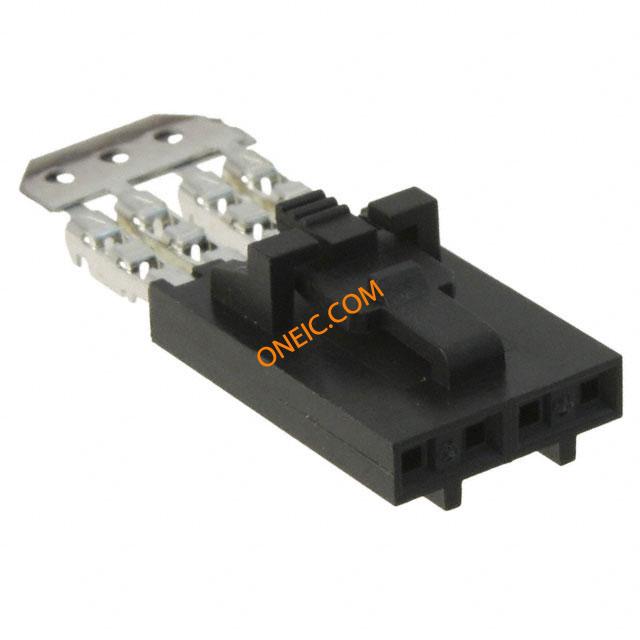

14-60-0042

制造商	Molex, LLC
描述	CONN IDC 4POS .100 TIN 24AWG Headers & Wire Housings CGrid SL IDT Opt G TIN 4Ckt Conn IDC Connector F 4 POS 2.54mm IDT ST Cable Mount Tube
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

商标名	C-Grid, SL	零件号别名	0014600042 A-70400-0143
产品类别	Headers & Wire Housings	标准包装数量	1
工厂包装数量	1590

合规参数

RoHS

RoHS Compliant

电气参数

额定电压

250 V

最大额定电流

3 A

机械参数

颜色	Black	间距	0.100" (2.54mm)
包装方式	Tube	导线类型	Discrete or Ribbon Cable
导线线规	24 AWG	触头类型	Female Socket
安装类型	Free Hanging (In-Line)	连接器类型	Receptacle
接触镀层	Tin	紧固类型	Latch Lock
安装样式	Cable	排数	1
触头材料	Phosphor Bronze	壳体材料	Polyester Alloy
电缆端接方式	IDC	端接样式	IDC
第一触头极性	Socket (Female)	触点数	4
位数	4	接触镀层厚度	150µin (3.81µm)

产品信息

系列	70400	产品特性	Closed End
产品子类型	Receptacles / Sockets - Housings

文档与媒体

PDF 文档

Single Row (SL) Prod Spec
