0704002042

制造商	Molex, LLC
描述	Conn IDC Connector F 4 POS 2.54mm IDT ST Cable Mount Tube CONN SL IDT OPT G GOLD 4POS

对参数有疑问？问 AI 助手

商业参数

标准包装数量

1,590

合规参数

RoHS

Lead free / RoHS Compliant

欧盟RoHS

Compliant

电气参数

接触电阻	15	最大额定电流	3/Contact
最小输入电压	250VDC\|250VAC

机械参数

颜色	Black	深度	15.24
间距	0.100" (2.54mm)	高度	6.58
包装方式	Tube	导线类型	Discrete or Ribbon Cable
导线线规	24 AWG	端接方式	IDT
触头类型	Female Socket	外壳颜色	Black
安装类型	Cable Mount	连接器类型	Receptacle
接触镀层	Gold Over Nickel	紧固类型	Latch Lock
排数	1	触头材料	Phosphor Bronze
壳体材料	Polyester	总长度	10.13
电缆端接方式	IDC	触点数	4
位数	4	接触镀层厚度	15µin (0.38µm)

产品信息

类型	IDC Connector	连接器性别	F
产品特性	Closed End

文档与媒体

PDF 文档

70400-2xx2 Drawing

PDF 文档

Single Row (SL) Prod Spec

相关型号

0705530108

molex

Conn Shrouded Header HDR 4 POS 2.54mm Solder RA Thru-Hole Tube CONN HEADER 4POS .100 R/A 30AU

¥6.0003

详情

0705410003

molex

Conn Shrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Tube CONN HEADER 4POS VERT T/H

¥3.4340

详情

暂无图片

0705450178

molex

Conn Shrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole CONN HEADER VERT GOLD 4POS

¥3.1219

详情

0705450003

molex

Conn Shrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Tube CONN HEADER 4POS .100 VERT TIN

¥3.9794

详情

暂无图片

0705510038

molex

Conn Shrouded Header HDR 4 POS 2.54mm Solder RA Thru-Hole Tube SL R/A LATCH HEADER GOLD 4POS

¥5.8956

详情

暂无图片

0705510003

molex

Conn Shrouded Header HDR 4 POS 2.54mm Solder RA Thru-Hole Tube SL R/A LATCH HEADER TIN 4POS

¥3.9596

详情

0705530038

molex

Conn Shrouded Header HDR 4 POS 2.54mm Solder RA Thru-Hole Tube CONN HDR RT ANG 4POS .100 TIN

¥3.1124

详情

0705450038

molex

Conn Shrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Tube CONN HEADER 4POS .100 VERT 15AU

¥3.0824

详情

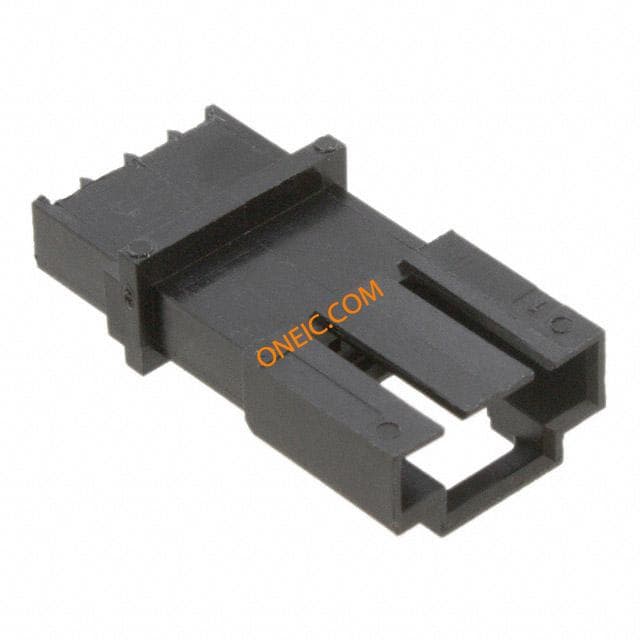

70107-0038
