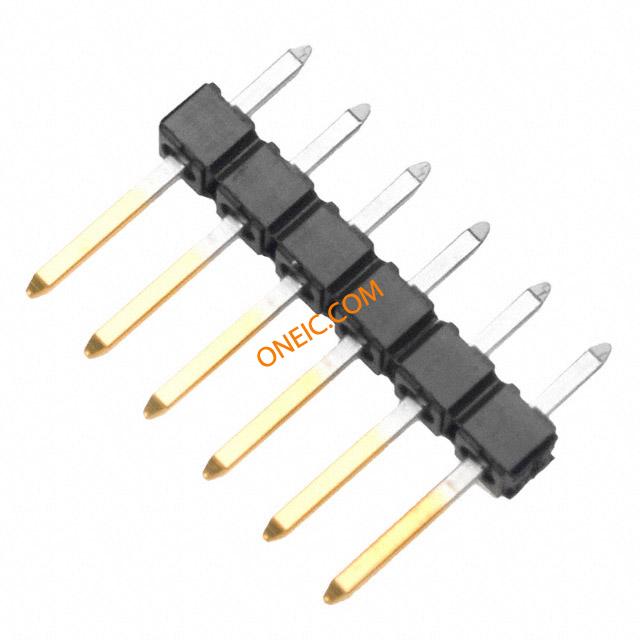

0022284063
| 制造商 | Molex, LLC |
| 描述 | CONN HEADER 6POS .100 VERT GOLD |
| 分类 |
商业参数
| 交货时间 | 61 Days | 子类别 | Connector Headers and PCB Receptacles |
| 标准包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
机械参数
| 颜色 | Black | 间距 | 0.100" (2.54mm) |
| 包装方式 | Bag | 端接方式 | Solder |
| 触头类型 | Male Pin | 安装类型 | Through Hole |
| 连接器类型 | Header, Unshrouded, Breakaway | 接触镀层 | Gold |
| 排数 | 1 | 位数 | 6 |
| 接触长度 - 配合 | 0.240" (6.10mm) | 接触镀层厚度 | 15µin (0.38µm) |
产品信息
| 行业别名 | 22-28-4063, 22284063 | 加载位置数 | All |
