点击放大查看

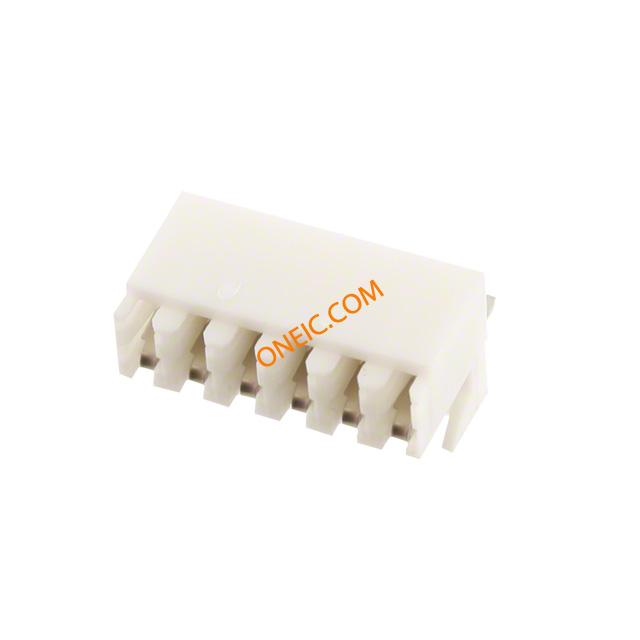

22-17-3062

制造商	Molex, LLC
描述	CONN RECEPT 6POS .100 VERT PCB Molex 2.54mm 6 Way 1 Row Straight PCB Socket Through Hole Socket Strip Headers & Wire Housings PCB CONNECTOR 6P bottom entry Conn Socket Strip RCP 6 POS 2.54mm Solder ST Thru-Hole Tray
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

商标名	KK	零件号别名	0022173062 A-4455-BH06D(208)
产品类别	Headers & Wire Housings	标准包装数量	1
工厂包装数量	1512

合规参数

RoHS

Compliant

电气参数

额定电压

250 V

最大额定电流

2.5A

机械参数

颜色	White	间距	0.100" (2.54mm)
包装方式	Tray	端接方式	Solder
触头类型	Female Socket	安装类型	Through Hole
连接器类型	Receptacle, Bottom Entry	接触镀层	Gold
排数	1	触头材料	Brass
壳体材料	Nylon	端接样式	Through Hole
第一触头极性	Socket (Female)	触点数	6
位数	6	接触镀层厚度	15µin (0.38µm)

产品信息

类型	Socket Strip	系列	4455
CAD图纸	3D CAD Model	产品子类型	Receptacles / Sockets - PCB
加载位置数	All

文档与媒体

PDF 文档

Resin Color 01/Jan/2002

PDF 文档

22-17-3062

PDF 文档

0022173062_PCB_RECEPTACLES.pdf
