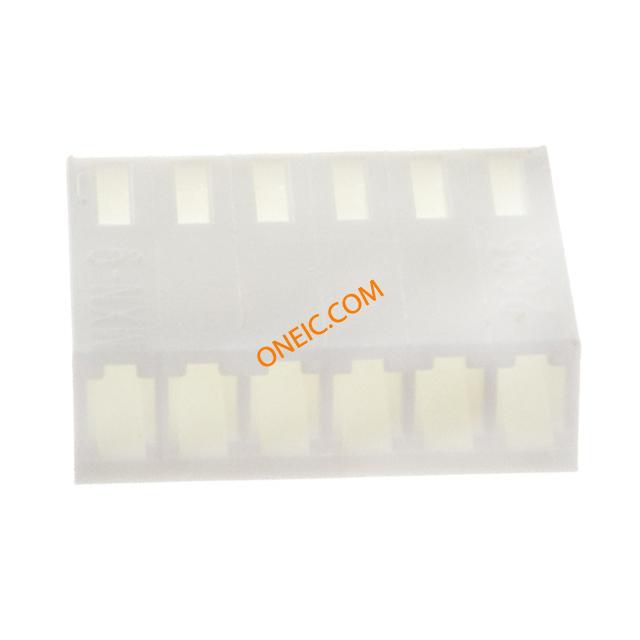

点击放大查看

22-01-2061

制造商	Molex, LLC
描述	CONN HOUSING 6POS .100 W/O RAMP Headers & Wire Housings 6 CKT TERM HOUSING Conn Housing F 6 POS 2.54mm Crimp ST Cable Mount Bag .100 TERMINAL HOUSING; W/O LOCK RAMP; 6 CIRCUITS Molex KK 254 系列 1 行 2.54mm 节距 6 路直母表面安装压接连接器外壳
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

商标名	KK	零件号别名	0022012061 2695-06
产品类别	Headers & Wire Housings	标准包装数量	10
工厂包装数量	2500

合规参数

RoHS

RoHS Compliant

电气参数

连接器类型 - 电压输入

Female

机械参数

颜色	White	深度	4.82mm
间距	0.100" (2.54mm)	宽度	12.7mm
长度	15.8mm	包装方式	Bulk
方向	直	触头类型	Non Gendered
安装类型	Free Hanging (In-Line)	连接器类型	Receptacle
排数	1	壳体材料	Nylon
触点数	6	接触件端接	Crimp
位数	6

产品信息

备注	Contacts Not Provided	类型	Crimp Housing
系列	2695	产品子类型	Wire Housings
基础产品编号	2695	适用产品/相关产品	2759、4809 KK 压接端子

文档与媒体

PDF 文档

22-01-2061

PDF 文档

1781422.pdf

PDF 文档

0022012061_CRIMP_HOUSINGS.pdf
