点击放大查看

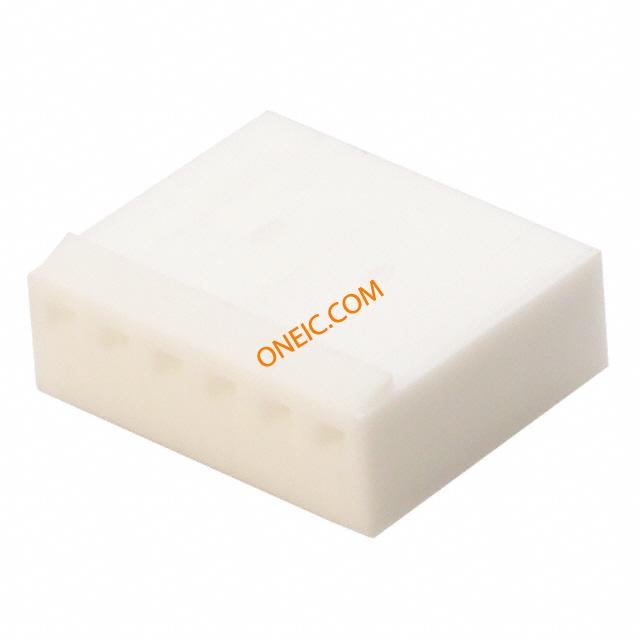

10-11-2063

制造商	Molex, LLC
描述	CONN HOUSING 6POS .100 HI PRESS 2.54mm,KK100,housing,f/ramp,nylon,6way Headers & Wire Housings HOUSING 6P 2.54mm Pitch KK® Crimp Terminal Housing, High Pressure, 6 Circuits MULTIPOLE CONNECTOR, 6 WAY .100 KK Crimp Housing 6 Circuit Molex KK 254 系列 2.54mm 节距 6 路直母电缆安装压接连接器外壳
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

商标名	KK	零件号别名	0010112063 7880-6B
产品类别	Headers & Wire Housings	标准包装数量	10
工厂包装数量	2500

合规参数

RoHS

Compliant

海关税号

85369010

电气参数

额定电压

250 V

最大额定电流

2.5 A

机械参数

颜色	White	深度	12.9mm
间距	0.100" (2.54mm)	宽度	5.08mm
长度	15.8mm	重量	0.00227
包装方式	Bulk	端接方式	:Crimp
触头类型	Non Gendered	引脚间距	:2.54mm
安装类型	Free Hanging (In-Line)	连接器类型	Receptacle
接触镀层	:-	紧固类型	Locking Ramp
安装样式	Wire	排数	1
壳体材料	Nylon	端接样式	Crimp
第一触头极性	Socket (Female)	触点数	6
接触件端接	Crimp	位数	6

产品信息

备注	Contacts Not Provided	连接器性别	Female
系列	7880	CAD图纸	3D CAD Model
产品子类型	Receptacles / Sockets - Housings	适用产品/相关产品	KK Connector

文档与媒体

PDF 文档

10-11-2063
