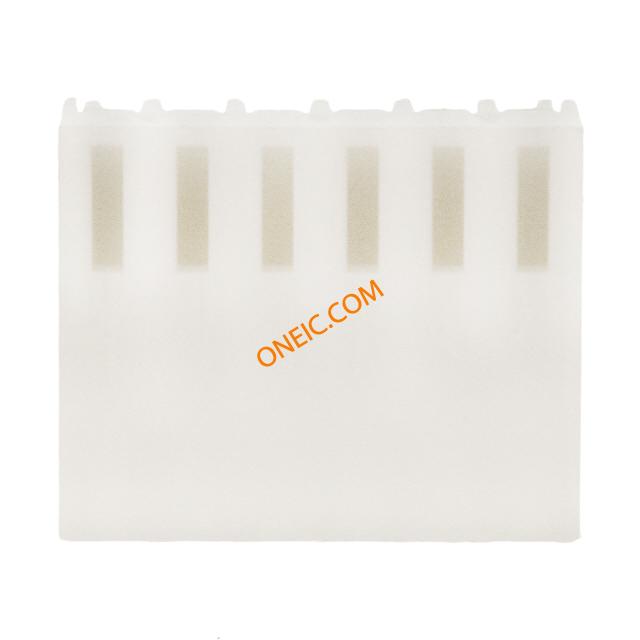

0022012065

制造商	Molex, LLC
描述	Conn Housing RCP 6 POS 2.54mm Crimp ST Cable Mount Bag CONN HSNG 6POS .100 W/RAMP/RIB
分类	电缆、电线及组件矩形电缆组件专用/工业电缆组件

对参数有疑问？问 AI 助手

商业参数

交货时间	22 Days	子类别	Connector Discrete Wire Housing
标准包装数量	1

合规参数

RoHS

Lead free / RoHS Compliant

欧盟RoHS

Compliant

电气参数

最大额定电流	4/Contact A	最小输入电压	250V
最小供电电压	250V

机械参数

颜色	Natural	深度	12.7 mm
间距	0.100" (2.54mm)	高度	4.83 mm
包装方式	Bag	导线线规	22-28
触头类型	Non Gendered	外壳颜色	Natural
安装类型	Straight	连接器类型	Receptacle
紧固类型	Locking Ramp	排数	1
壳体材料	Polyamide 66/6	总长度	15.7 mm
触点数	6	接触件端接	Crimp
位数	6

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	RCP	产品特性	Polarizing Key
行业别名	22-01-2065, 22012065

环境参数

工作温度

0C to 75C

文档与媒体

PDF 文档

22-01-2xx5
