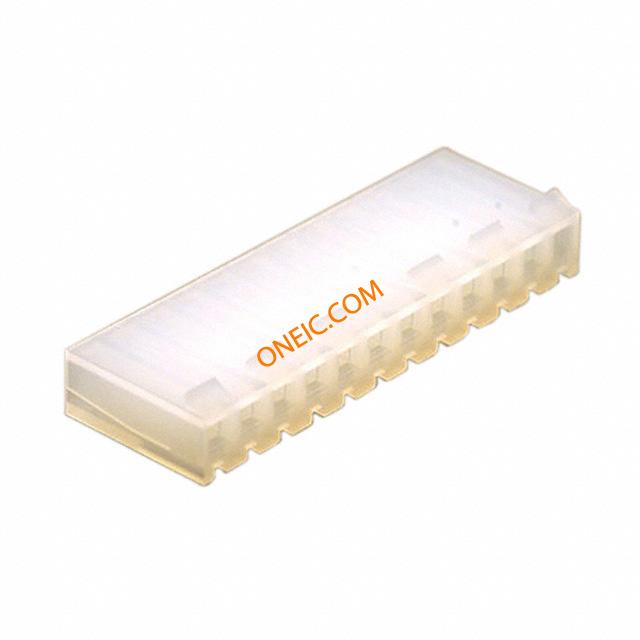

0009503121

制造商	Molex, LLC
描述	Conn Housing RCP 12 POS 3.96mm Crimp ST Cable Mount Bag Conn Housing F 12 POS 3.96mm Crimp ST Cable Mount Bag CONN HOUSING 12POS .156 W/RAMP
分类	连接器解决方案矩形连接器FPC/FFC矩形连接器

对参数有疑问？问 AI 助手

商业参数

交货时间	31 Days	子类别	Connector Discrete Wire Housing
标准包装数量	Bulk

合规参数

RoHS

Lead free / RoHS Compliant

欧盟RoHS

Compliant

电气参数

最大额定电流	7/Contact A	最小输入电压	250VAC
最小供电电压	250VAC

机械参数

颜色	Natural	深度	15.88 mm
间距	3.96 mm	高度	6.4 mm
包装方式	Bag	触头类型	Non Gendered
外壳颜色	Natural	安装类型	Straight
连接器类型	Receptacle	紧固类型	Locking Ramp
排数	1	壳体材料	Nylon
总长度	47.45 mm	触点数	12
接触件端接	Crimp	位数	12

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	RCP	已删除	Compliant
行业别名	09-50-3121, 09503121, 9503121

环境参数

工作温度

0C to 75C

文档与媒体

在线文档

Datasheets

PDF 文档

相关型号

0008500106

molex

Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 18-24AWG TIN Conn Contact F 1 POS Crimp ST Cable Mount Bag

¥0.4396

详情

0026481125

molex

Conn Unshrouded Header HDR 12 POS 3.96mm Solder ST Thru-Hole Bulk Conn Unshrouded Header HDR 12 POS 3.96mm Solder ST Thru-Hole Bag CONN HEADER 12POS .156 VERT TIN

¥6.2927

详情

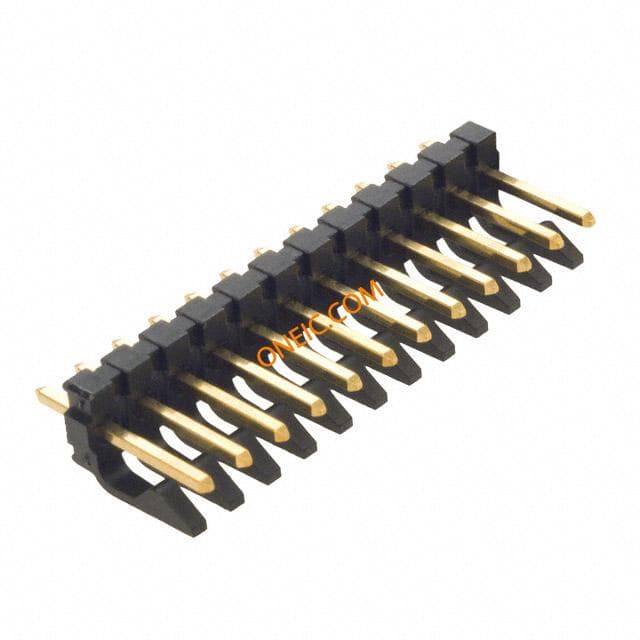

0026482125

molex

Conn Unshrouded Header HDR 12 POS 3.96mm Solder ST Thru-Hole Bulk Conn Wire to Board HDR 12 POS 3.96mm Solder ST Thru-Hole Bulk CONN HEADER 12POS .156 VERT GOLD

¥27.4679

详情

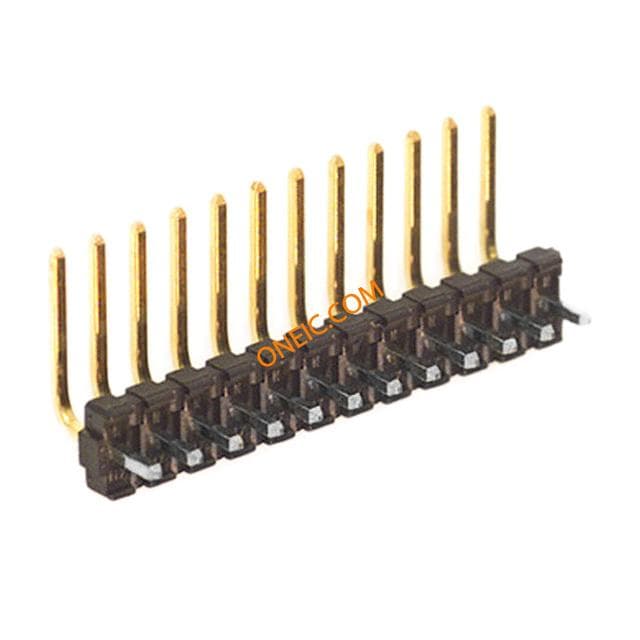

0026482122

molex

Conn Unshrouded Header HDR 12 POS 3.96mm Solder RA Thru-Hole Bag CONN HEADER 12POS .156 R/A GOLD

¥13.9794

详情

0026604120

molex

Conn Wire to Board HDR 12 POS 3.96mm Solder ST Thru-Hole Bag CONN HEADER 12POS .156 VERT TIN

¥4.5968

详情

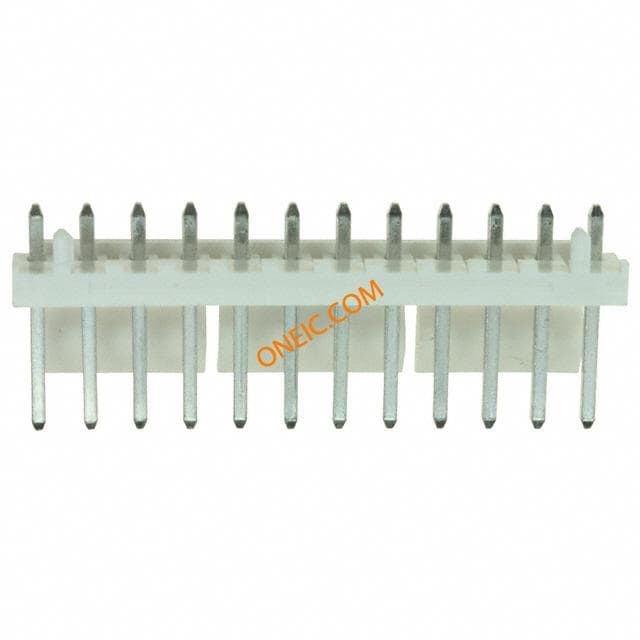

0026644120

molex

Conn Wire to Board HDR 12 POS 3.96mm Solder ST Thru-Hole Bag CONN HEADER 12POS .156 VERT TIN

¥4.2119

详情

暂无图片

0008580104

molex

Contact SKT Crimp ST Cable Mount Loose Piece CONN TERM CRIMP 18-24 AWG GOLD

¥3.4034

详情

0008520811

molex

Contact SKT Crimp ST Cable Mount Reel CONN TERM CRIMP 18-24 AWG TIN

¥0.2645

详情

暂无图片

0008600004

molex

Contact SKT Crimp ST Cable Mount T/R CONN TERM CRIMP 22-26-AWG TIN

¥0.2373

详情

26-61-4120

molex

Conn Wire to Board HDR 12 POS 3.96mm Solder ST Thru-Hole Bag CONN HEADER 12POS .156 VERT GOLD Molex 41791 Series 3.96mm Pitch 12 Way 1 Row Straight PCB Header, Solder Termination, 7A Headers & Wire Housings VERT PCB HDR 12 GOLD FRICTION LOCK WIRE-BOARD CONN, HEADER, 12POS, 3.96MM Molex KK 396 系列 3.96mm节距 12路 (1排) 直 PCB 针座, 焊接端接, 7A , 通孔

¥10.6080

详情

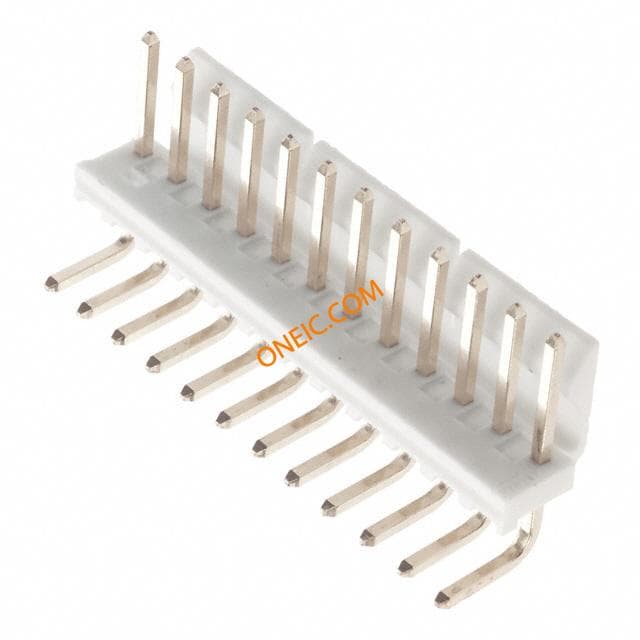

26-60-5120

molex

Conn Wire to Board HDR 12 POS 3.96mm Solder RA Thru-Hole Bag CONN HEADER 12POS .156 R/A TIN Molex 41792 Series 3.96mm Pitch 12 Way 1 Row Right Angle PCB Header, Solder Termination, 7A Headers & Wire Housings R/A PCB HDR 12P TIN FRICTION LOCK Molex KK 396 系列 3.96mm节距 12路 (1排) 直角 PCB 针座, 焊接端接, 7A , 通孔

¥4.5560

详情

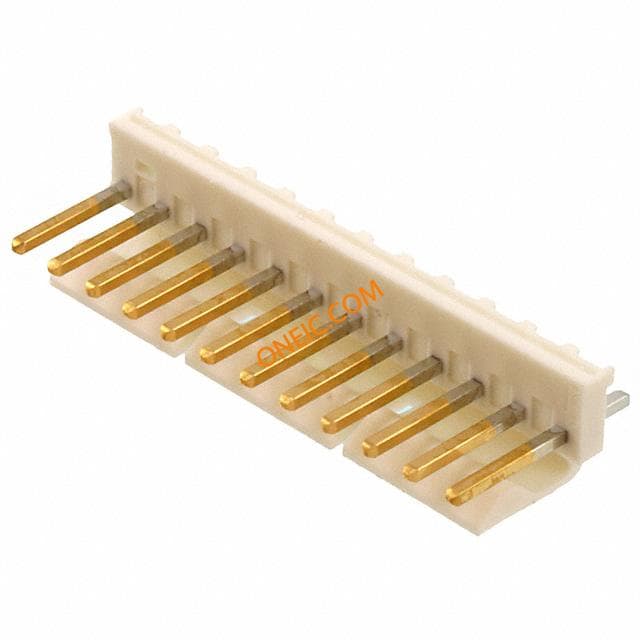

0417910842

Molex

Conn Wire to Board HDR 12 POS 3.96mm Solder ST Thru-Hole Bag CONN HEADER 12POS VERT GOLD

¥11.8334

详情

08-50-0133

molex

Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 22-26AWG TIN TERM FEMALE CRIMP 22-26AWG TIN Crimp,3.96mm,22-26 AWG,phos bronze,reel Headers & Wire Housings KK TERM 22-26G Reel of 7000 Crimp Contact Molex KK 396 系列母压接接线端子, 压接, 镀锡触点

¥0.0959

详情

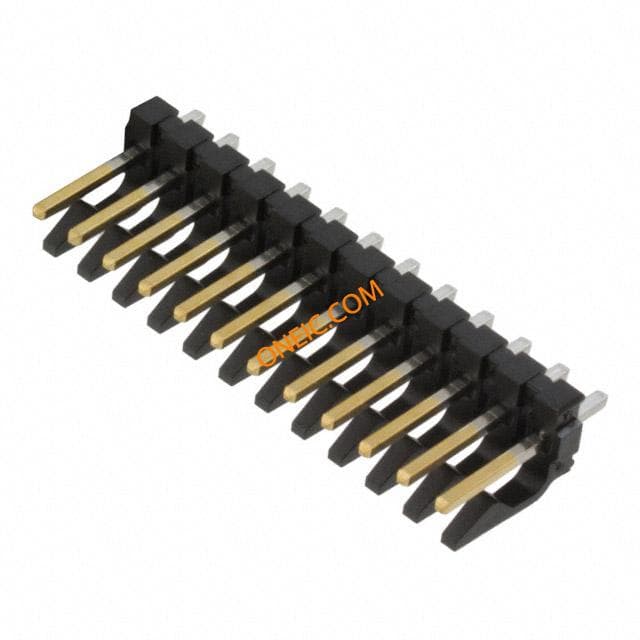

0416710034

Molex

Conn Unshrouded Header HDR 12 POS 3.96mm Solder ST Thru-Hole Bag CONN BKWY HEADER 12POS STR GOLD

¥25.7713

详情

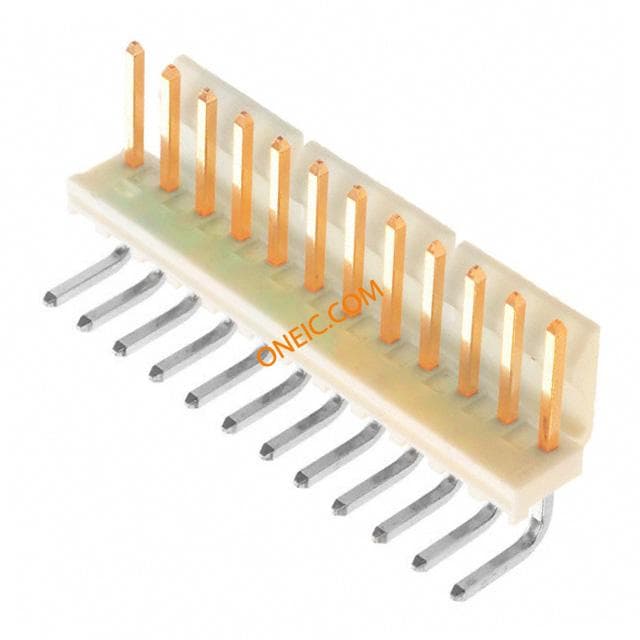

26-61-5120

Molex Connector Corporation

CONN HEADER 12POS .156 R/A GOLD Headers & Wire Housings 12P HEADER TIN Conn Wire to Board HDR 12 POS 3.96mm Solder RA Thru-Hole Bag KK 156 HDR ASSY FRLK RTAN 12 CKT 20 GOLD

¥19.3120

详情
