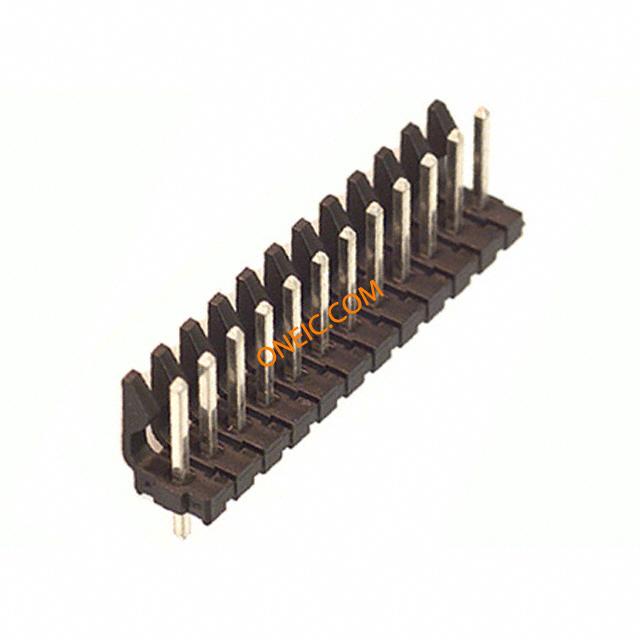

0026481125
| 制造商 | Molex, LLC |
| 描述 | Conn Unshrouded Header HDR 12 POS 3.96mm Solder ST Thru-Hole Bulk Conn Unshrouded Header HDR 12 POS 3.96mm Solder ST Thru-Hole Bag CONN HEADER 12POS .156 VERT TIN |
| 分类 |
商业参数
| 交货时间 | 36 Days | 子类别 | Connector Headers and PCB Receptacles |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 10 mohm | 最大额定电流 | 7/Contact A |
| 最小输入电压 | 250V | 最小供电电压 | 250V |
机械参数
| 颜色 | Black | 深度 | 9.02 mm |
| 间距 | 3.96 mm | 高度 | 14.68 mm |
| 包装方式 | Bag | 端接方式 | Solder |
| 触头类型 | Male Pin | 外壳颜色 | Black |
| 安装类型 | Through Hole | 连接器类型 | Header, Unshrouded, Breakaway |
| 接触镀层 | Tin Over Copper | 紧固类型 | Friction Lock |
| 安装样式 | Through Hole | 排数 | 1 |
| 触头材料 | Brass | 壳体材料 | Polyester |
| 总长度 | 47.5 mm | 触点数 | 12 |
| 位数 | 12 | 接触长度 - 配合 | 0.450" (11.43mm) |
| 接触镀层厚度 | 200µin (5.08µm) | ||
产品信息
| 类型 | Unshrouded Header | 连接器性别 | HDR |
| 行业别名 | 26-48-1125, 26481125 | 加载位置数 | All |
环境参数
| 工作温度 | 0C to 75C | ||
文档与媒体
相关型号
0009482123
molex
Conn Socket Strip RCP 12 POS 3.96mm Solder ST Thru-Hole Tray CONN RCPT TOP 12POS TIN PCB
0009485124
molex
Conn Socket Strip RCP 12 POS 3.96mm Solder RA Thru-Hole Tray CONN RCPT R/A 12POS GOLD PCB
0009485125
molex
Conn Socket Strip RCP 12 POS 3.96mm Solder ST Thru-Hole Tray CONN RCPT TOP 12POS GOLD PCB
0009521123
molex
Conn Socket Strip RCP 12 POS 3.96mm Solder ST Thru-Hole Tray CONN RCPT TOP 12POS TIN PCB
0009523128
molex
Conn Socket Strip RCP 12 POS 3.96mm Solder RA Thru-Hole Tray CONN RCPT R/A 12POS TIN PCB
0009484121
Molex, LLC
. 0009484121 - 12 Position Receptacle, Bottom Entry Connector 0.156" (3.96mm) Through Hole Tin from Molex. from now!
0009482129
molex
Conn Socket Strip RCP 12 POS 3.96mm Solder ST Thru-Hole Tray CONN RCPT BOTTOM 12POS TIN PCB
0009521120
Molex
Conn Socket Strip RCP 12 POS 3.96mm Solder RA Thru-Hole Tray CONN RCPT R/A 12POS TIN PCB

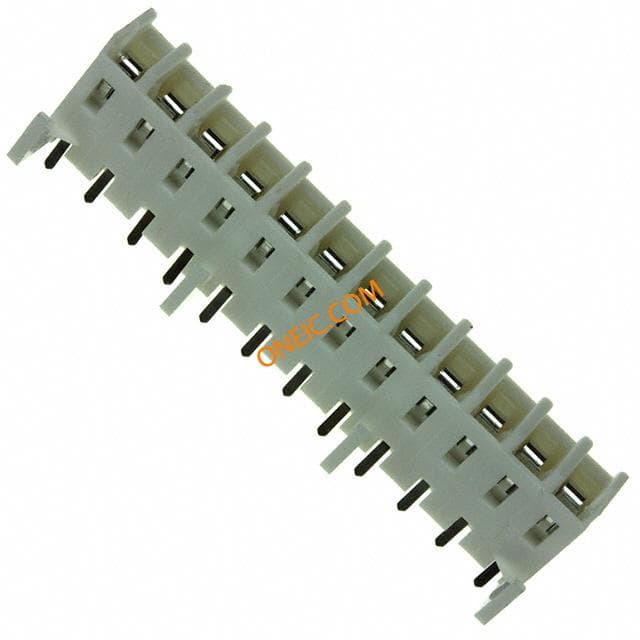

0009484129
Molex
Conn Socket Strip RCP 12 POS 3.96mm Solder ST Thru-Hole Tray CONN RECEPT 12POS .156 VERT PCB
0009484128
Molex
Conn Socket Strip RCP 12 POS 3.96mm Solder ST Thru-Hole Tray CONN RECEPT 12POS .156 VERT PCB
0009482121
Molex
Conn Socket Strip RCP 12 POS 3.96mm Solder RA Thru-Hole Tray CONN RCPT R/A 12POS TIN PCB
0009931200
Molex
Conn Housing F 12 POS 3.96mm Crimp ST Cable Mount Bag CONN FEMALE HSNG .156 12POS
0009521126
Molex
Conn Socket Strip RCP 12 POS 3.96mm Solder RA Thru-Hole Tray CONN RCPT R/A 12POS TIN PCB
0009624127
Molex
Conn Socket Strip RCP 12 POS 3.96mm Solder RA Thru-Hole Tray CONN RCPT R/A 12POS GOLD
09-52-3121
Molex Connector Corporation
CONN RECEPT 12POS .156 R/A PCB Headers & Wire Housings PCB RECPT 12P SIDE ENTRY Conn Socket Strip RCP 12 POS 3.96mm Solder RA Thru-Hole Tray

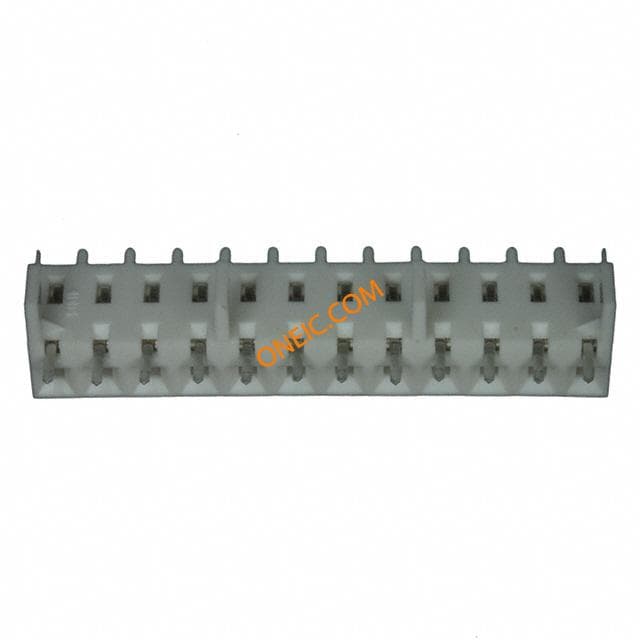

09-48-3124
Molex Connector Corporation
CONN RECEPT 12POS .156 VERT PCB Headers & Wire Housings 12 POS RECEPT .156 BOTTOM PCB GOLD 3.96mm Pitch KK® PC Board Connector, Bottom Entry, Polyester Connector, Gold (Au) Selective, 12 Circuits
09-62-3122
Molex Connector Corporation
CONN RECEPT 12POS .156 VERT PCB Headers & Wire Housings 3.96MM BOARD CONN BTM ENTRY 12P GOLD Conn Socket Strip RCP 12 POS 3.96mm Solder ST Thru-Hole Tray
09-52-3122
Molex Connector Corporation
CONN RECEPT 12POS .156 VERT PCB Headers & Wire Housings PCB RECPT 12P BOTTOM ENTRY Conn Socket Strip RCP 12 POS 3.96mm Solder ST Thru-Hole Tray
09-50-8121
Molex Connector Corporation
CONN HOUSING 12POS .156 W/RAMP Housing 3.96mm KK, friction ramp, 12way Headers & Wire Housings HSG 12P W/LKG RAMP UL94V-0 Conn Housing F 12 POS 3.96mm Crimp ST Cable Mount Bag KK156CRIMPHOUSINGRAMP12CKT Molex KK 396 系列 1 行 3.96mm 节距 12 路 直 母 电缆安装 压接连接器外壳

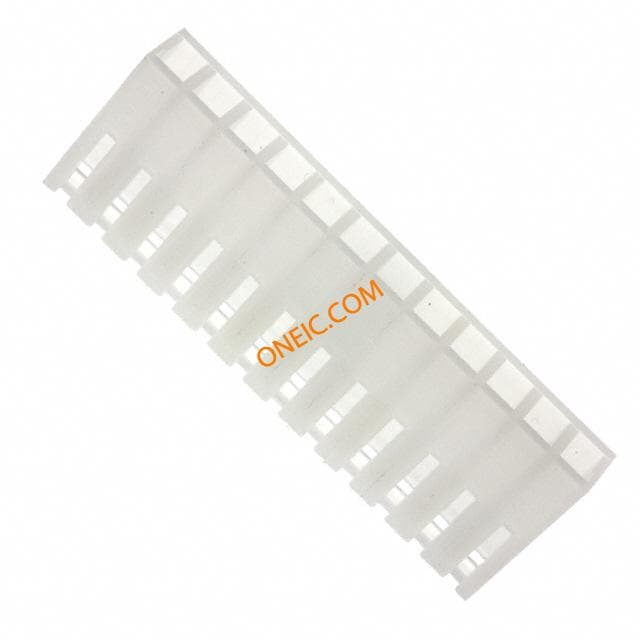

09-50-7121
