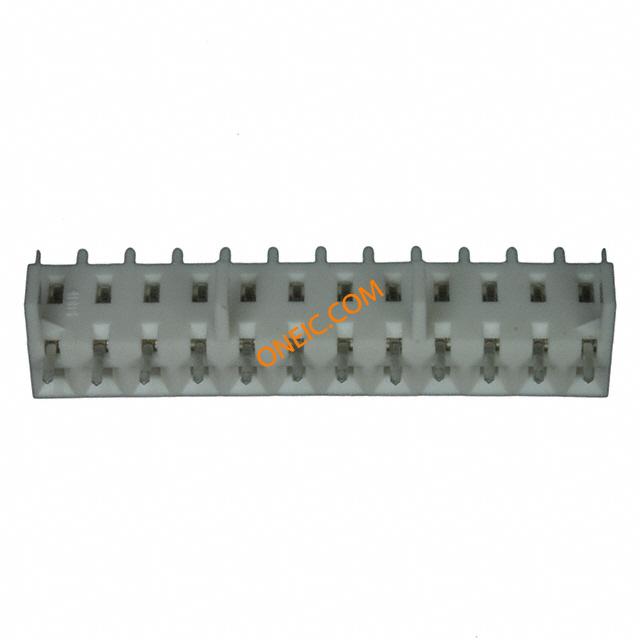

09-48-3124

制造商	Molex, LLC
描述	CONN RECEPT 12POS .156 VERT PCB Headers & Wire Housings 12 POS RECEPT .156 BOTTOM PCB GOLD 3.96mm Pitch KK® PC Board Connector, Bottom Entry, Polyester Connector, Gold (Au) Selective, 12 Circuits
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

商标名	KK	零件号别名	0009483124 9483124 A-41815-0449
产品类别	Headers & Wire Housings	标准包装数量	1
工厂包装数量	462

合规参数

RoHS

RoHS Compliant

电气参数

额定电压

250 V

最大额定电流

5 A

机械参数

颜色	Natural	间距	0.156" (3.96mm)
包装方式	Tray	端接方式	Solder
触头类型	Female Socket	安装类型	Through Hole
连接器类型	Receptacle, Bottom Entry	接触镀层	Gold
紧固类型	Locking Ramp	排数	1
触头材料	Brass	壳体材料	Polyester
端接样式	Through Hole	触点数	12
位数	12	接触镀层厚度	15µin (0.38µm)

产品信息

系列	41815	产品子类型	Receptacles / Sockets - PCB
加载位置数	All

文档与媒体

PDF 文档

09-48-3124
