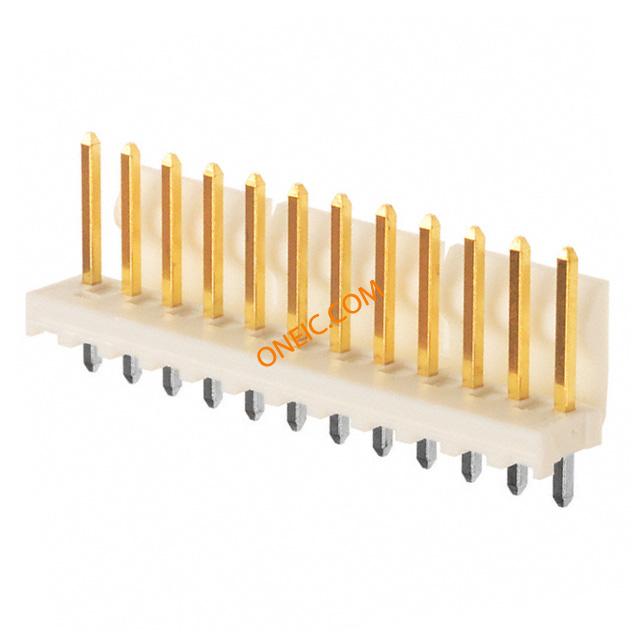

点击放大查看
26-61-4120
| 制造商 | Molex, LLC |
| 描述 | Conn Wire to Board HDR 12 POS 3.96mm Solder ST Thru-Hole Bag CONN HEADER 12POS .156 VERT GOLD Molex 41791 Series 3.96mm Pitch 12 Way 1 Row Straight PCB Header, Solder Termination, 7A Headers & Wire Housings VERT PCB HDR 12 GOLD FRICTION LOCK WIRE-BOARD CONN, HEADER, 12POS, 3.96MM Molex KK 396 系列 3.96mm节距 12路 (1排) 直 PCB 针座, 焊接端接, 7A , 通孔 |
| 分类 |
商业参数
| 商标名 | KK | 零件号别名 | 0026614120 26-61-4120-PB 41791-0029 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 150 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
电气参数
| 额定电压 | 250 V ac | 最大额定电流 | 7A |
机械参数
| 颜色 | Natural | 间距 | 3.96 mm |
| 重量 | 0.000001 | 包装方式 | Bulk |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 基体材料 | :Polyester | 安装类型 | Through Hole |
| 连接器类型 | Header, Unshrouded | 接触镀层 | Gold Over Nickel |
| 紧固类型 | Friction Lock | 排数 | 1 |
| 触头材料 | Brass | 壳体材料 | Polyester |
| 端接样式 | Through Hole | 触点数 | 12 |
| 接触件端接 | :Through Hole Vertical | 位数 | 12 |
| 接触长度 - 配合 | 0.450" (11.43mm) | 接触镀层厚度 | 20µin (0.51µm) |
产品信息
| 类型 | Wire to Board | 连接器性别 | HDR |
| 系列 | 41791 | CAD图纸 | 3D CAD Model |
| 产品子类型 | Headers | 加载位置数 | All |
