点击放大查看

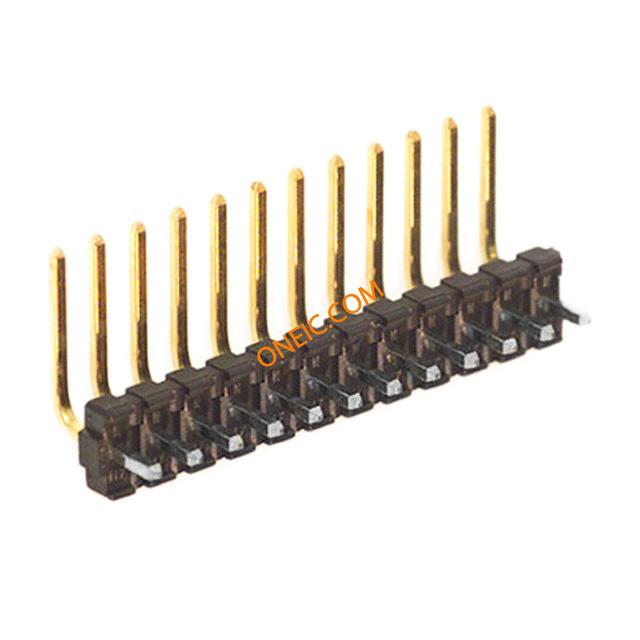

0026482122
| 制造商 | Molex, LLC |
| 描述 | Conn Unshrouded Header HDR 12 POS 3.96mm Solder RA Thru-Hole Bag CONN HEADER 12POS .156 R/A GOLD |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
机械参数
| 颜色 | Black | 间距 | 3.96 mm |
| 包装方式 | Bulk | 端接方式 | Solder |
| 触头类型 | Male Pin | 安装类型 | Through Hole, Right Angle |
| 连接器类型 | Header, Unshrouded, Breakaway | 接触镀层 | Gold |
| 排数 | 1 | 触点数 | 12 |
| 位数 | 12 | 接触长度 - 配合 | 0.573" (14.55mm) |
| 接触镀层厚度 | 20µin (0.51µm) | ||
产品信息
| 类型 | Unshrouded Header | 连接器性别 | HDR |
| 加载位置数 | All | ||
