点击放大查看

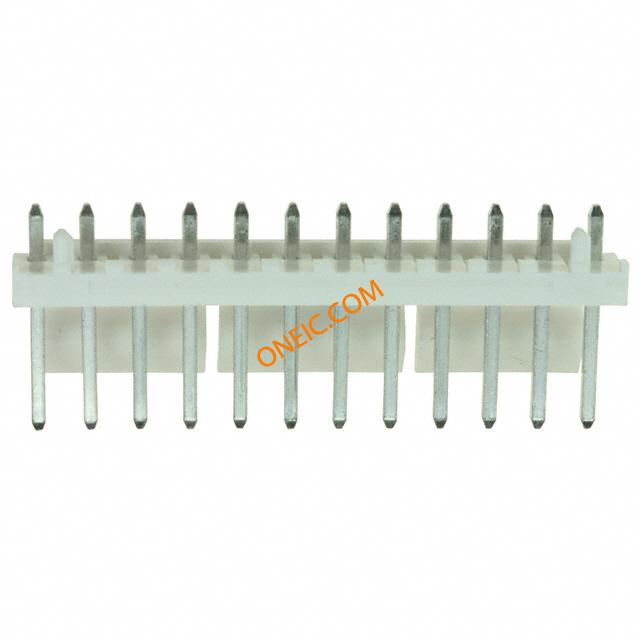

0026644120
| 制造商 | Molex, LLC |
| 描述 | Conn Wire to Board HDR 12 POS 3.96mm Solder ST Thru-Hole Bag CONN HEADER 12POS .156 VERT TIN |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
机械参数
| 颜色 | Natural | 间距 | 3.96 mm |
| 包装方式 | Bulk | 端接方式 | Solder |
| 触头类型 | Male Pin | 安装类型 | Through Hole |
| 连接器类型 | Header, Unshrouded | 接触镀层 | Tin Over Copper |
| 紧固类型 | Friction Lock | 排数 | 1 |
| 触点数 | 12 | 位数 | 12 |
| 接触长度 - 配合 | 0.450" (11.43mm) | 接触镀层厚度 | 60µin (1.52µm) |
产品信息
| 类型 | Wire to Board | 连接器性别 | HDR |
| 产品特性 | Board Guide | 加载位置数 | All |
文档与媒体
