点击放大查看

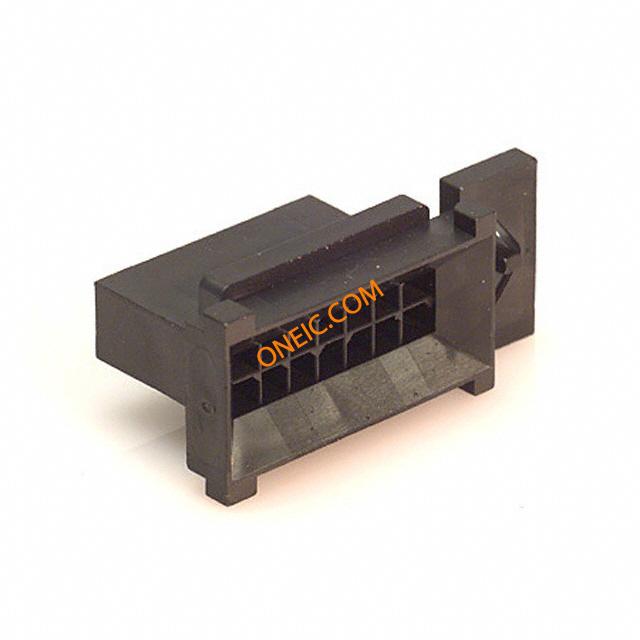

44300-1400
| 制造商 | Molex, LLC |
| 描述 | CONN PLUG 14POS 3MM DUAL ROW Microfit 3.0 BMI Panel Mount Plug 14w Headers & Wire Housings 3MM MICRO-FIT Plug House 14 CKT Molex Micro-Fit BMI 系列 2 行 3mm 节距 14 路 直 公 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | Micro-Fit 3.0 | 零件号别名 | 0443001400 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 1 |
| 工厂包装数量 | 756 | ||
合规参数
| RoHS | Compliant | ||
电气参数
| 最大额定电流 | 5 A | 连接器类型 - 电压输入 | Male |
机械参数
| 颜色 | Black | 深度 | 19.1mm |
| 间距 | 0.118" (3.00mm) | 宽度 | 16.2mm |
| 长度 | 37.84mm | 包装方式 | Bulk |
| 方向 | 直 | 排间距 | 0.118" (3.00mm) |
| 触头类型 | Male Pin | 安装类型 | Panel Mount |
| 连接器类型 | Plug | 排数 | 2 |
| 壳体材料 | PET | 触点数 | 14 |
| 接触件端接 | Crimp | 位数 | 14 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Plug Housing |
| 连接器性别 | Male | 系列 | 44300 |
| CAD图纸 | 3D CAD Model | 产品子类型 | Wire Housings |
| 基础产品编号 | 44300 | 应用细节 | Power, Wire-to-Wire, Wire-to-Board |
| 适用产品/相关产品 | Micro-Fit 3.0 BMI Plug | ||
