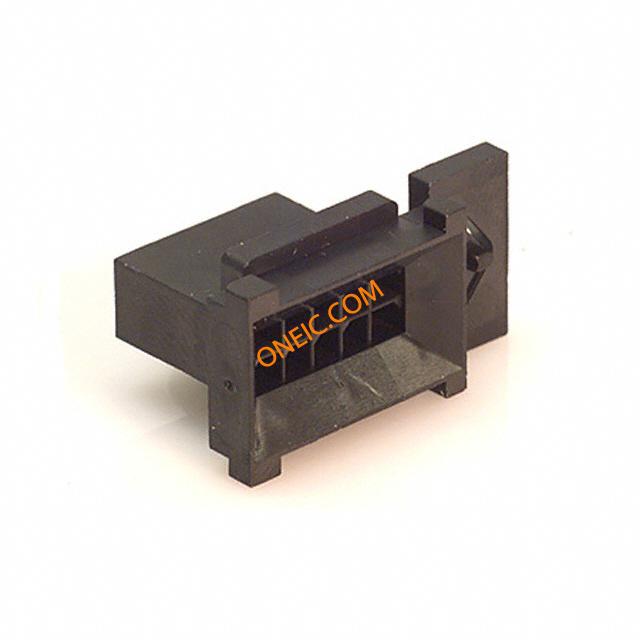

44300-1000
| 制造商 | Molex, LLC |
| 描述 | CONN PLUG 10POS 3MM DUAL ROW Microfit 3.0 BMI Panel Mount Plug 10w Headers & Wire Housings 3MM MICRO-FIT Plug House 10 CKT Conn Housing PL 10 POS 3mm Crimp ST Bag MICROFIT3.0BMIPANELMOUNTPLUG10CKT Crimp housing Pitch3 mm Poles 2 x 5 Micro-Fit BMI, 44300-1000, Molex Molex Micro-Fit BMI 系列 2 行 3mm 节距 10 路 直 公 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | Micro-Fit 3.0 | 零件号别名 | 0443001000 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 1 |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | Compliant | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 额定电压 | 250 | 极数 | 2 x 5 |
| 最大额定电流 | 5 A | 连接器类型 - 电压输入 | Male |
机械参数
| 颜色 | Black | 深度 | 19.1mm |
| 间距 | 0.118" (3.00mm) | 宽度 | 16.2mm |
| 长度 | 31.84mm | 包装方式 | Bulk |
| 方向 | 直 | 排间距 | 0.118" (3.00mm) |
| 触头类型 | Male Pin | 安装类型 | Panel Mount |
| 连接器类型 | Plug | 排数 | 2 |
| 壳体材料 | PET | 触点数 | 10 |
| 接触件端接 | Crimp | 位数 | 10 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Plug Housing |
| 连接器性别 | Male | 系列 | 44300 |
| CAD图纸 | 3D CAD Model | 产品子类型 | Wire Housings |
| 连接方式 | Wire-Board | 基础产品编号 | 44300 |
| 应用细节 | Power, Wire-to-Wire, Wire-to-Board | 适用产品/相关产品 | Micro-Fit 3.0 BMI Plug |
环境参数
| 工作温度 | -40...+105 °C | ||
文档与媒体
相关型号
0430310012
molex
Contact M Crimp ST Cable Mount Bag Contact PIN Crimp ST Cable Mount Bag CONN TERM MALE 26-30AWG GOLD
0430310002
molex
Contact PIN Crimp ST Cable Mount Reel CONN TERM MALE 20-24AWG GOLD Conn Contact M 1 POS Crimp ST Cable Mount Reel Contact; male; 0.205÷0.519mm2; 20÷24AWG; Micro-Fit 3.0; crimped
0430310007
molex
Contact M Crimp ST Cable Mount Bag Contact PIN Crimp ST Cable Mount Bag CONN TERM MALE 20-24AWG TIN Contact; male; 0.205÷0.519mm2; 20÷24AWG; Micro-Fit 3.0; tinned
0430310011
Molex, LLC
. 0430310011 - Pin Contact Gold 26-30 AWG Crimp Power from Molex. from now!
0447691003
Molex, LLC
. 0447691003 - 10 Position Receptacle Connector 0.118" (3.00mm) Through Hole Gold from Molex. from now!
0430310001
Molex, LLC
. 0430310001 - Pin Contact Tin 20-24 AWG Crimp Power from Molex. from now!
0430310008
Molex, LLC
. 0430310008 - Pin Contact Gold 20-24 AWG Crimp Power from Molex. from now!
0430310009
molex
Contact PIN Crimp ST Cable Mount Bag CONN TERM MALE 20-24AWG GOLD Conn Contact M 1 POS Crimp ST Cable Mount Bag
0447641003
Molex
Conn Wire to Board RCP 10 POS 3mm Solder RA Thru-Hole Tray MICROFIT (3.0) BMI RA HDR/FEM
0430310003
Molex, LLC
. 0430310003 - Pin Contact Gold 20-24 AWG Crimp Power from Molex. from now!
0441331000
Molex
Conn Housing RCP 10 POS 3mm Crimp ST Tray CONN RECEPT 10POS 3MM DUAL ROW
0430310010
Molex
Contact PIN Crimp ST Cable Mount Bag CONN TERM MALE 26-30AWG TIN
0430310004
Molex, LLC
. 0430310004 - Pin Contact Tin 26-30 AWG Crimp Power from Molex. from now!

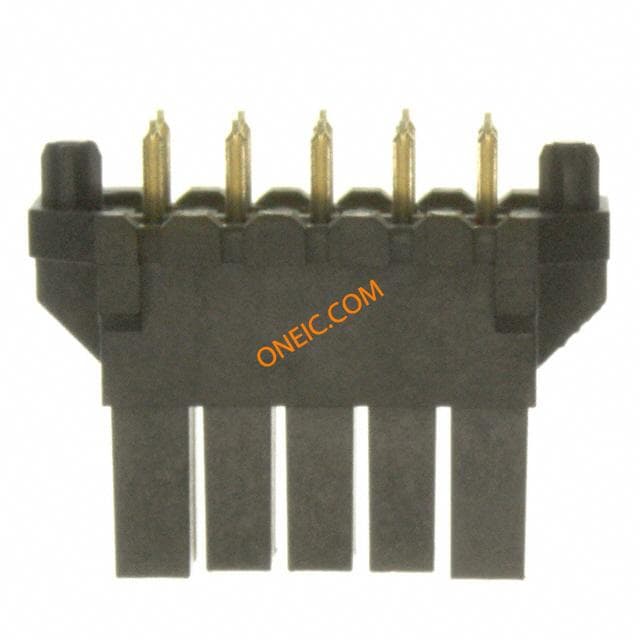

0447691001
Molex
Conn Wire to Board RCP 10 POS 3mm Solder ST Thru-Hole Tray CONN HDR RCPT 10POS VERT TIN PCB

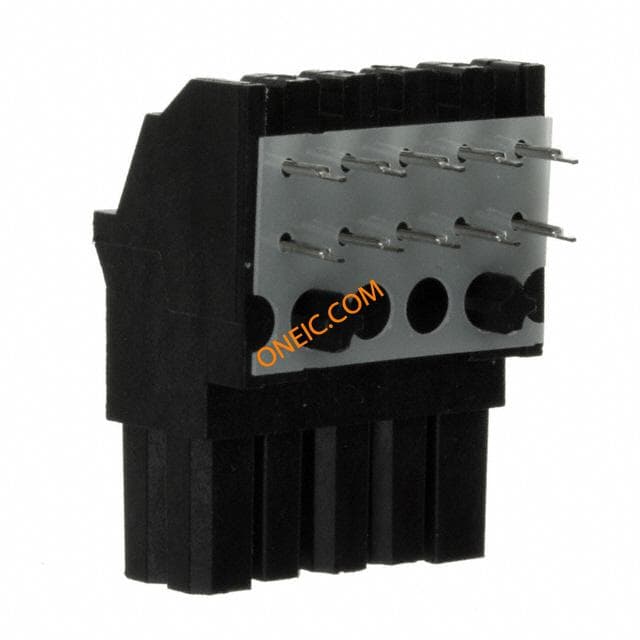

44764-1001
Molex Connector Corporation
CONN HEADER 10POS 3MM R/A TIN Headers & Wire Housings R.A. RECPT 10P tin w/friction pegs Conn Wire to Board RCP 10 POS 3mm Solder RA Thru-Hole Tray

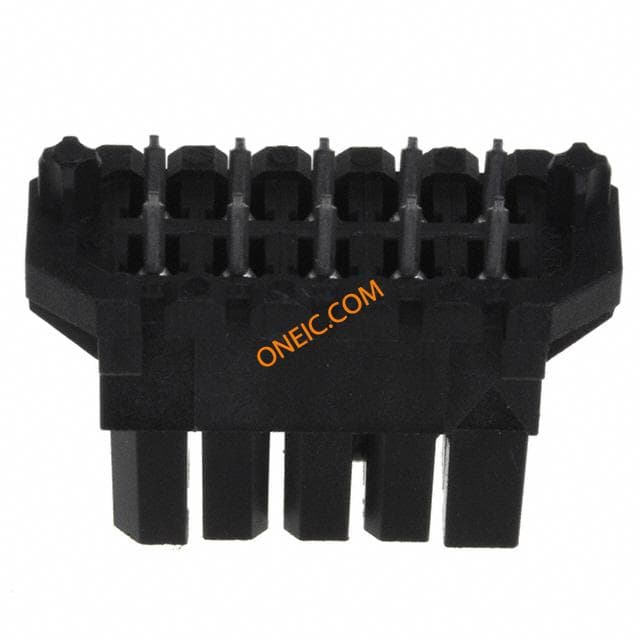

44769-1002
Molex Connector Corporation
CONN HDR RCPT 10POS 3MM VERT PCB Headers & Wire Housings VERT RECPT 10P gold w/friction pegs Conn Wire to Board RCP 10 POS 3mm Solder ST Thru-Hole Tray

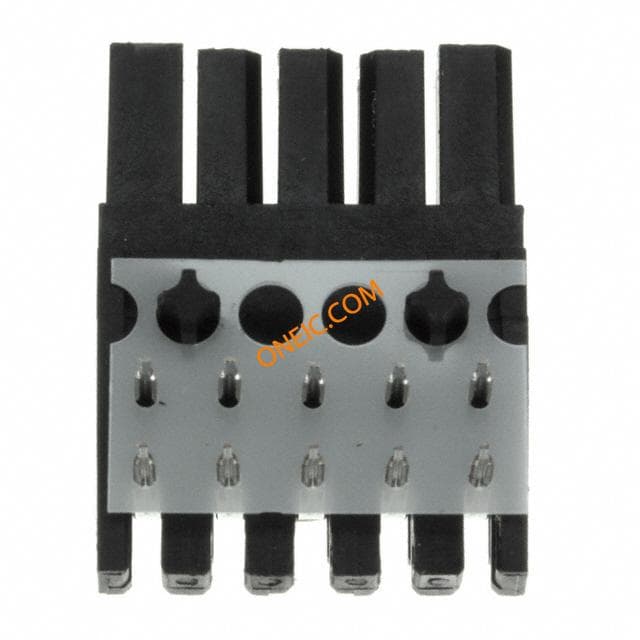

44764-1002
