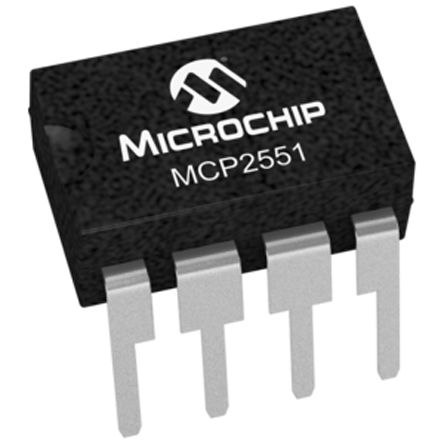

MCP2551-I/P
| 制造商 | Microchip Technology Inc. |
| 描述 | CAN 1Mbps Sleep/Standby 5V Industrial 8-Pin PDIP Tube Network Controller & Processor ICs Hi Spd CAN Transceiv IC TRANSCEIVER CAN HI-SPD 8-DIP CAN Transceiver 1Mbit/s ISO 11898, Sleep, Standby-Mode, 8-Pin PDIP IC, CAN TRANSCEIVER, DIP8, 2551 HIGHSPEEDCANTRANSCEIVER Integrated circuit: transceiver CAN; Channels:1; 1Mbps; DIP8 Transceiver IC CAN High Speed DIL-8, MCP2551-I/P, Microchip Microchip 1MBps CAN 收发器, 支持ISO 11898标准, 睡眠，待机断电, 8针 PDIP封装 CAN Interface IC Hi Spd CAN Transceiv |
| 分类 |
商业参数
| 产品 | Controller Area Network (CAN) | 其他名称 | MCP2551IP |
| 产品类别 | Network Controller & Processor ICs | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 60 | 标准封装名称 | PDIP |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 标准 | ISO 11898 |
| 海关税号 | 85423190 | 抗辐射加固 | No |
电气参数
| 数据速率 | 1 Mbps | 接口 | :CAN, Serial |
| I/O 数量 | :4 | 额定电压 | 4.5 V |
| 数据速率（最大） | 1 Mbps | 输出电流 | 75 mA |
| 供电电流 | 75 mA | 驱动电路 | :CAN Transceiver |
| 中断输出 | :0 | 供电电压 | 4.5 V |
| 通道数量 | 1 | 元件数量 | :1 |
| 接收器迟滞 | 200mV | 最小供电电压 | 5.5 V |
| 共模瞬态抗扰度（最小） | Industrial | ||
机械参数
| 宽度 | 6.35mm | 高度 | 3.3mm |
| 长度 | 9.27mm | 重量 | 0.000833 |
| 包装方式 | Tube | 引脚样式 | Through Hole |
| 端接方式 | :Through Hole | 安装类型 | Through Hole |
| 安装样式 | Through Hole | 引脚数 | :8 |
| 封装形式 | 8PDIP | 冷却的封装 | PDIP |
| 材料表面处理 | :- | 总长度 | 9.27 |
| 包装数量 | PDIP | 尺寸/外形 | 9.27 x 6.35 x 3.3mm |
| 位数 | 8 | 外壳尺寸-插件 | 3.3 |
| 供应商器件封装 | 8-PDIP | ||
产品信息
| SPG | 60 | 类型 | Transceiver |
| 双工模式 | Half | 已删除 | Compliant |
| 功能 | :High Speed CAN Transceiver | 协议 | CAN |
| 关断 | Sleep|Standby | 基本单元 | :2551 |
| 通信接口 | :CAN Transceiver | 单元数量 | 1 |
| 叠层数 | :1 | 控制接口 | :CAN |
| 驱动器数量 | :1 | 滤波器数量 | :0 |
| 接收器数量 | :1 | 宏单元数量 | :0 |
| 印刷电路板数量 | 8 | 驱动器/接收器数量 | 1/1 |
| 发射器/接收器数量 | 1 | ||
环境参数
| 工作温度 | + 85 C | 结工作温度 | 85C |
