点击放大查看

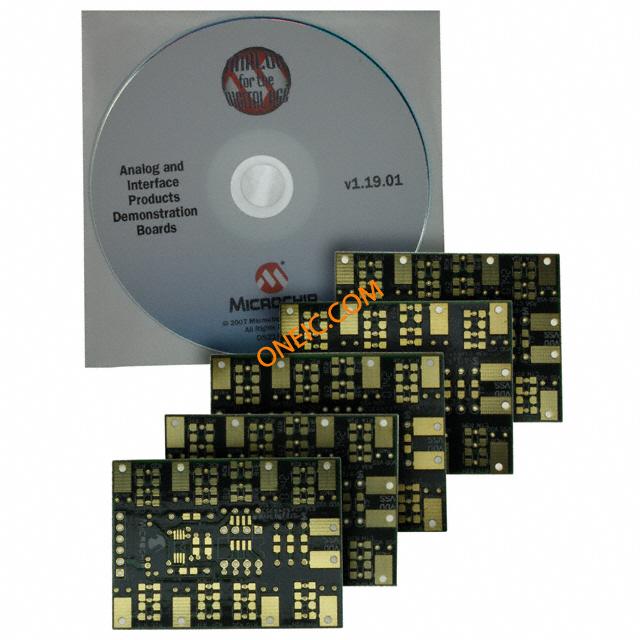

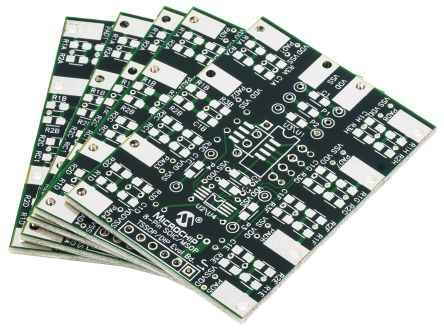

SOIC8EV
| 制造商 | Microchip Technology Inc. |
| 描述 | Evaluation Board For 8Pin SOIC/MSOP/TSSOP/DIP Evaluation Board Daughter Cards & OEM Boards 8-Pin EVAL BRD EvalBoard SOIC, MSOP, T BOARD DEMO 8SOIC/MSOP/TSSOP/DIP SOIC8EV, Development Kit, 8 bit, PIC, Evaluation Board for the 8-pin Devices EVAL BOARD, SOIC, MSOP, TSSOP, DIP Microchip 8 位 MCU 处理器和微控制器开发套件 EvalBoard SO8 MSOP8 TSSOP8 DIP8 |
| 分类 |
商业参数
| 最小起订量 | 1 | 产品 | Bare PC Boards |
| 单位包装 | 1 | 产品类别 | Daughter Cards & OEM Boards |
| 标准包装数量 | Boxed | 工厂包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85423190 | 汽车级 | NO |
| 无铅定义 | RoHS-conform | ||
电气参数
| 核心类型 | PIC | 元件数量 | :(Not Applicable) |
机械参数
| 重量 | 0.18 | 封装形式 | EvalBoard |
产品信息
| 类型 | Development Kit | 内容 | 3 Bare Boards, CD |
| 嵌入式 | No | 产品特性 | :Footprint for Optional Device, Power Supply Filtering Capacitors, PCB Pads to Connect to Each Device |
| 功能 | Blank PCB that allows the operation of Microchip Technology?s 8 pin devices to be easily evaluated | 套件类型 | :(Not Available) |
| 基本单元 | :8 | 匹配码 | SOIC8EV |
| 技术 | 8 bit | 套件内容 | Evaluation Board for the 8-pin Devices |
| 主要用途 | Bare Evaluation Board | 卡标准 | Development Kit |
| 标准交期 | 20 weeks | 工具类型/特性 | :Evaluation Board |
| 主要特性 | 8- Pin SOIC/DIP/TSSOP/MSOP Evaluation Board | 芯片组制造商 | :Microchip |
| 次要特性 | For PICmicro® MCUs, ADCs, DACs and other Devices | 应用细节 | :- |
| 支持MCU系列 | :MCP651 | 适用产品/相关产品 | DIP, MSOP, SOIC, TSSOP 8 pin devices |
