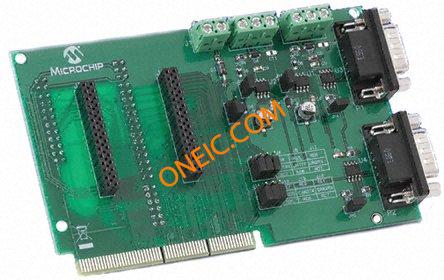

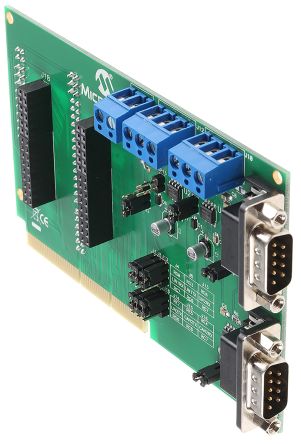

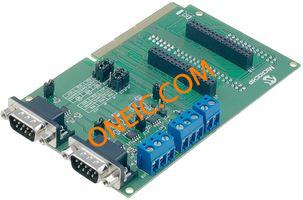

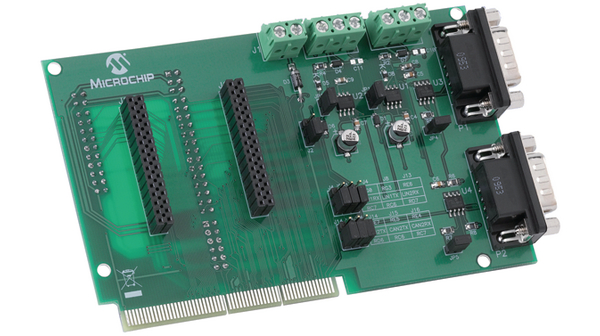

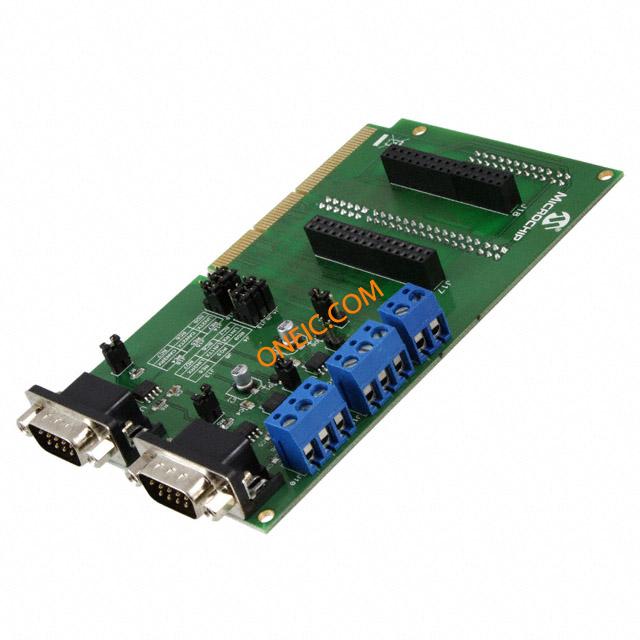

AC164130-2
| 制造商 | Microchip Technology Inc. |
| 描述 | ECAN/LIN PICTAIL PLUS DAUGHTER BOARD CAN/LIN PICTAIL (PLUS) DAUGHTER BOARD Daughter Cards & OEM Boards CAN/LIN PICtail Plus Daughter Board ECAN/LIN PICtail Plus DaughterB DAUGHTER BOARD CAN/LIN PICTAIL ECAN/LIN PICtail Plus Daughter Board PICTAIL, CAN, LIN, DAUGHTER BOARD Expansion board; Interface: CAN, LIN CAN/LIN PICtail Plus Daughter Board Stand-alone mode 9 V, AC164130-2, Microchip Microchip PICtail Plus CAN 总线、LIN 总线接口 子板, 使用于 Explorer 16 开发板 |
| 分类 |
商业参数
| 最小起订量 | 3 | 产品 | Daughter Cards |
| 单位包装 | 1 | 其他名称 | AC1641302 |
| 标准包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85423190 | 无铅定义 | RoHS-conform |
机械参数
| 重量 | 0.25 | 连接器类型 | PICtail Plus |
| 包装数量 | 1 | ||
产品信息
| SPG | 1 | 内容 | Board |
| 嵌入式 | No | 产品特性 | :Two CAN Communication Channels Interfacing to ECAN Module |
| 功能 | CAN/LIN PICtail Plus daughterboard | 套件类型 | :Communication & Networking |
| 匹配码 | AC164130-2 | 技术 | CAN, LIN |
| 套件内容 | :- | 主要用途 | Interface, CAN, ECAN LIN |
| 卡标准 | Module | 附件类型 | expansion board |
| 开发套件 | EVALBOARD | 单元数量 | 1 |
| 关联项目 | DM183032, EXPLORER-16 | 标准交期 | 6 weeks |
| 工具类型/特性 | PIC18 | 主要特性 | 2 CAN and 2 LIN Transceivers, 4 Socketed IC's |
| 使用的IC/零件 | MCP2021, MCP2551 | 芯片组制造商 | :Microchip |
| 次要特性 | Requires Explorer 16 Board | 适用产品/相关产品 | DM183032, DM240001 |
