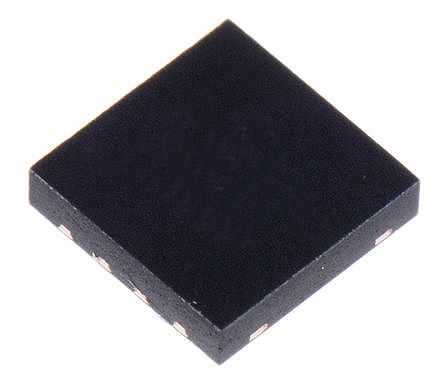

点击放大查看
MCP2021-500E/MD
| 制造商 | Microchip Technology Inc. |
| 描述 | LIN Transceiver 1TX 1RX 20KBd 8-Pin DFN EP LIN 1T/1R 12V 0,02Mb/s DFN8 SMD IC LIN TXRX ON-BOARD VREG 8DFN LIN Transceivers LIN ver 21 Trnsceivr w/ on-brd 5V Vreg Microchip 20kBd LIN 收发器, 支持SAE J2602标准, 睡眠断电, 8针 DFN封装 |
| 分类 |
商业参数
| 最小起订量 | 364 | 单位包装 | 91 |
| 产品类别 | LIN Transceivers | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 91 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | RoHS-conform |
电气参数
| 数据速率 | 0.02Mb/s | 数据速率（最大） | 20 KBd |
| 输出电流 | 1 mA | 供电电流 | 1 mA |
| 供电电压 | 6 V | 供电类型 | Single |
| 接收器迟滞 | 175mV | 最小输入电压 | 6V |
机械参数
| 包装方式 | Tube | 安装类型 | SMD |
| 安装样式 | SMD/SMT | 封装形式 | 8DFN EP |
| 顶部端接 | 125°C | 最小工作高度 | -40°C |
| 供应商器件封装 | 8-DFN (4x4) | ||
产品信息
| 类型 | LIN Transceiver | 双工模式 | Half |
| 协议 | LIN 1.3|LIN 2.0|LIN 2.1|SAE J2602 | 匹配码 | MCP2021-500E/MD |
| 标准交期 | 14 weeks | 接收器数量 | 1 |
| 发射器数量 | 1 | 驱动器/接收器数量 | 1/1 |
环境参数
| 工作温度 | -40°C ~ 125°C | ||
